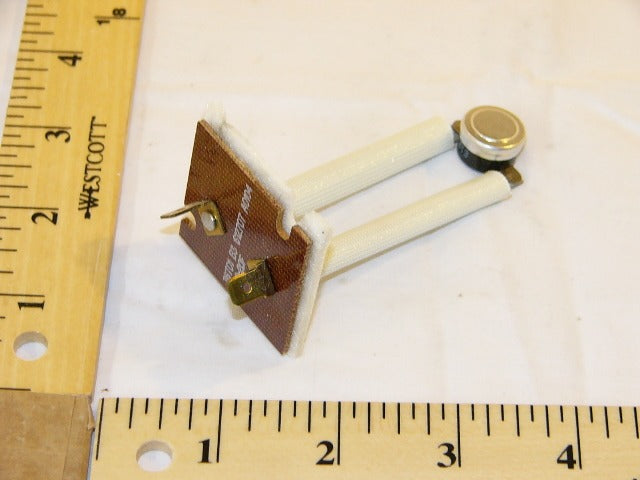

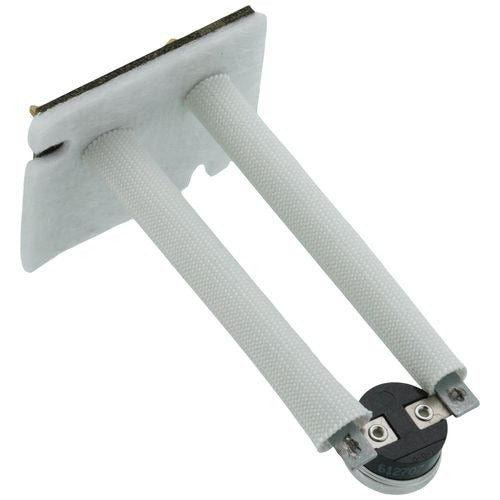

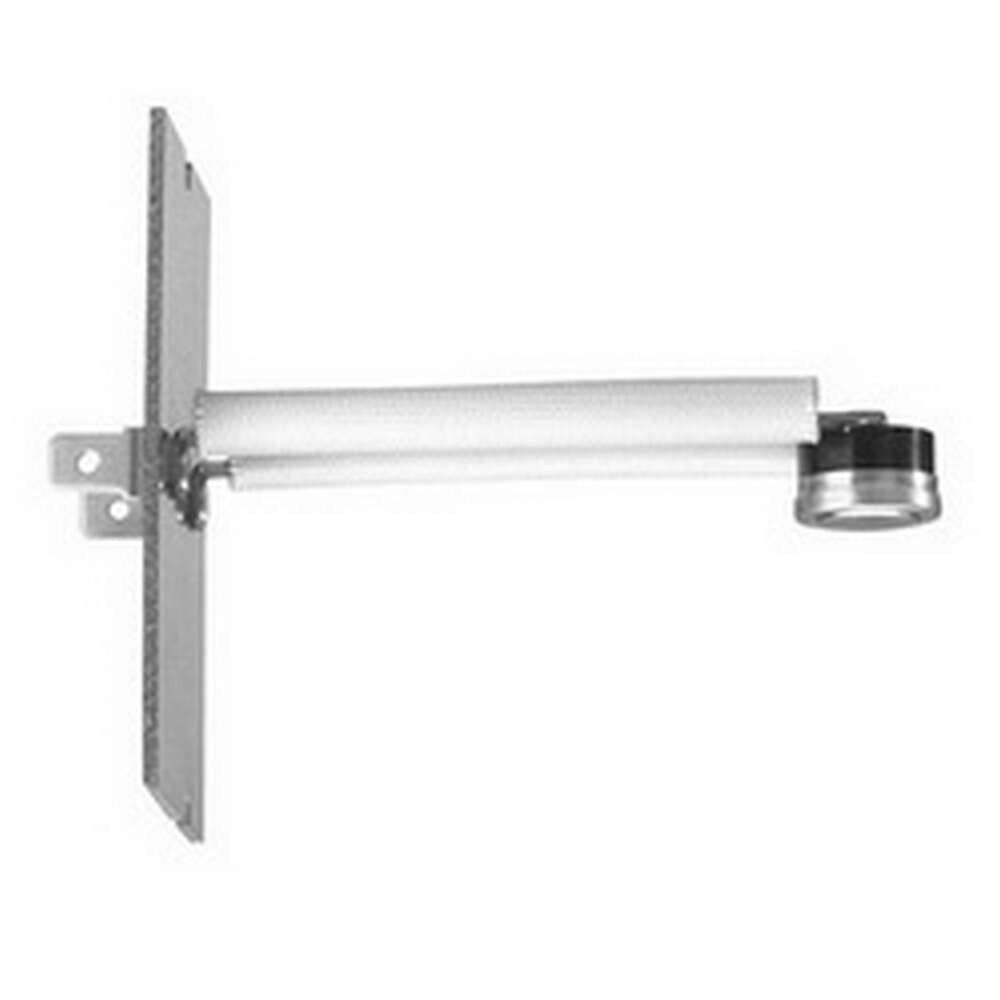

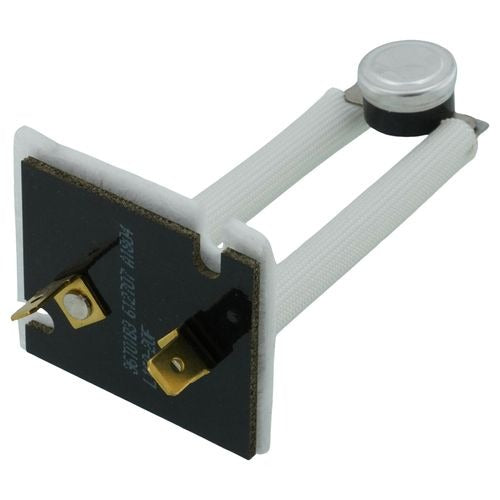

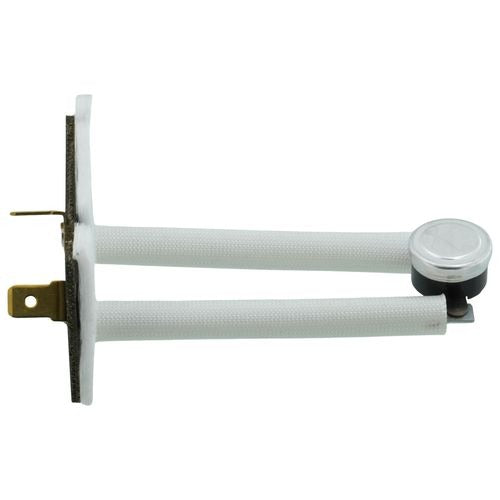

White-Rodgers 3L09-22 Bimetal Disc Board Mount Limit Control 3.12 in

Product Description

White-Rodgers 3L09-22 is a bimetal disc board-mount limit control that opens at 160 F and closes at 140 F. The device features a 1/2 in bimetal disc with high-speed contact separation, a 3.12 in insertion length, and 1/4 in spade terminals. It is rated for 120/240/277 VAC, configured as Therm-O-Disc style 612707 Type 36T, provides automatic reset operation and opens on rise for temperature limit protection in HVAC and refrigeration systems.

• Opens at 160 F and closes at 140 F; open-on-rise switch action with automatic reset
• Rated for 120/240/277 VAC; 1/2 in bimetal disc with high-speed contact separation
• Board-mount design with 3.12 in insertion length and 1/4 in spade terminals; Therm-O-Disc style 612707, Type 36T

Product Highlights

Board-mount temperature limit control for HVAC and refrigeration with 1/2 in bimetal disc, 160 F open / 140 F close, 3.12 in insertion, and 120/240/277 VAC rating.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L09-22
• Country of Origin: Mexico
