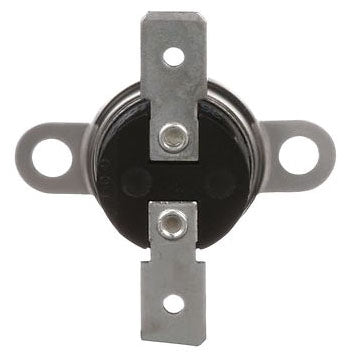

White Rodgers 3L03-190 Snap Disc Fan Limit Control 120/240/277 VAC SPDT

Product Description

The White Rodgers 3L03-190 Snap Disc Fan Limit Control is engineered for efficient temperature regulation in HVAC systems. This high-quality limit control features a snap disc design that operates with a single-pole double-throw (SPDT) switch, opening on rise. It ensures reliable operation with a cut-in temperature of 170 degrees Fahrenheit and a cut-out at 190 degrees Fahrenheit. Primarily used in fan and blower applications, it aims to maintain a preset temperature threshold, enhancing system safety and efficiency.

• SPDT configuration ensures versatile connectivity and control options.
• Durable construction with aluminum disc and stainless-steel mounting brackets.
• Automatic reset feature provides continuous operation without manual intervention.

Product Highlights

Offering a comprehensive solution for HVAC temperature management, the White Rodgers 3L03-190 integrates automatic and manual reset options suited for various fan and blower systems. Its robust design guarantees longevity and consistent performance.

Product Information

Standard Information

• Manufacturer: White Rodgers
• Model: 3L03-190

Technical Specifications

• Voltage Rating: 120/240/277 Volt AC
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC
• Temperature Range: 170°F Cut-In, 190°F Cut-Out
• Approval: UL, CSA, VDE
• Mounting Type: Flanged Airstream
• Switch Type: SPDT, Open on Rise
• Terminal Type: 1/4 Inch Quick-Connect
