White-Rodgers 3L02-170 Limit Control Thermostat 170 Deg F

Product Description

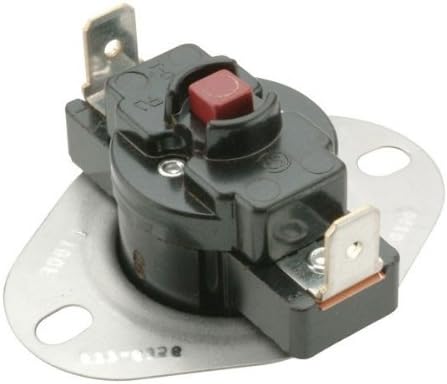

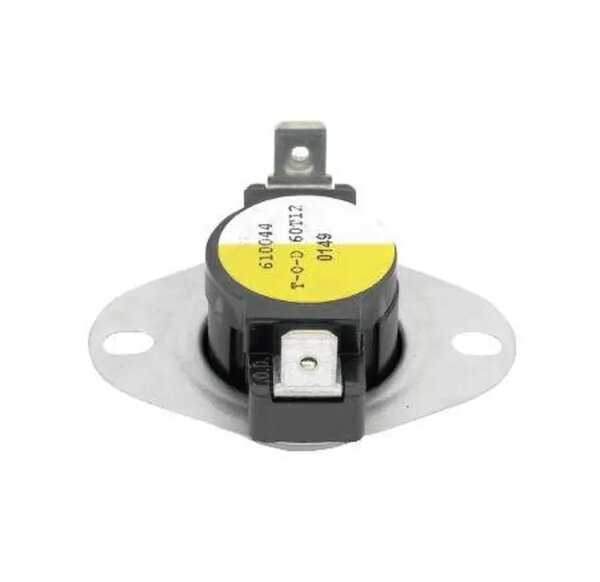

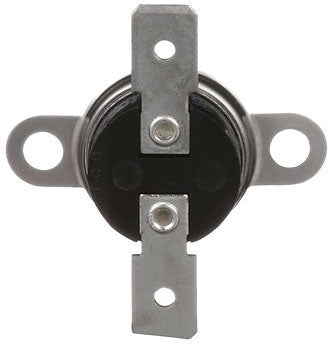

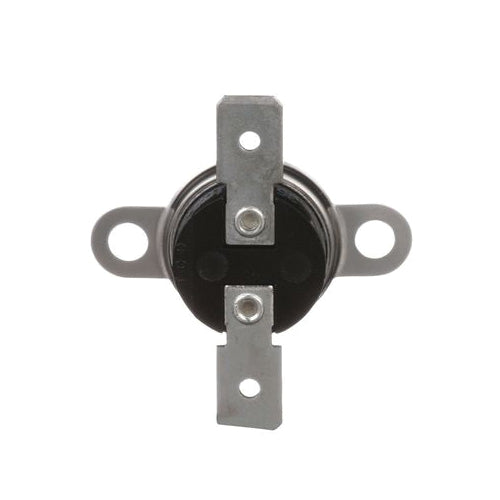

The WHITE-RODGERS 3L02-170 Limit Control Thermostat is a snap disc type with manual reset and fixed temperature. It is designed for regulation of fan, blower, or high limit safety control in HVAC systems. The thermostat features a SPST switch that opens on rise and has a temperature rating of 170 Deg F (Cut-Out), Manual (Cut-In).

• Snap Disc Size 3/4 Inch
• Terminal Type 1/4 Inch Quick-Connect
• Used On Regulation of Fan, Blower/High Limit Safety Control, HVAC

Product Highlights

This limit control thermostat ensures safety and efficiency in systems requiring accurate temperature regulation, especially in HVAC applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L02-170
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: 3L02-170
• Type: Snap Disc, Manual Reset, Fixed Temperature
• Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
• Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC/21.6 Amp at 277 Volt AC Resistive (Non-Inductive)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Switch Type: SPST, Open on Rise
• Temperature Rating: 170 Deg F (Cut-Out), Manual (Cut-In)
• Brand: WHITE-RODGERS
• Additional Information: Snap Disc Size 3/4 Inch; Terminal Type 1/4 Inch Quick-Connect; Material Aluminum (Disc Cup), Stainless Steel (Mounting Bracket); Therm-O-Disc Type 330535; Used On Regulation of Fan, Blower/High Limit Safety Control, HVAC
• Series: 3L02
• Contact Form: SPST
• Mounting Type: Airstream
• Switch Action: Open on Rise
• Inductive Rating: 10/60 A at 120 VAC, 0.5/30 A at 240 VAC
• Resistive Rating: 25 A at 120/240 VAC
• Pilot Duty Rating: 125 VA
• Electrical Connections: Quick-Connect
• Maximum Control Temperature: 350 °F
• Wire Connections: Quick Connect
• Terminal Size: 1/4 in
• Standards: CSA Certified; UL Listed; VDE
