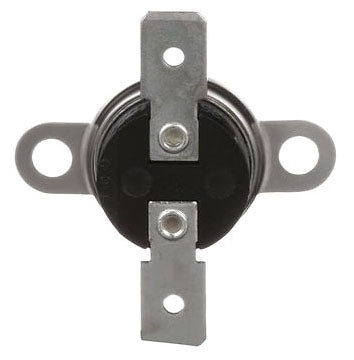

White-Rodgers 3L01-350 120/240/277 VAC Automatic Reset Snap Disc Fan Limit

Product Description

The White-Rodgers 3L01-350 is a snap disc fan limit control designed for HVAC systems. This component operates at 120/240/277 VAC and provides automatic reset functionality. Its temperature ratings include a cut-in temperature of 310 degrees Fahrenheit and a cut-out temperature of 350 degrees Fahrenheit.

• Temperature Ratings: 310 F Cut-In, 350 F Cut-Out
• Electrical Ratings: 10 A Full Load, 25 A Resistive
• Material: Aluminum Disc, Stainless Steel Mounting Bracket

Product Highlights

This snap disc control is ideal for regulating fan operation and high limit safety controls. Its simple installation makes it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 3L01-350

Technical Specifications

• Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Switch Type: SPST, Close on Rise
• Temperature Rating: 310 Deg F (Cut-In), 350 Deg F (Cut-Out)
• Approval: UL, CSA, VDE
• Disc Size: 3/4 Inch
• Terminal Type: 1/4 Inch Quick-Connect
