Product Description

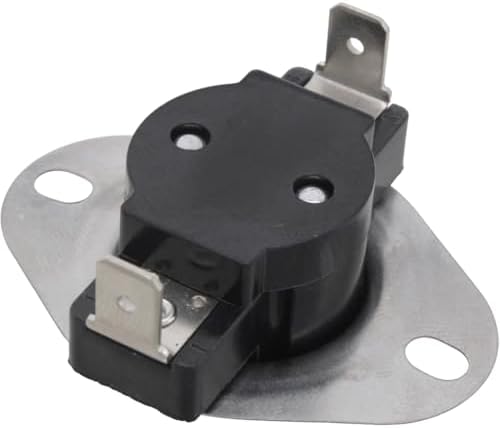

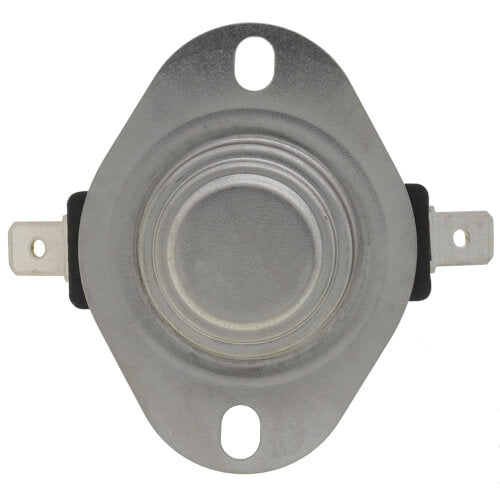

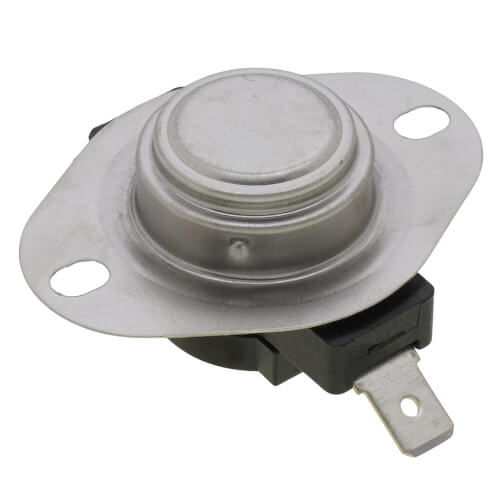

The WHITE-RODGERS 3L01-130 snap disc fan control thermostat is an automatic reset type designed for regulation of fan, blower, and high limit safety control. It is suitable for appliance and HVAC applications. The thermostat features a SPST switch that closes on rise. It has a 3/4 Inch disc and 1/4 Inch quick-connect terminals.
- Features a loose ring and stainless steel mounting brackets
- Equipped with a 1/4 Inch quick-connect terminal
- Includes an aluminum disc cup
Product Highlights
This snap disc fan control thermostat is designed for quick on-job replacement with mounting holes that match standard 3/4" snap discs.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3L01-130
-
Country of Origin: United States
Technical Specifications
-
Type: Automatic Reset
-
Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
-
Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
-
Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
-
Switch Type: SPST, Close on Rise
-
Temperature Rating: 115 Deg F (Cut-In), 130 Deg F (Cut-Out)
-
Size: 3/4 Inch Disc
-
Terminal Type: 1/4 Inch Quick-Connect
-
Material: Aluminum (Disc Cup), Stainless Steel (Mounting Bracket)
-

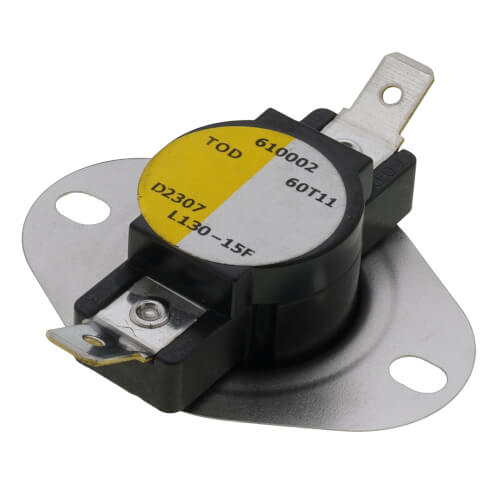

Therm-O-Disc Type: 60T11
-
Application: Cooling Controls
-
Reset Type: Automatic
-
Brand: Emerson
-
Manufacturer: White-Rodgers
-
Model / MPN: 3L01-130
-
Certification: RoHS
-
Included Components: Snap disc control, tab-to-screw terminal adapters
-
Batteries Required?: No
-
Close Temperature: 115 F
-
Function: Open On Rise
-
Series: 3L01 Series
-
Cut-In Temperature: 115°F
-
Cut-Out Temperature: 130°F
-
Motor Full Load: 10A @ 120VAC
-
Full Load: 5A @ 240VAC
-
Pilot Duty Rating: 125 VA @ 277 Vac
125 VA @ 120 Vac
125 VA @ 240 Vac
-
Switch Action: Open on Rise
