Product Description

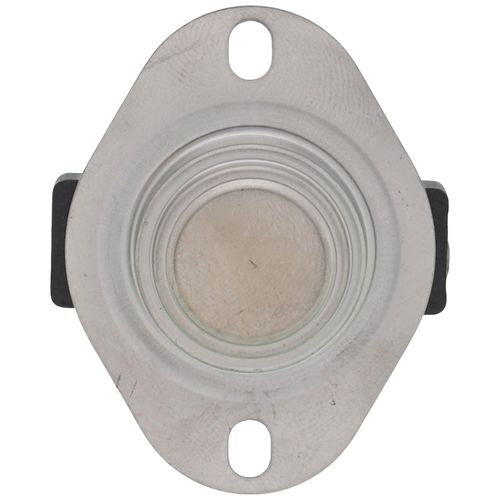

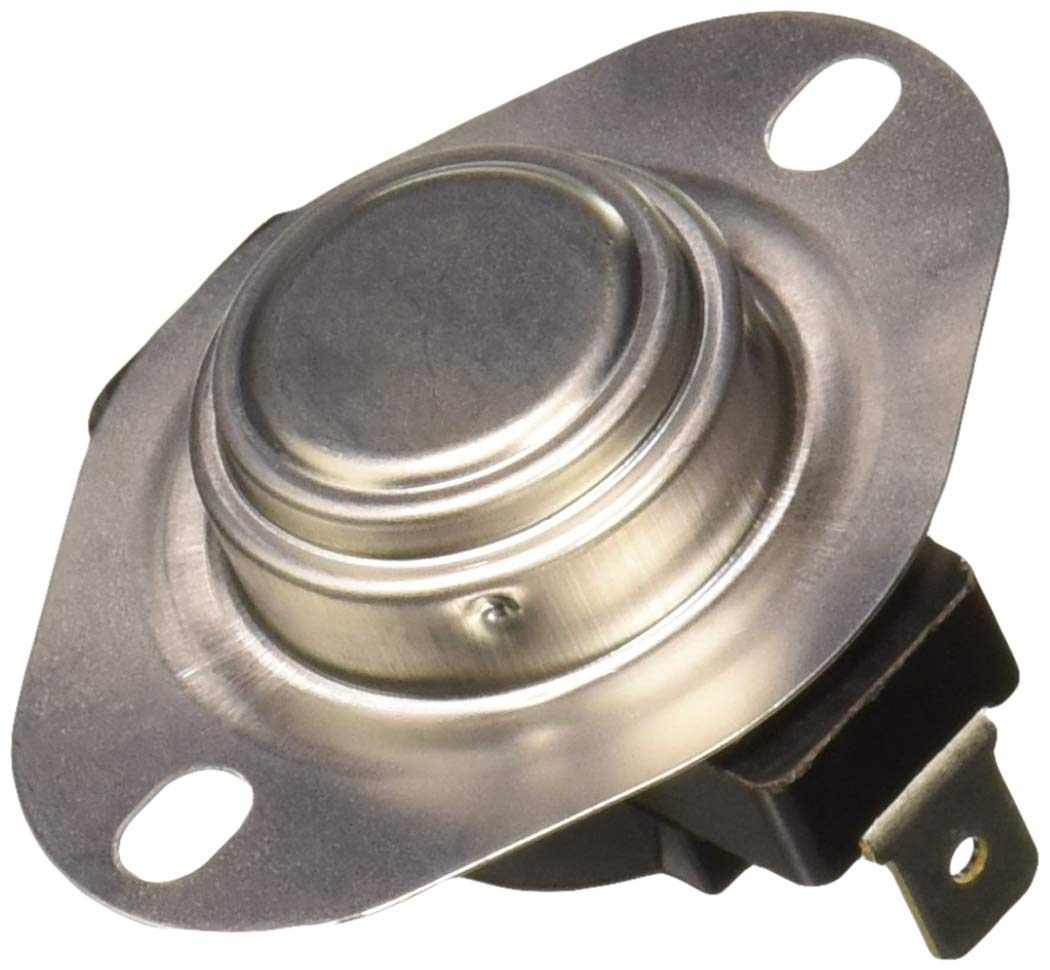

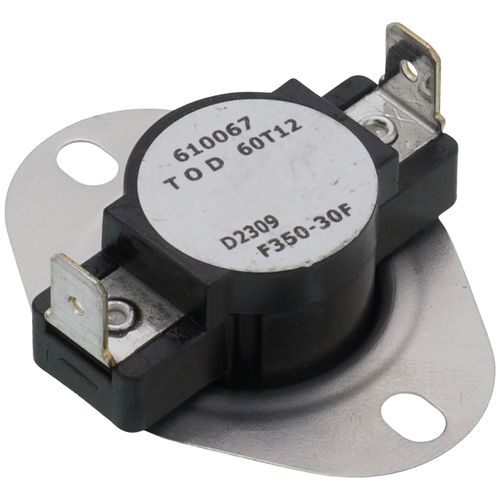

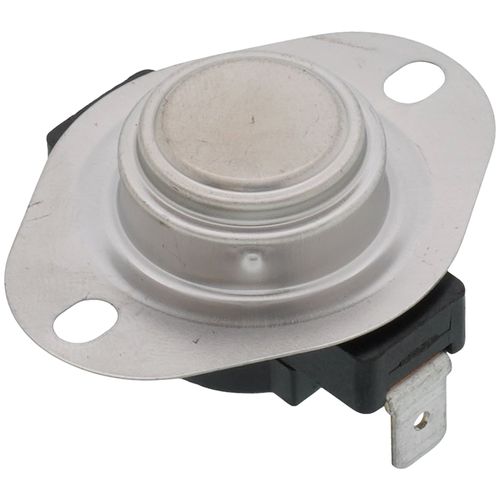

The WHITE-RODGERS 3F01-350 snap disc fan control is designed for quick on-job replacement. This SPST, close on rise control is used on regulation of fan/blower control for appliance and HVAC applications. It features mounting holes that match standard 3/4 inch snap discs.
- Designed for Quick On-Job Replacement
- Mounting holes match standard 3/4 Inch snap discs
- Terminal Type 1/4 Inch Quick-Connect
Product Highlights
The WHITE-RODGERS 3F01-350 snap disc fan control is for appliance and HVAC applications.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3F01-350
-
Country of Origin: United States
Technical Specifications
-
Item Model Number: 3F01-350
-
Type: Snap Disc, Automatic Reset
-
Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
-
Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC/21.6 Amp at 277 Volt AC (Resistive)
-
Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
-
Switch Type: SPST, Close on Rise
-
Temperature Rating: 350 Deg F (Cut-In), 320 Deg F (Cut-Out)
-
Snap Disc Size: 3/4 Inch
-
Terminal Type: 1/4 Inch Quick-Connect
-
Material: Aluminum (Disc Cup), Stainless Steel (Mounting Bracket)
-
Maximum Temperature Rating: 350 Deg F
-
Manufacturer Part Number: 3F01-350
-
Manufacturer Part Number Additional: 03F01-350S1
-
Application: Fan Control
-
Motor: 10A @ 120VAC
5A @ 240VAC
-
Features: Fixed Temperature
-
Cut-Out Temperature: 320°F
-
Cut-In Temperature: 350°F
-
Switch Action: Close on Rise
-
Pilot Duty Rating: 125 VA @ 277 Vac
125 VA @ 120 Vac
125 VA @ 240 Vac
-
Brand: White-Rodgers
-
MPN: 3F01-350
-
UPC: 786710001772
