White-Rodgers 3F01-120 Fixed Snap Disc Fan Control 350 deg F

Product Description

The White-Rodgers 3F01-120 is a fixed snap disc fan control with a close on rise switch action. This fan control has a temperature rating of 350 deg F and a pilot duty rating of 125 VA. It is designed for quick on-job replacement and used primarily for appliances and HVAC systems.

• Designed for quick on-job replacement
• Mounting holes match standard 3/4 in snap discs

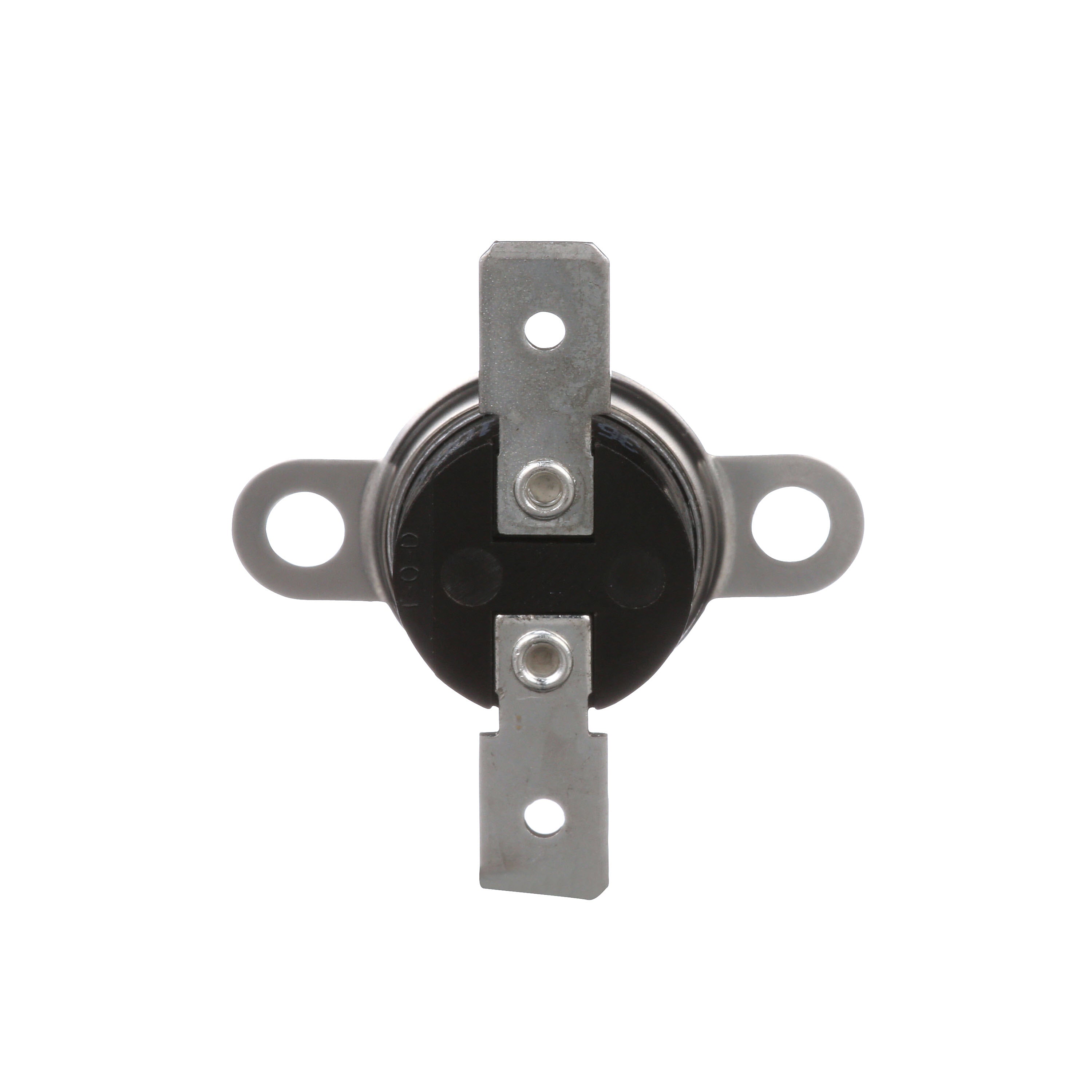

• Tab-to-screw terminal adapters furnished

Product Highlights

Fixed snap disc fan control with close on rise switch action, designed for HVAC and appliance applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3F01-120
• Country of Origin: US

Technical Specifications

• Type: Fixed
• Series: 3F01
• Switch Action: Close on Rise
• Domestic/Import: Domestic
• Inductive Rating: 5/10 A
• Resistive Rating: 25/21.6 A
• Country of Origin: US
• Manufacturer Name: Emerson Electric
• Pilot Duty Rating: 125 VA
• Temperature Rating: 350 deg F
• Cut-in Temperature: 120 deg F
• Cut-out Temperature: 110 deg F
• VA Rating: 125 VA
• Maximum Temperature: 350 deg F
• Application: Cooling Controls
• Specifications Met: CSA LR77886/LR109556, UL E19279
