White Rodgers 37E73A-922 Intelli-Vent Combined Gas Valve Ignition & Thermostat Control Replaces SW 64021

Product Description

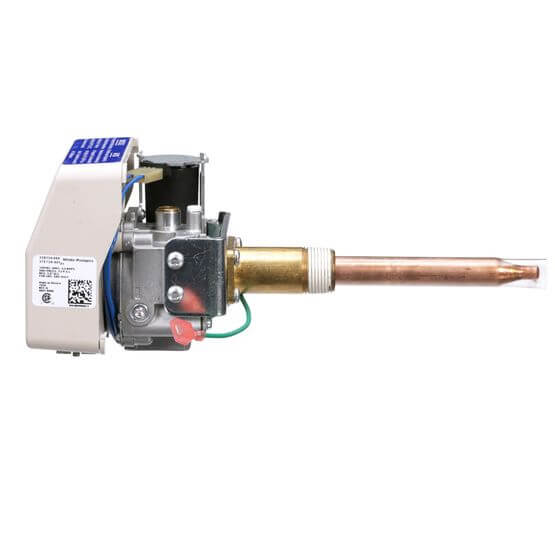

The White Rodgers 37E73A-922 is an Intelli-Vent Combined Gas Valve designed for use on power vented water heaters. This product effectively combines gas, ignition, and thermostat controls into a single unit, replacing the SW 64021 (37E73A-322).

• Integrated gas, ignition, and thermostat control
• Right angle configuration with half-inch N.P.T. inlet and half-inch inverted flare outlet
• Regulation range from twenty thousand to one hundred fifty thousand BTUs

Product Highlights

This valve features a temperature regulation range spanning from seventy degrees to one hundred sixty degrees Fahrenheit, making it suitable for various heating applications. Designed for natural gas, it includes specific pressure settings to ensure optimal operation.

Product Information

Standard Information

• Brand: White Rodgers
• Type: Gas Valve

Technical Specifications

• MPN: 37E73A-922
• Operating Voltage: 120 Vac, 60 Hz
• Amperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0
• Length: 1.72 inches
• Regulator Setting: 3.5 inches W.C. Natural Gas
• Temperature Range: 70°F - 160°F
• Max Inlet Pressure: 1/2 PSI
• Pressure Drop Capacity: 100,000 BTU/Hr.
