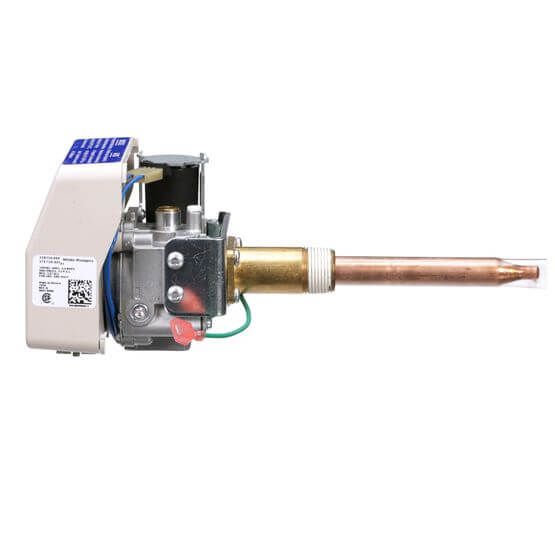

White Rodgers 37E73A-921 Intelli-Vent Combined Gas Valve, Ignition & Thermostat Control, Replaces GSW 64020121

Product Description

The White Rodgers 37E73A-921 is an Intelli-Vent Combined Gas Valve designed for use with power vented water heaters. This gas valve integrates ignition and thermostat control into a single unit, facilitating efficient operation and maintenance.

• Combines gas control, ignition, and thermostat functionalities.
• Right angle configuration with half-inch N.P.T. inlet and half-inch inverted flare outlet.
• Temperature regulation range from seventy degrees to one hundred sixty degrees Fahrenheit.

Product Highlights

The gas valve is suitable for natural gas applications and provides a reliable solution for temperature regulation in water heating systems.

Product Information

Standard Information

• Brand: White Rodgers
• MPN: 37E73A-921

Technical Specifications

• Regulator Setting: 3.5 inches W.C. Natural Gas
• Temperature Range: seventy degrees to one hundred sixty degrees Fahrenheit
• Shank Length: 1.72 inches
• Operating Voltage: 120 Vac, 60 Hz
• Amperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0
• Range of Regulation (BTU/Hr.): thirty thousand to one hundred fifty thousand BTU/Hr.
• Pressure Drop Capacity: one hundred thousand BTU/Hr. (based on thousand BTU per cubic foot, 0.64 specific gravity of natural gas)
• Maximum Inlet Pressure: 1/2 PSI
