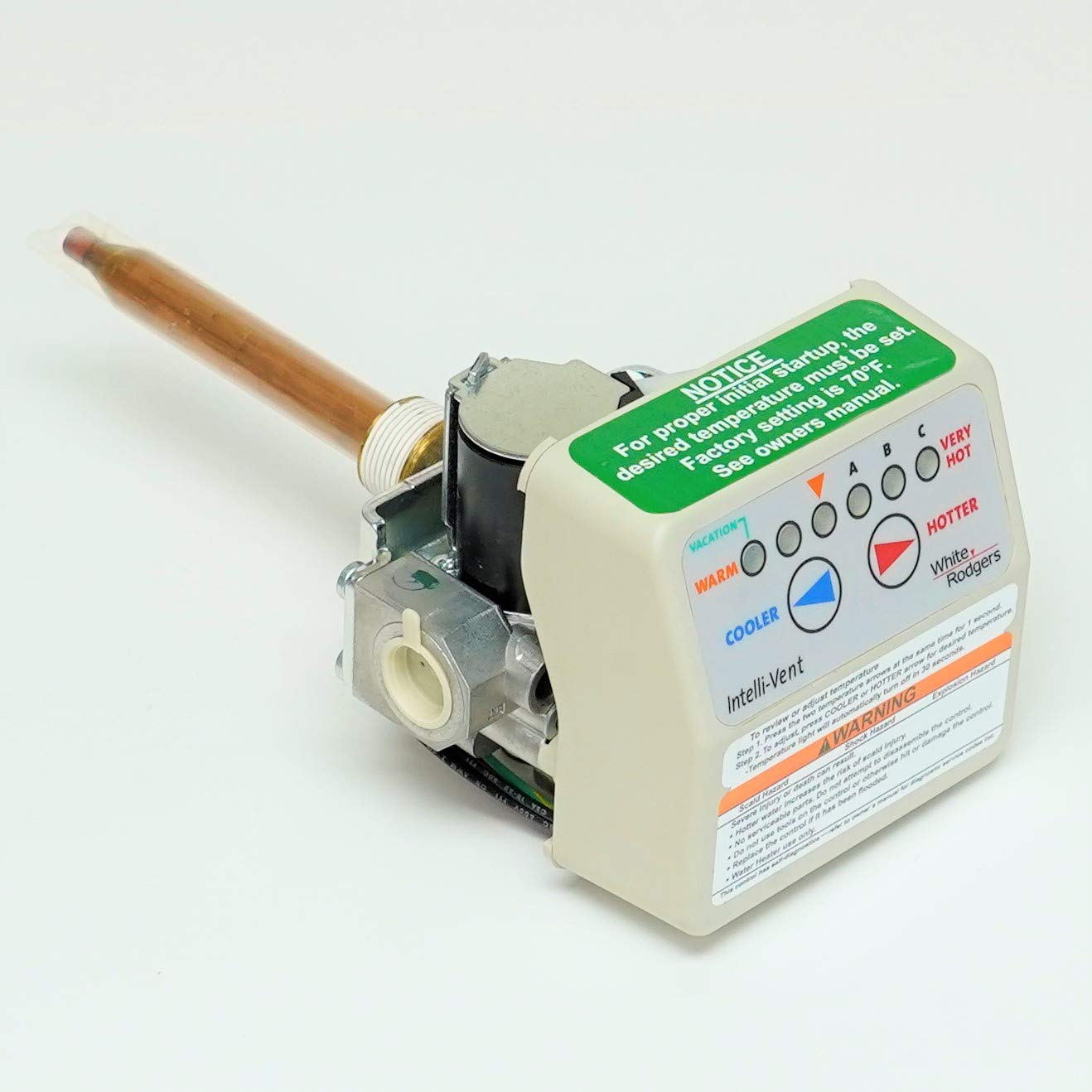

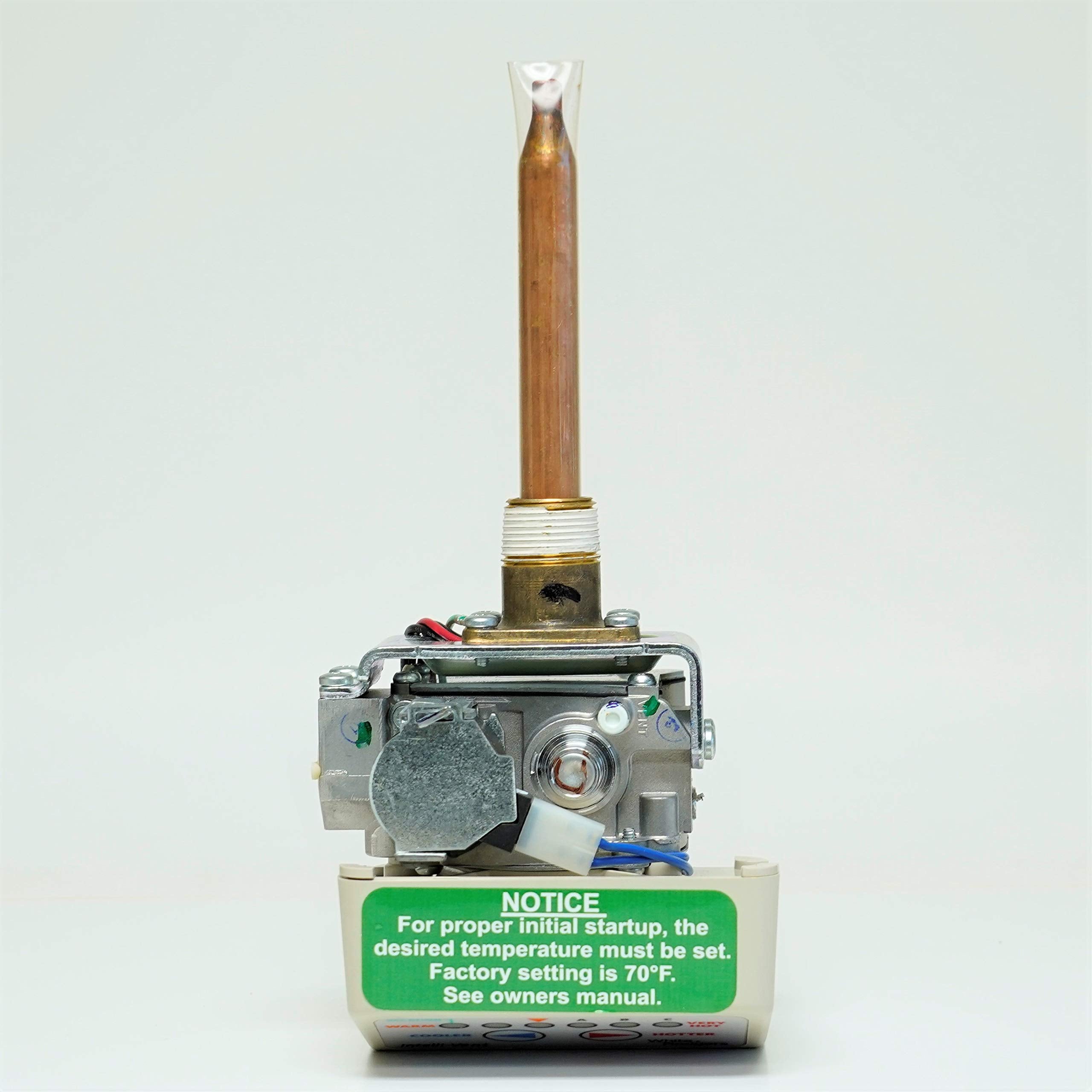

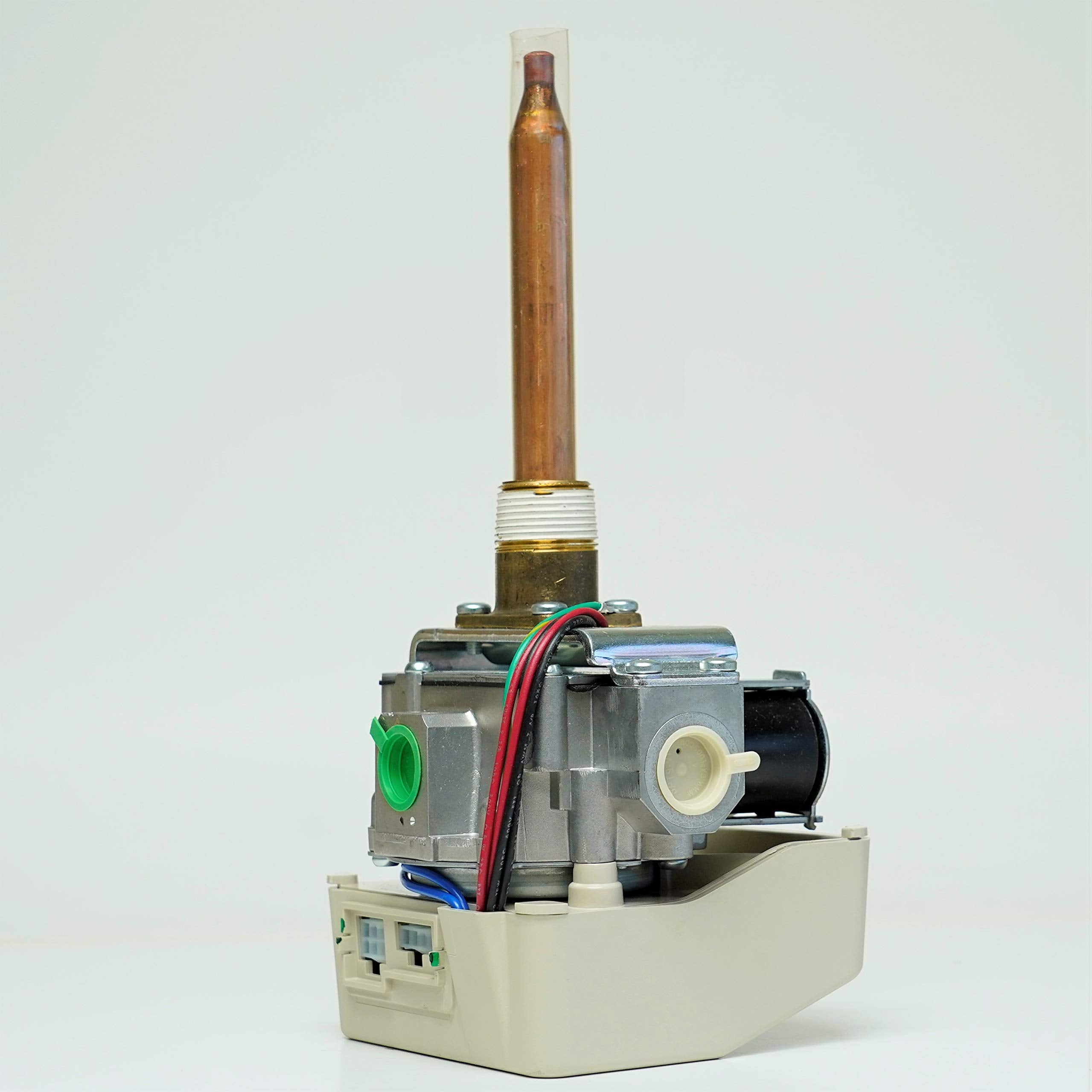

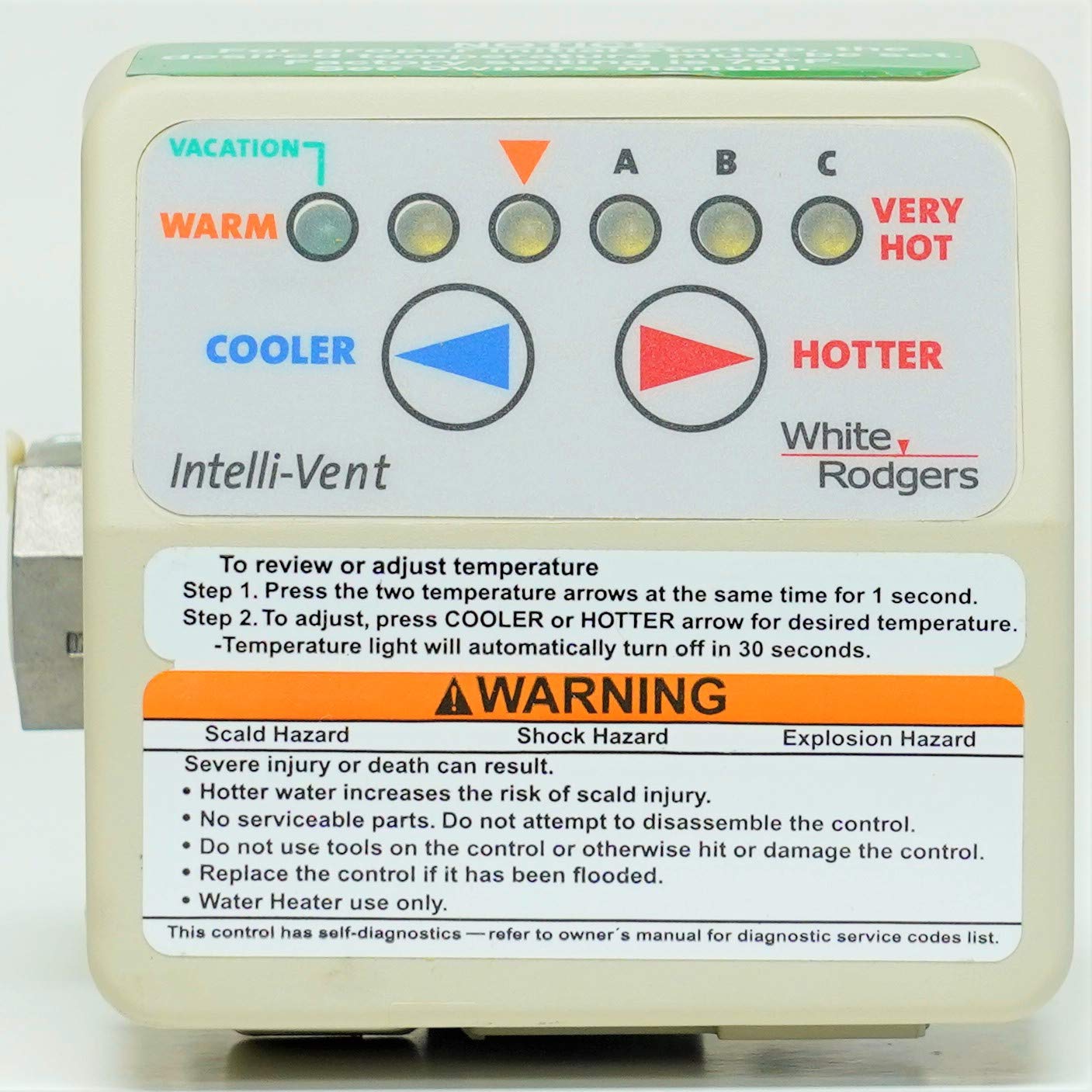

White-Rodgers 37E73A-903 Intelli-Vent Water Heater Valve for Natural Gas

Product Description

The White-Rodgers 37E73A-903 Intelli-Vent Water Heater Valve is designed for optimal performance in various heating and cooling systems. This advanced, solenoid-operated control combines gas, ignition, and thermostat functionalities into one compact unit.

• Ideal for replacing A.O. Smith 184960 and State Industries 9003691005 models.
• Features a right-angle configuration with a half-inch N.P.T. inlet and outlet.
• Regulates temperatures ranging from 70 to 160 degrees Fahrenheit.

Product Highlights

The Intelli-Vent valve offers a regulation range of 20,000 to 150,000 BTU's and operates solely with natural gas. It ensures reliable flow control and precise temperature adjustments, enhancing the efficiency of water heating systems.

Product Information

Standard Information

• Model Compatibility: Direct replacement for A.O. Smith 184960 and State 9003691005
• Type: Solenoid-operated valve

Technical Specifications

• Pressure Setting: 4.0 inches W.C. for Natural Gas
• Temperature Range: 70 to 160 degrees Fahrenheit
• Regulation Range: 20,000 to 150,000 BTU/hr
• Operating Voltage: 120 Vac, 60 Hz
• Amperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0
