Product Description

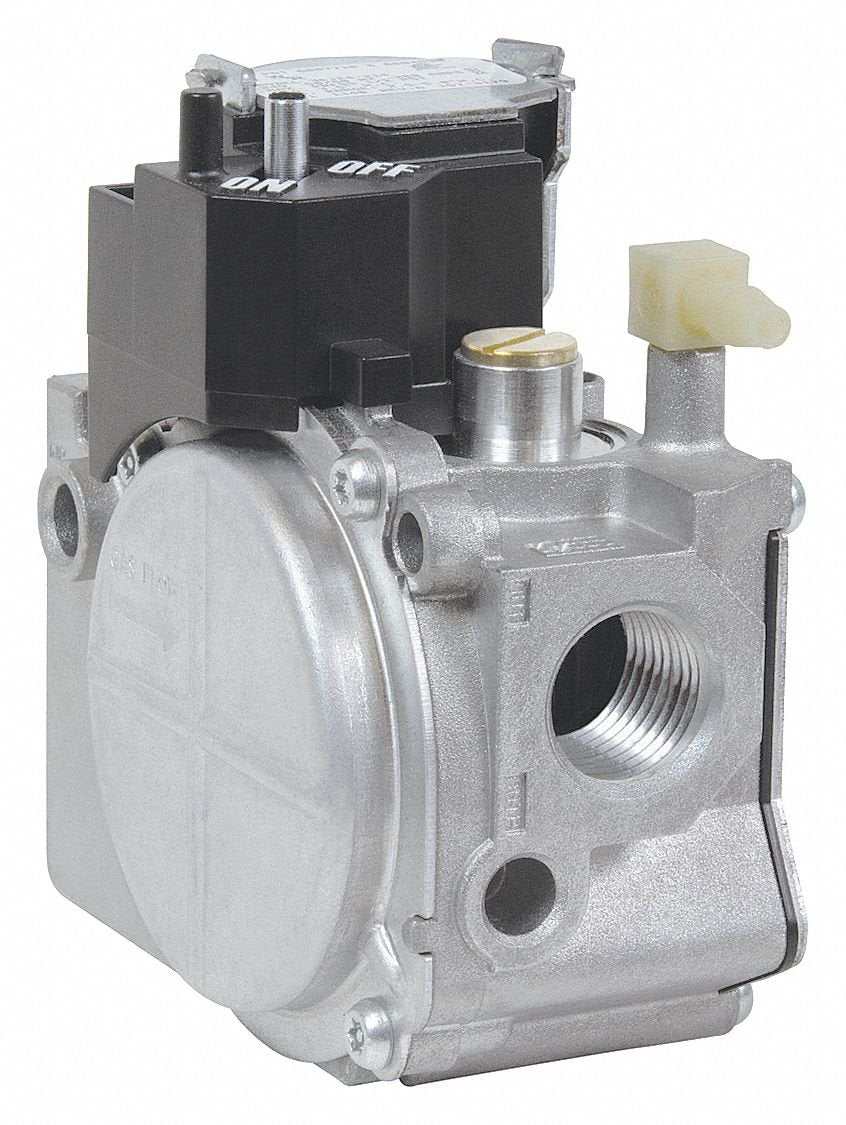

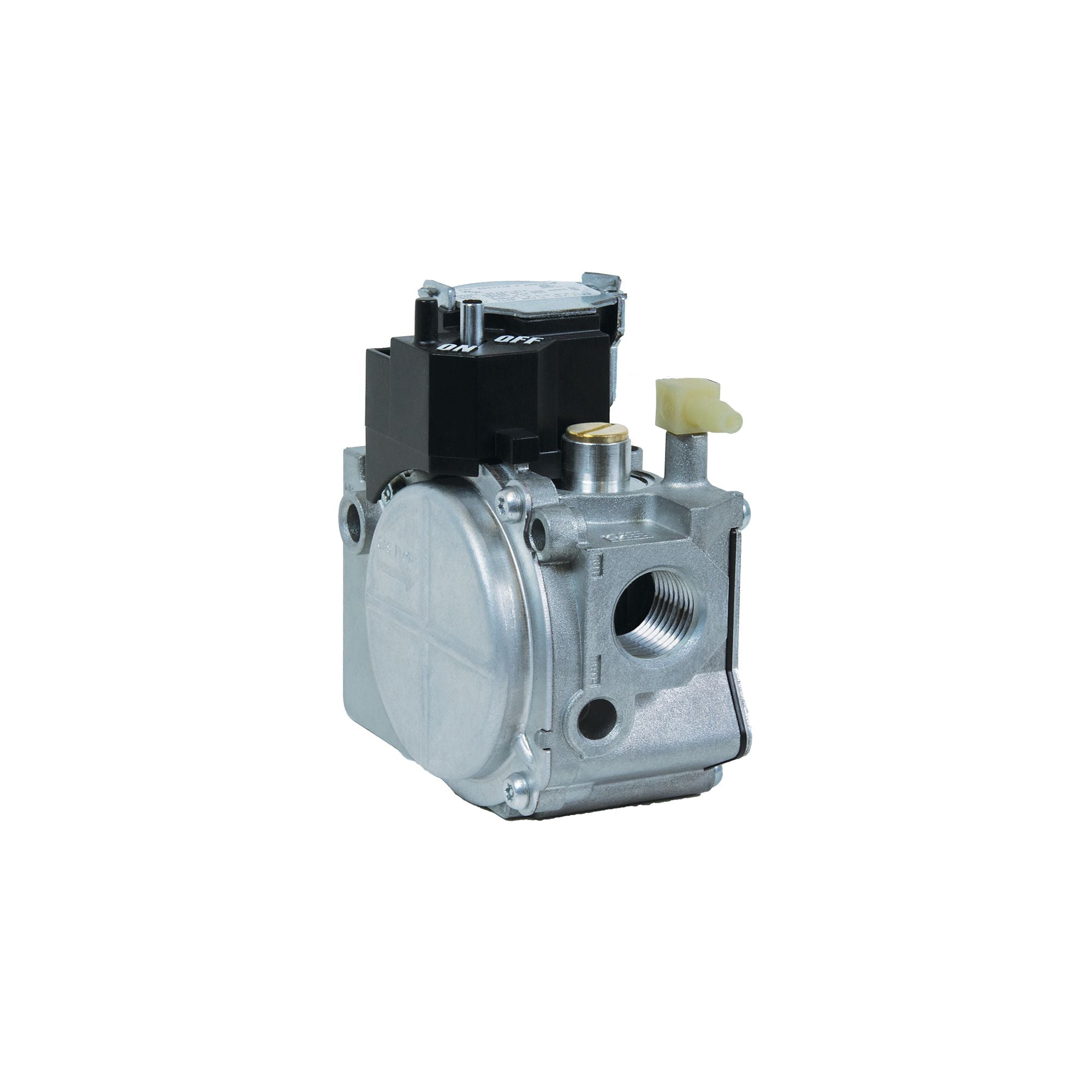

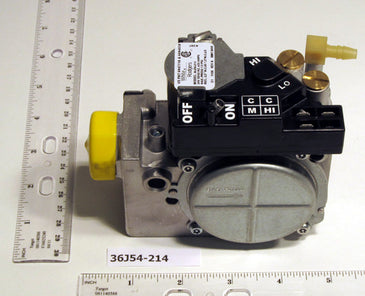

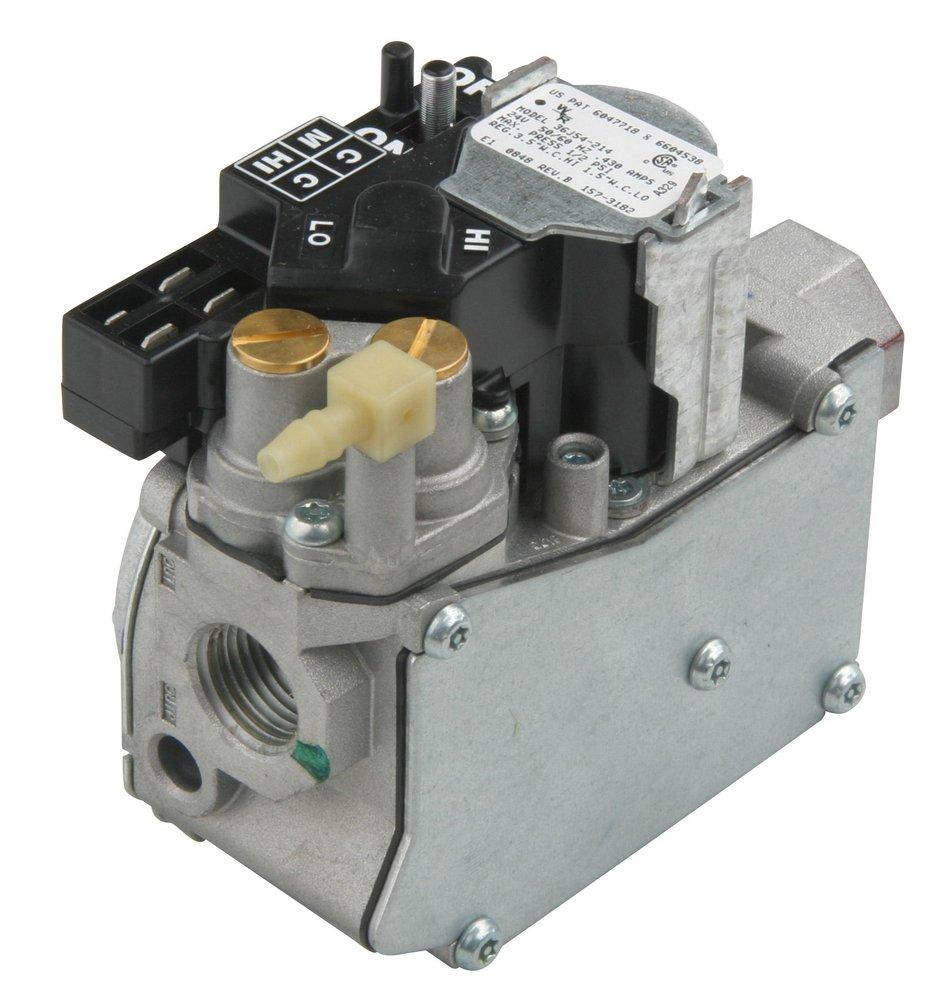

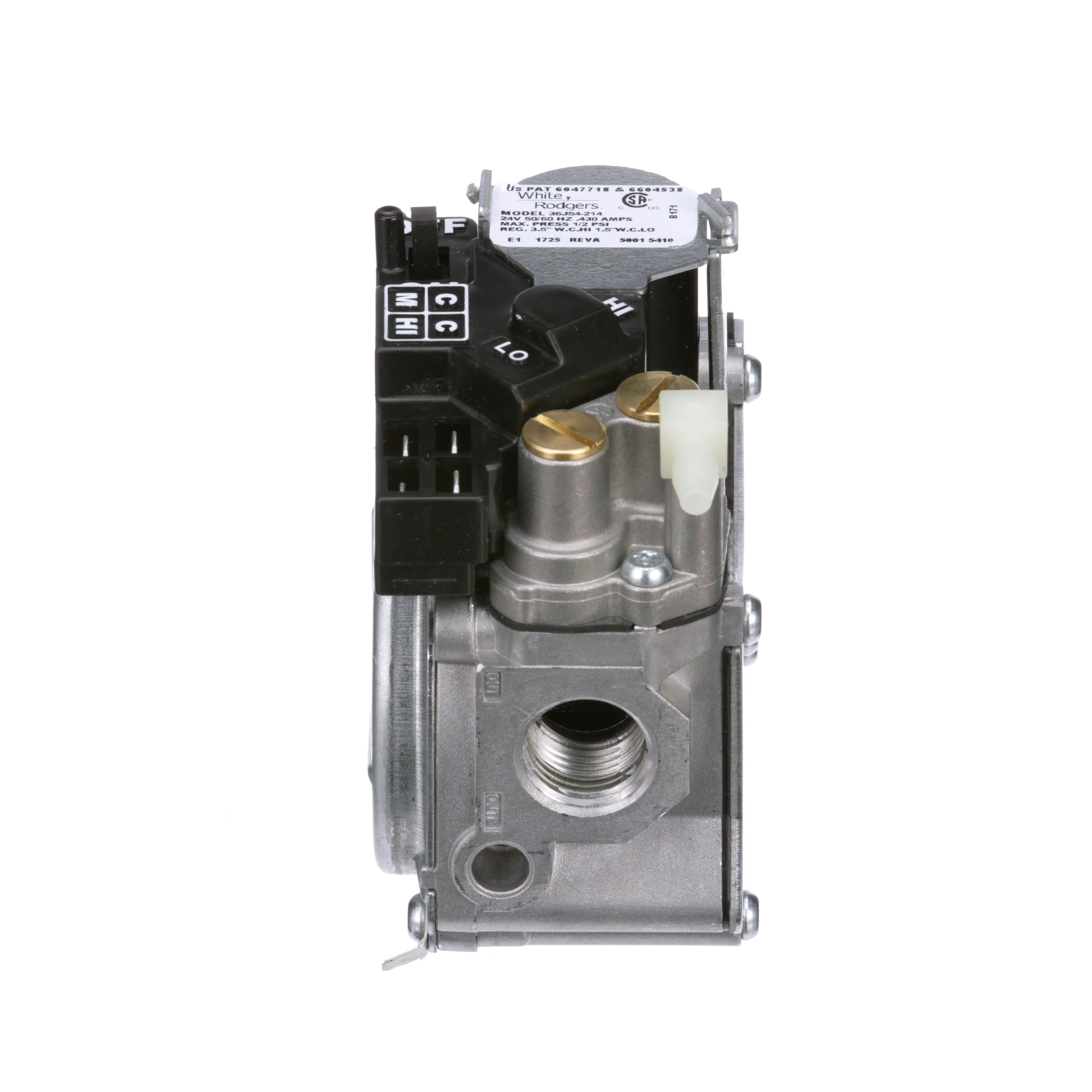

The White-Rodgers 36J54-214 gas valve is designed for hot surface and direct spark ignition systems. This valve features a compact footprint and versatile range. It is designed for use with non-piloted intermittent ignition systems and high-efficiency gas systems.

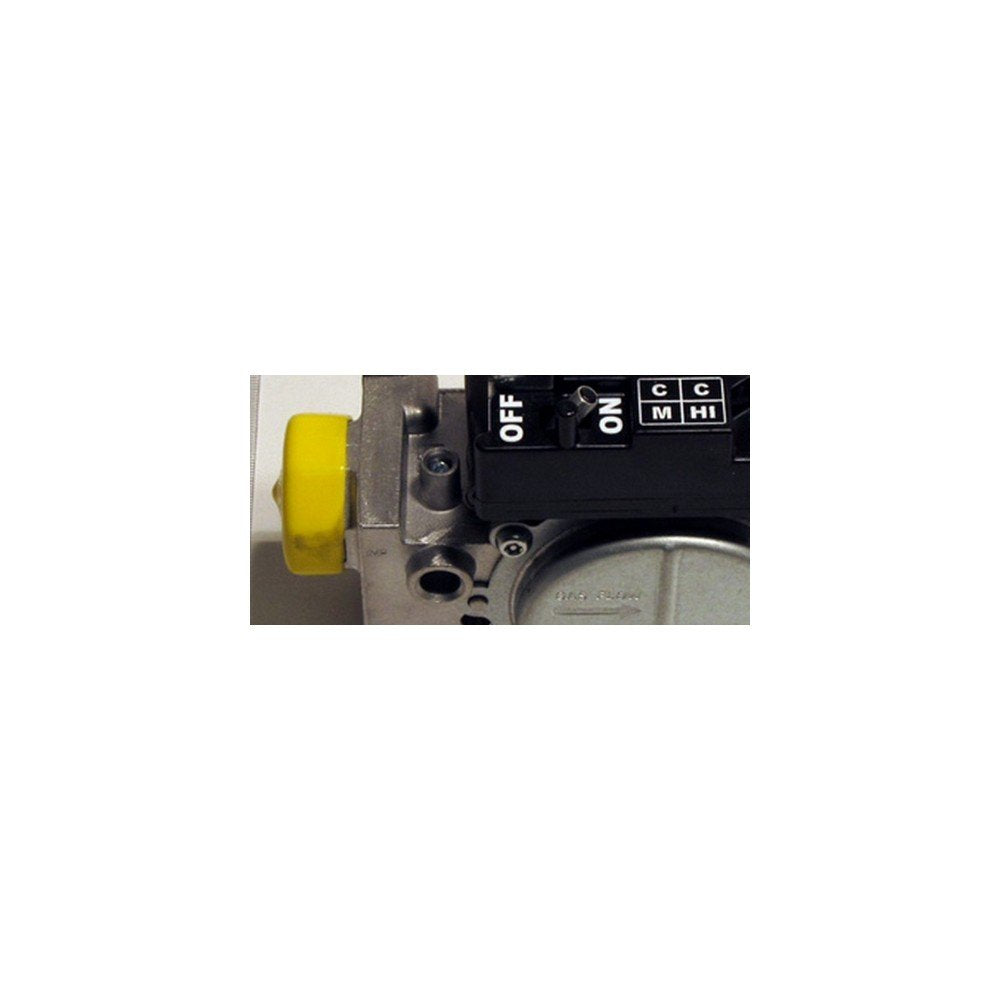

- Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounts in any position including upside down
Product Highlights
This gas valve is suitable for natural and liquid propane gas and includes a liquid propane conversion kit.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 36J54-214
-
Country of Origin: MX
Technical Specifications
-
Brand: White-Rodgers
-
Manufacturer: Emerson
-
Item Model Number: 36J54-214
-
MPN: 36J54-214
-
Nominal Size: 1/2 Inch x 1/2 Inch
-
Type: 2-Stage, Fast Open, Straight Through
-
End Connection: Female Threaded x Female Threaded
-
End To End Distance: 4.693 Inch
-
Input Supply Rating: 24 Volt AC 50/60 Hertz 0.43 Amp
-
Temperature Rating: -40 to 175 Deg F
-
Pressure Rating: 1/2 PSI
-
Inclusions/Features: Convertible Natural/Liquid Propane Gas, Liquid Propane Conversion Kit, Filter Screen, Reducer Bushing Kit, Inlet/Outlet Pressure Tap, HSI/DSI System
-
Exclusions: Side Tap, Standing Pilot with Line Interrupter, Intermittent/Proven Pilot
-
Application: Non-Piloted Intermittent Ignition System, Smaller Size and High Efficiency Gas System
-
Applicable Standard: CSA (Canada and US)
-
Fuel Type: Natural/Liquid Propane Gas
-
Capacity: 140000 BTU/Hour (Natural Gas), 226800 BTU/Hour (Liquid Propane Gas)
-
Mounting: Multiposition
-
Pressure Tap Connection: 1/8 Inch Threaded
-
Swing Radius: 2.75 Inch
-
Regulator Setting: 1.5 Inch (Low), 3.5 Inch (High)
-
Regulator Adjustment Range: 2.5 to 5 Inch (Natural Gas), 6 to 12 Inch (Liquid Propane Gas)
-
Series/Model: 36G-36J
-
Ignition Type: Hot Surface
-
Valve Type: Fast Opening
-
Coil Voltage: 24 V
-
Gas Type: NG/LP
-
Inlet Size: 1/2 in
-
Outlet Size: 1/2 in
-
LP Conversion Kit: Yes
-
Side Taps: No
-
Inlet Pressure Tap: Yes
-
Reducer Bushing Kit: (2) 1/2 x 3/8
-
Ambient Temp. Range: -40 Degrees to 175 Degrees F
-
Voltage: 24 VAC
-
Nominal Capacity: 140000 Btu/hr
-
Country of Origin: MX
-
Domestic/Import: Import
-

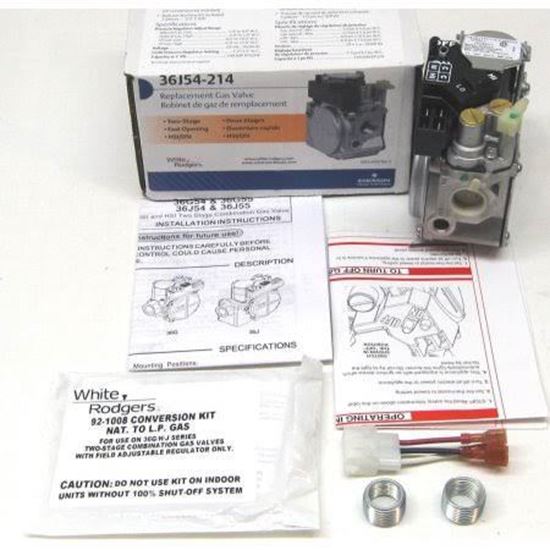

Includes: Inlet/Outlet Pressure Taps, Plastic Hose Barb (For Connection to 1/4 in Hose/Flexible Tubing), LP Gas Conversion Kit and 1/2 x 3/8 in NPT Inlet/Outlet Reducer Bushings
-
Mfg Standards/Approvals: CSA Certified
-
Mounting Type: Any Position
-
Stages: Two-Stage
-
Amperage: 0.43 A
-
Frequency: 50/60 Hz
-
Body Style: Straight Thru
-
Electrical Rating: 24 Vac, 50/60Hz
-
Opening Style: Fast Opening
-
Operating Voltage: 24 Vac 50/60 Hz
-
Pressure Taps, Inlet / Outlet: Yes / Yes
-
Reducer Bushing Kit Included: Yes
-
System Type: Direct Spark Ignition (DSI)
Hot Surface Ignition (HSI)
-
For Use With: Two stage, hot surface ignition (HSI) or direct spark ignition (DSI) featuring fast open ignition systems
-
Prop 65: Yes
-
Additional Information: Fuel Type Natural/Liquid Propane Gas; Capacity 140000 BTU/Hour (Natural Gas), 226800 BTU/Hour (Liquid Propane Gas); Regulator Setting 1.5 Inch (Low), 3.5 Inch (High);Regulator Adjustment Range 2.5 to 5 Inch (Natural Gas), 6 to 12 Inch (Liquid Propane Gas)
-
Manufacturer Name: White-Rodgers
-
Manufacturer Part Number: 36J54-214
-
UNSPSC Code: 40141609
-
Capacity (BTU): 226800
-
Inlet X Outlet [in]: 1/2" X 1/2"
-
LP Conversion Kit Included: Yes
-
Regulator Adjustment Range [W.C.]: LP: 4.0 to 10.0" W.C. (Low)
LP: 6.0 to 12.0" W.C. (High)
NG: 1.0 to 4.0" W.C. (Low)
NG: 2.0 to 5.0" W.C. (High)
-
Regulator Setting [W.C.]: 1.5" W.C. (Low)
3.5" W.C. (High)
