Product Description

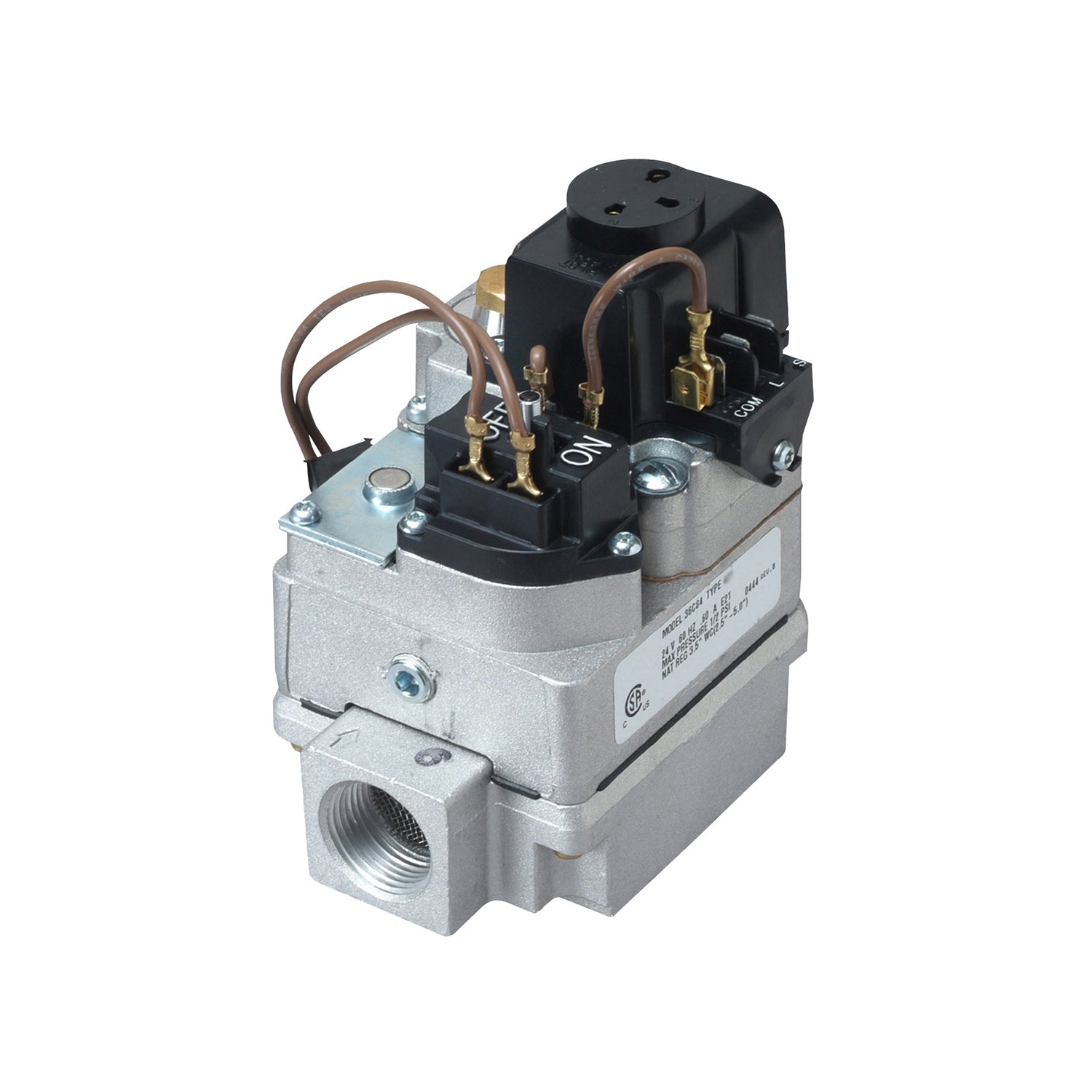

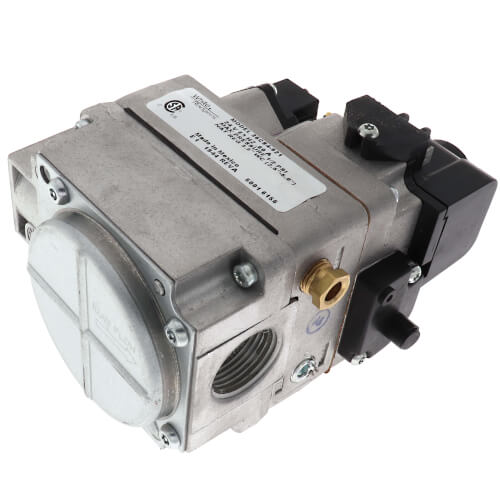

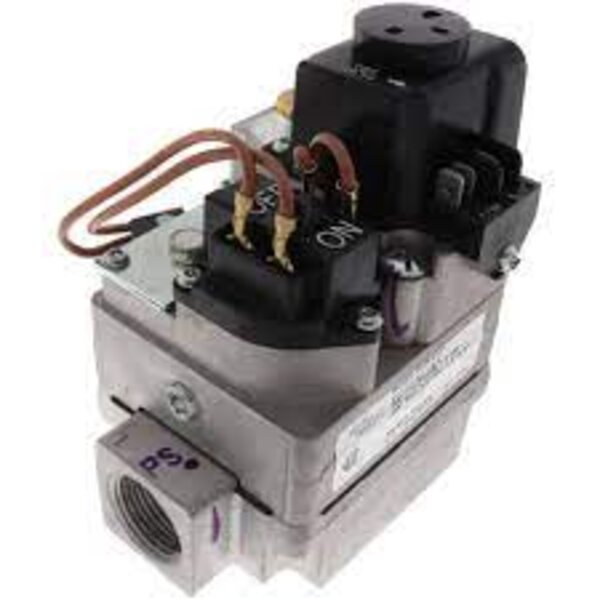

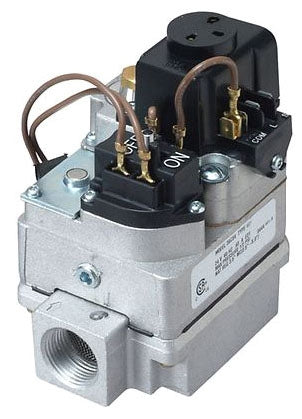

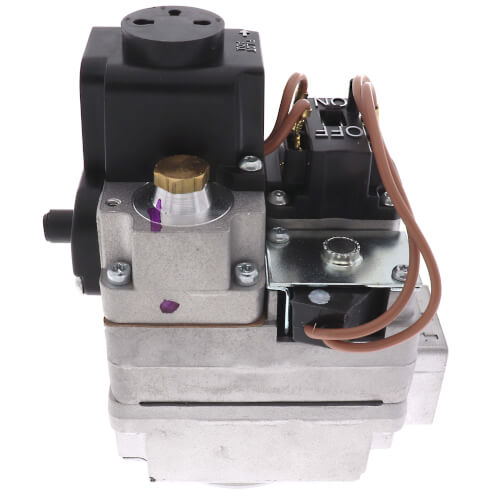

The WHITE-RODGERS 36C84-921 gas valve is a 2-stage, cycle pilot, fast open, straight-through valve with a nominal size of 3/4 Inch x 3/4 Inch. It is designed for intermittent ignition systems and is convertible for natural or liquid propane gas. The valve has an input supply rating of 24 Volt AC 60 Hertz 0.6 Amp and a pressure rating of 1/2 PSI.
- Convertible for Natural/Liquid Propane Gas
- Adjustable Regulator
- Includes Inlet/Outlet Screen
Product Highlights
This gas valve is ideal for intermittent ignition systems and offers easy conversion between natural and liquid propane gas.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 36C84-921
-
Country of Origin: United States
Technical Specifications
-
Type: 2-Stage, Cycle Pilot, Fast Open, Straight-Through
-
Category: HVAC/R & Fans
-
Application: Intermittent Ignition System
-
UNSPSC Code: 40141609
-
Nominal Size: 3/4 Inch x 3/4 Inch
-
Series/Model: 36C
-
End Connection: Female Threaded x Female Threaded
-
Pressure Rating: 1/2 PSI
-
Temperature Rating: -40 to 175 Deg F
-
Applicable Standard: CSA (Canada and US)
-
End To End Distance: 5.169 Inch
-
Inclusions/Features: Convertible Natural/Liquid Propane, Liquid Propane Conversion Kit, Inlet Pressure Tap, Reducer Bushing Kit
-
Input Supply Rating: 24 Volt AC 60 Hertz 0.6 Amp
-
Additional Information: Fuel Type Natural/Liquid Propane Gas; Capacity 280000 BTU/Hour (Natural Gas), 453600 BTU/Hour (Liquid Propane Gas); Regulator Setting 3.5 Inch; Regulator Adjustment Range 2.5 to 5 Inch (Natural Gas), 7 to 12 Inch (Liquid Propane Gas)
-
Manufacturer Part Number: 36C84-921
-
UPC: 786710527814
-
Voltage: 24 VAC
-
Frequency: 60 Hz
-
Current: 0.6 A
-
Natural Gas BTU/Hr: 280000
-
LP Gas BTU/Hr: 453600
-
Fuel Type: Natural/Liquid Propane Gas
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Capacity (BTU): 280000
-
Brand: White-Rodgers
-
Manufacturer: White Rodgers / Emerson
-
Product Type: VALVE
-
Material: Metal
-
Number of Ports: 2
-
Specification Met: CSA, ULC
-
Model: 36C84-921
-
Opening Style: Fast
-
Inlet Conn.: 3/4''
-
Outlet Conn.: 3/4''
