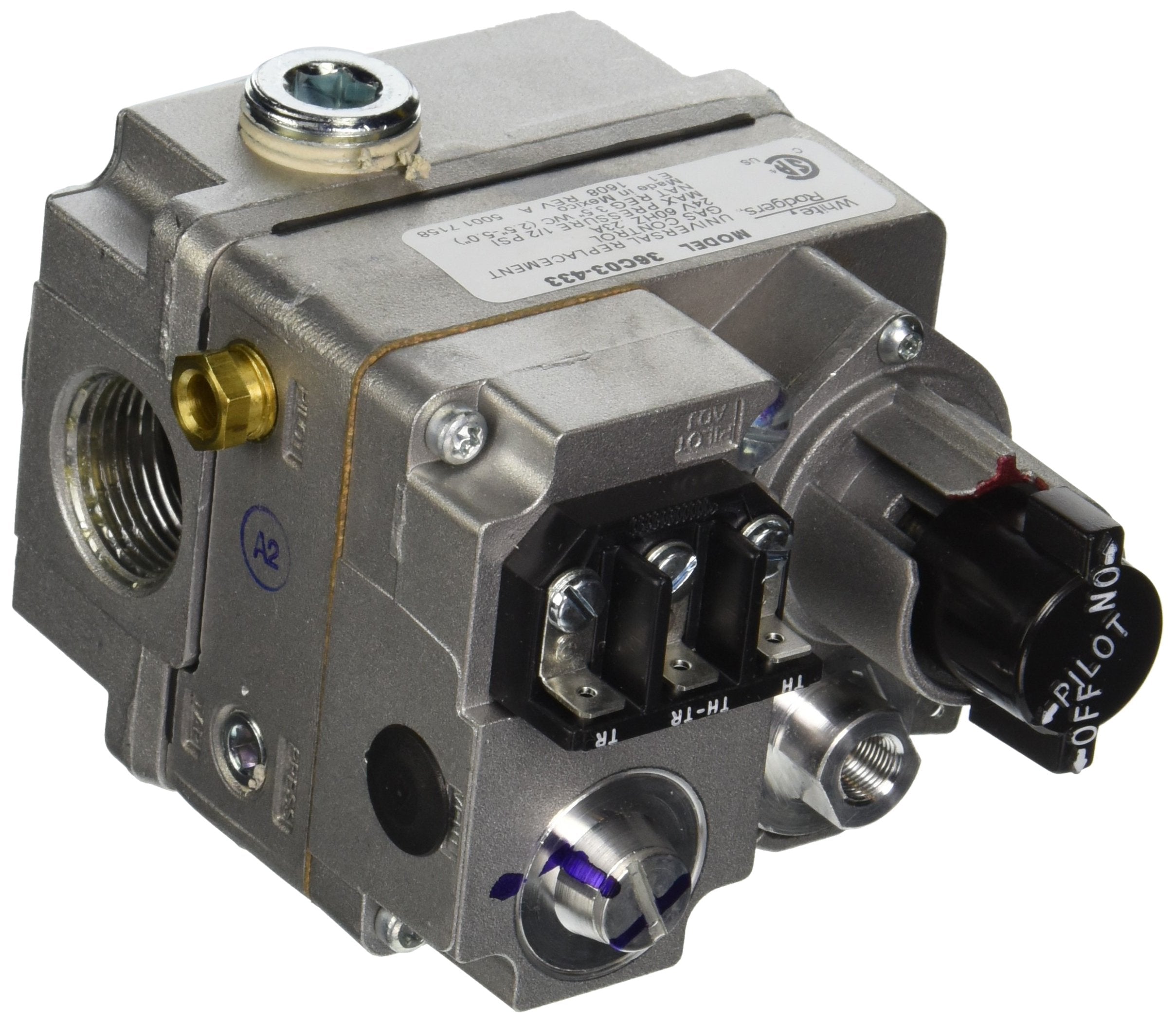

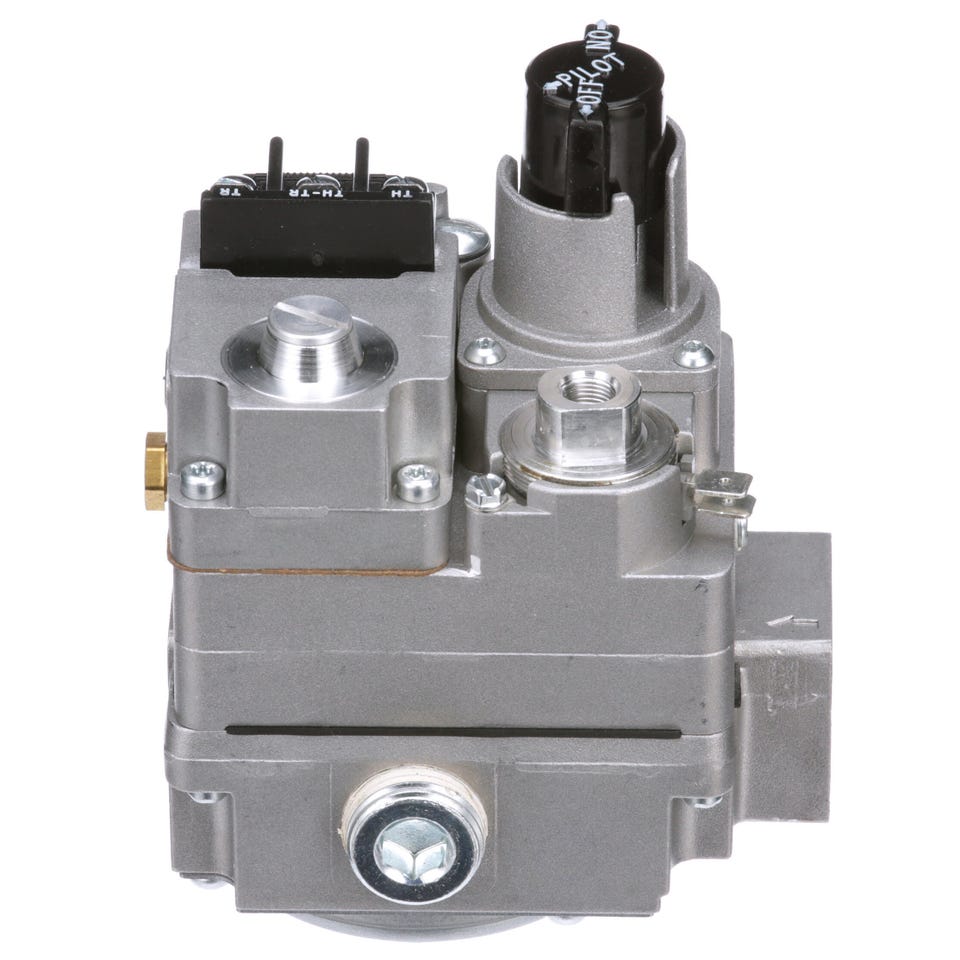

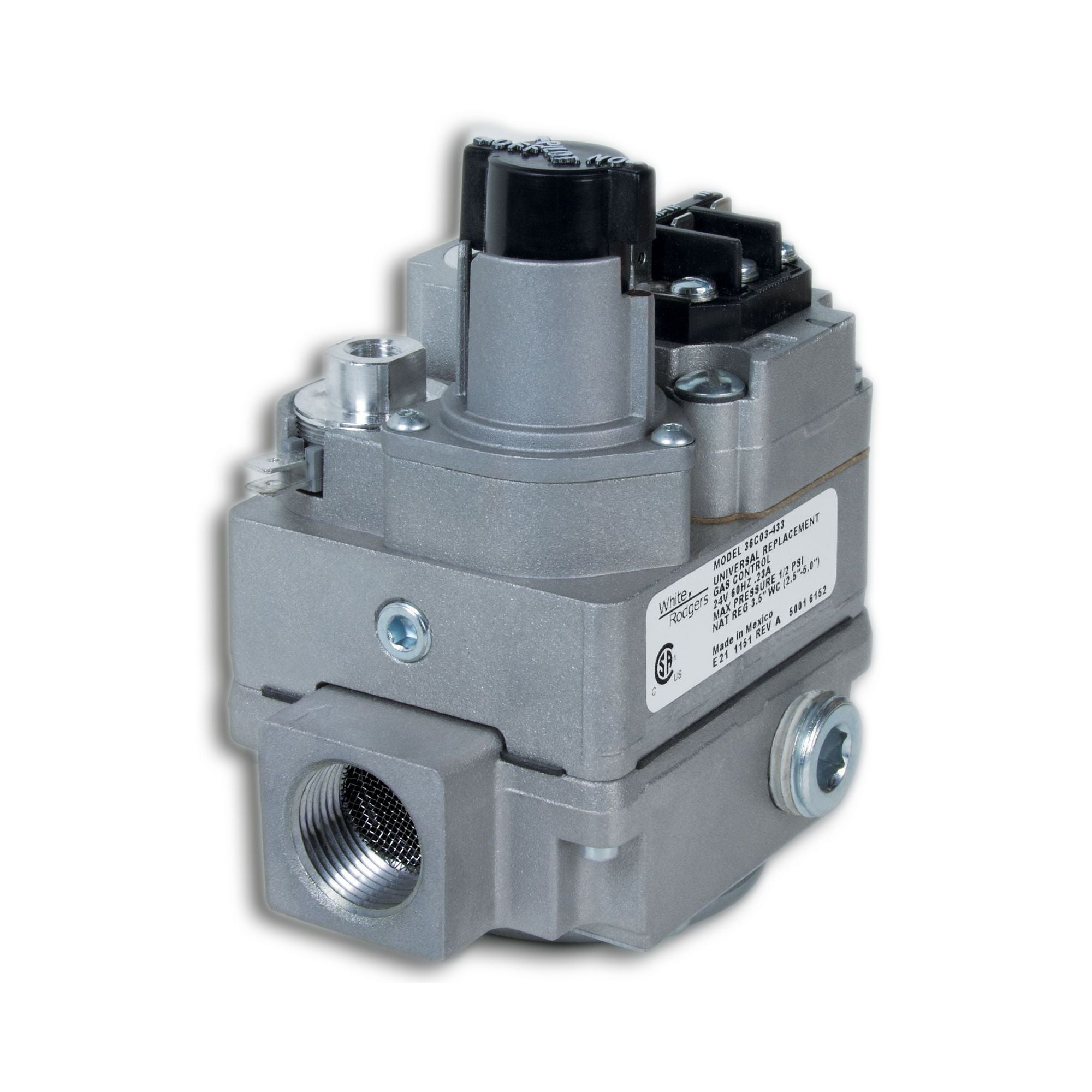

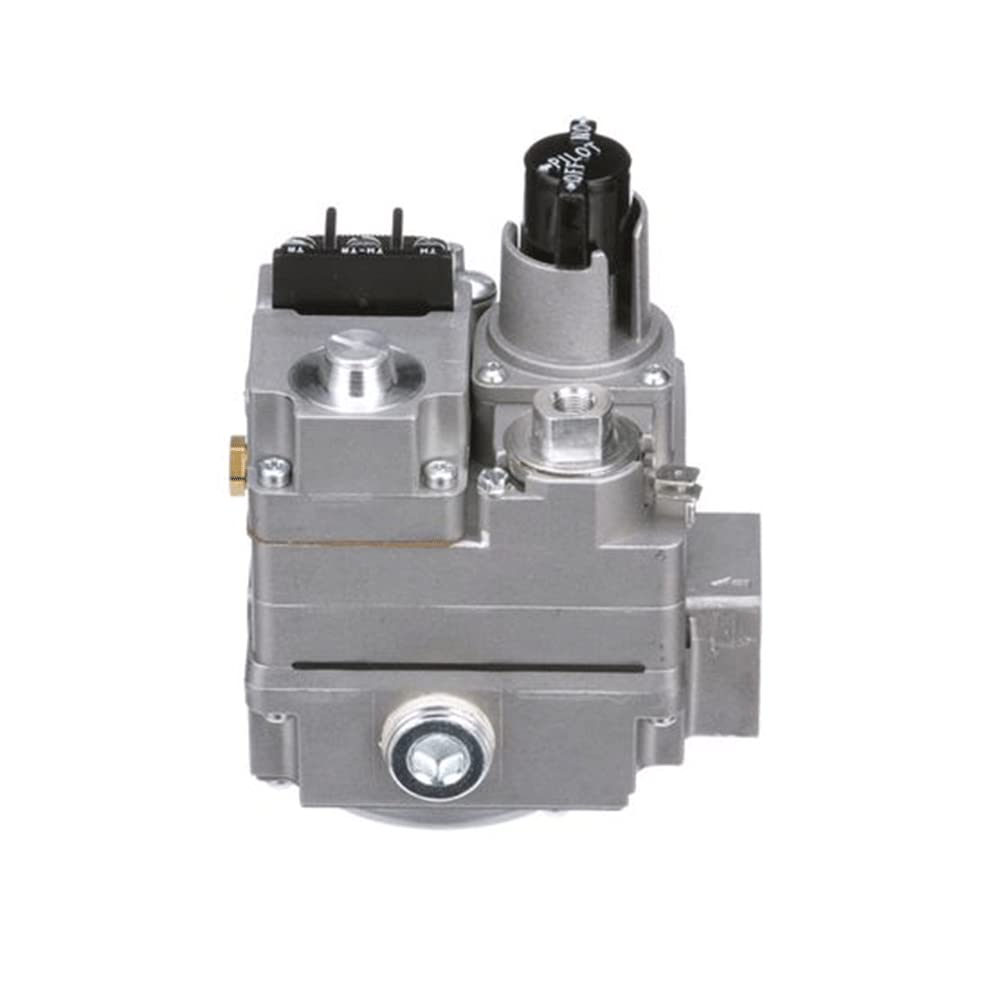

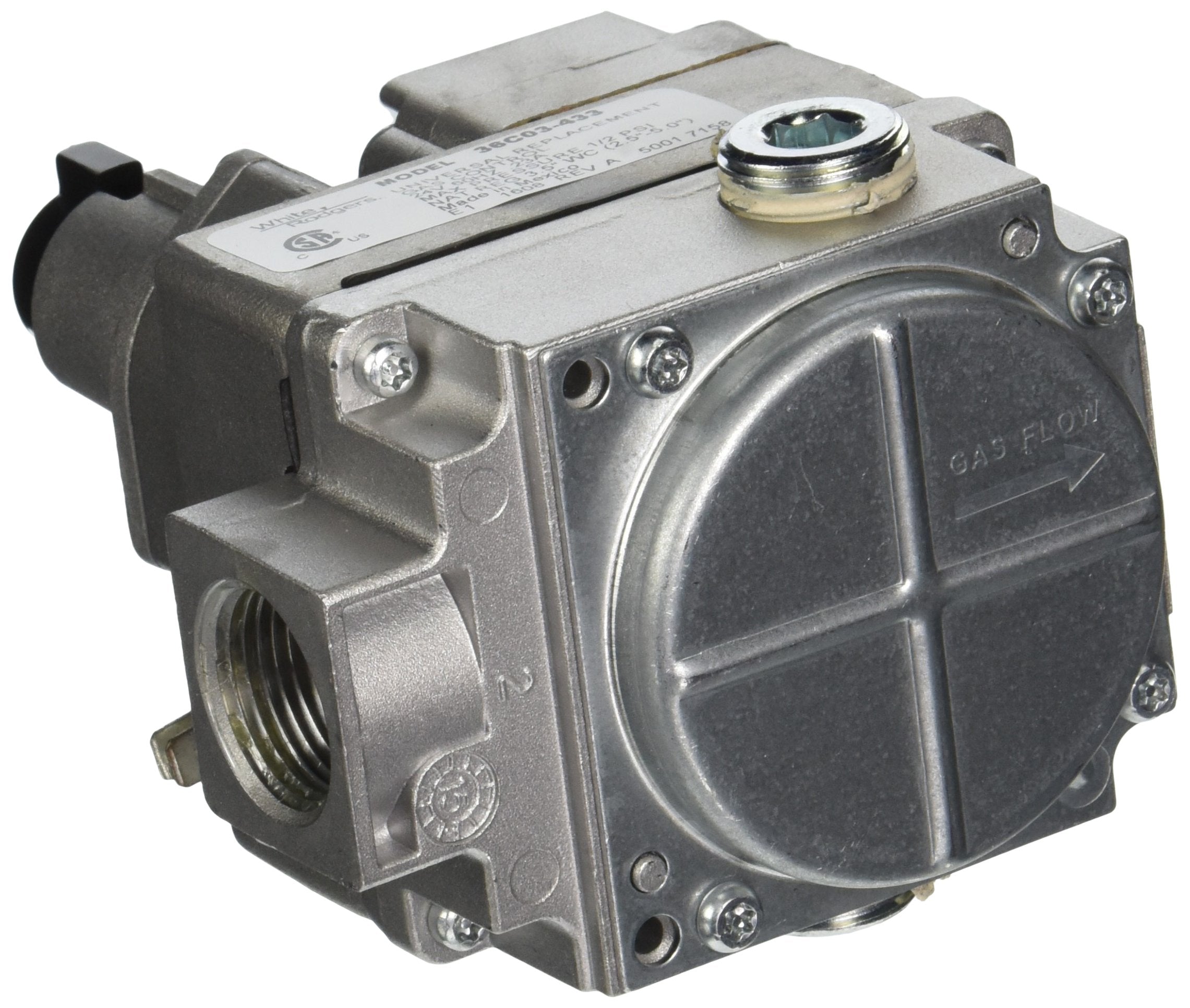

White-Rodgers 36C03-433 Gas Valve 3/4 inches x 3/4 inches 24 VAC

Product Description

The WHITE-RODGERS 36C03-433 is a versatile combination gas valve designed for standing pilot systems, replacing numerous existing models. This universal gas valve is suitable for natural or LP gas and features a line interrupter. It has a 3/4 inch inlet and outlet with side taps and reducer bushings. The valve operates at 24 VAC.

• Designed for standing pilot systems
• Convertible for natural or LP gas

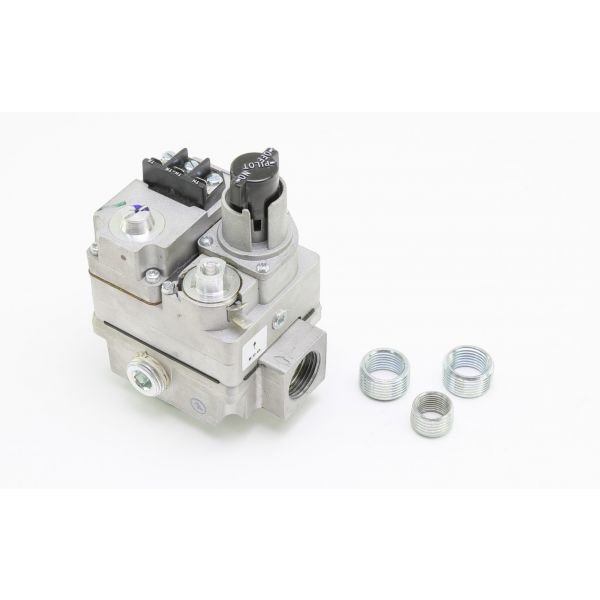

• Includes side taps and reducer bushings

Product Highlights

This gas valve offers broad application coverage and reliable performance for various heating systems.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 36C03-433
• Country of Origin: MEX

Technical Specifications

• Manufacturer Part Number: 36C03-433
• Nominal Size: 3/4 Inch x 3/4 Inch
• Voltage: 24 VAC
• Fuel Type: Natural/Liquid Propane Gas
• Inlet Size: 3/4 in
• Outlet Size: 3/4 in
• Ignition Type: Standing Pilot
• Temperature Rating: -40 to 175 Deg F
• Pressure Rating: 1/2 PSI
• Amperage: 0.23 Amps
• Frequency: 60 Hz
• End Connection: Female Threaded x Female Threaded
• Opening Style: Fast Opening
• Stages: Single
• Side Taps: Yes
• LP Conversion Kit Included: Yes
• Reducer Bushing Kit Included: Yes
• Inlet Pressure Tap: Yes
• Ambient Temperature: -40°F (-40°C) Min, 175°F (80°C) Max
• Flow Direction: Straight Through
• Type: 1-Stage, Standing Pilot, Fast Open, Straight-Through
• Capacity: 280000 BTU/Hour (Natural Gas), 453600 BTU/Hour (Liquid Propane Gas)
• Regulator Setting: 3.5 Inch
• Regulator Adjustment Range: 2.5 to 5 Inch (Natural Gas), 7.5 to 12 Inch (Liquid Propane Gas)
