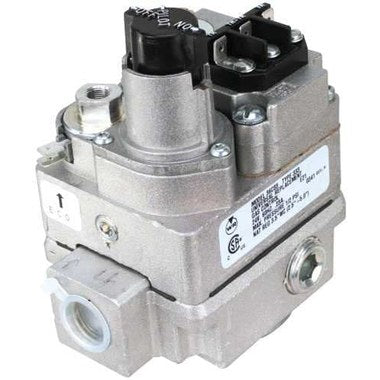

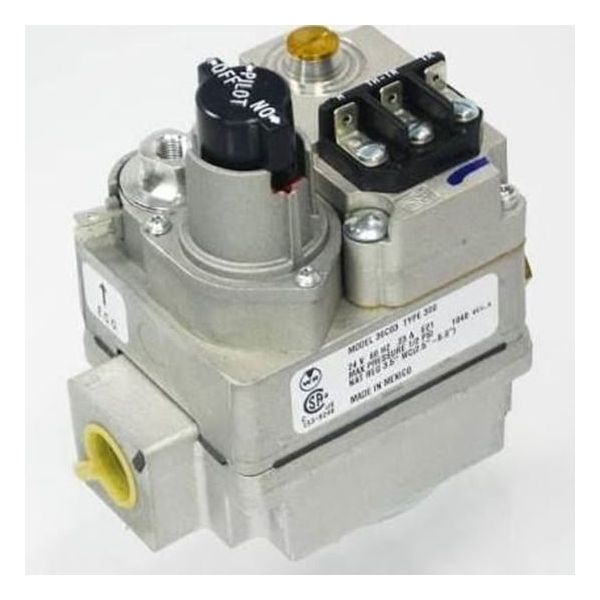

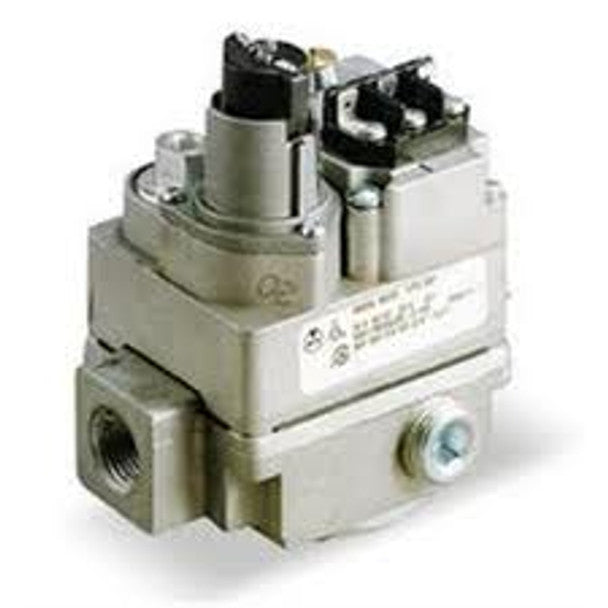

White Rodgers 36C03-333 Gas Valve, 1/2 x 3/4 in Standing Pilot, 24V, LP Conversion Kit

Product Description

The White Rodgers 36C03-333 is a gas valve designed for standing pilot systems. It features a half inch by three-quarter inch inlet and outlet configuration. This universal valve operates at 24 volts and is suitable for both natural gas and liquid propane applications.

• Reliable operation with side outlet taps
• Includes LP conversion kit and reducer bushings
• Constructed for durability in heating applications

Product Highlights

This gas valve is ideal for various heating appliances, providing consistent gas flow control. It incorporates an adjustable regulator with inlet and outlet screens to enhance performance.

Product Information

Standard Information

• Brand: White Rodgers
• MPN: 36C03-333
• Gas Type: Liquid Propane/Natural Gas

Technical Specifications

• Nominal Size: 1/2 x 3/4 in
• Coil Voltage: 24 V
• Ignition Type: Standing Pilot
• Pressure Rating: 0.5 psi
• Nominal Capacity: 230000 Btu/cu-ft
• Temperature Rating: -40 to 175 deg F
• Electrical Connections: 1/8 in NPT Pressure Tap
• Country of Origin: MX
