White-Rodgers 3049-115 Mercury Flame Sensor 48 inches Element Bulb Style #20

Product Description

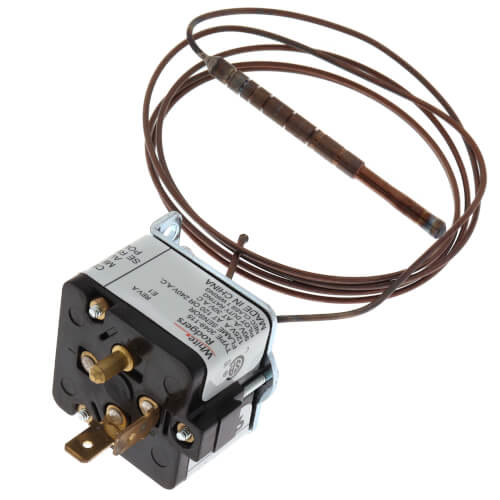

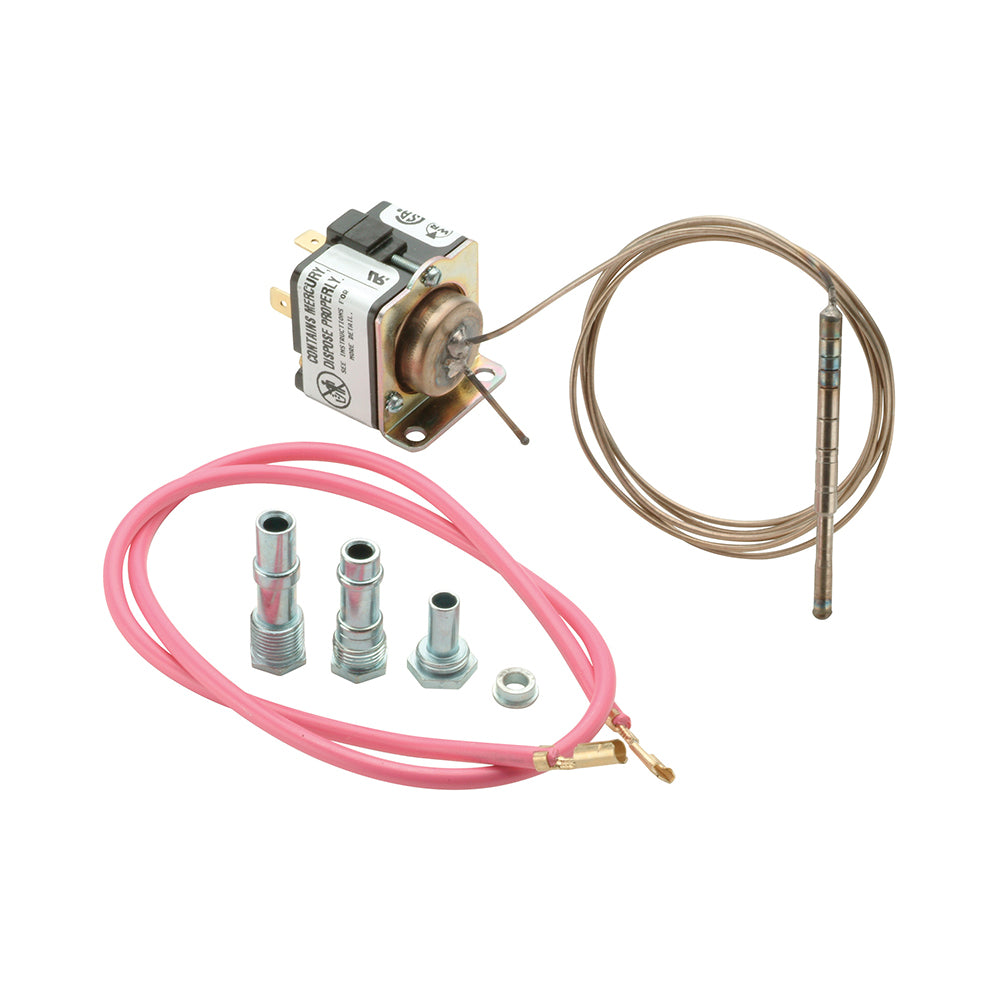

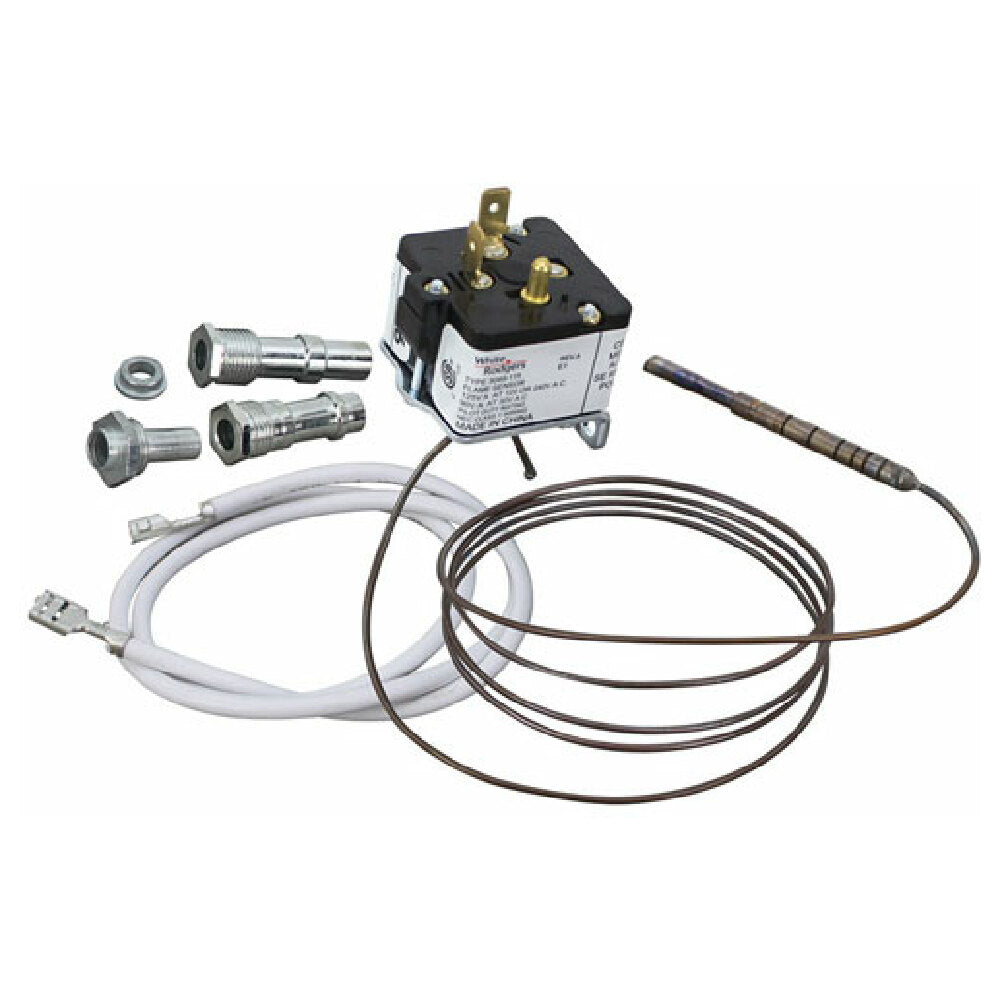

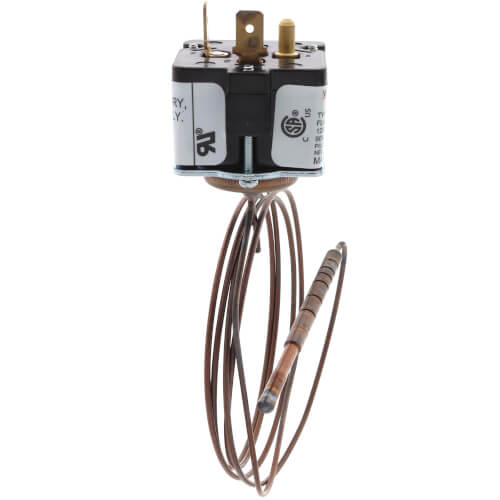

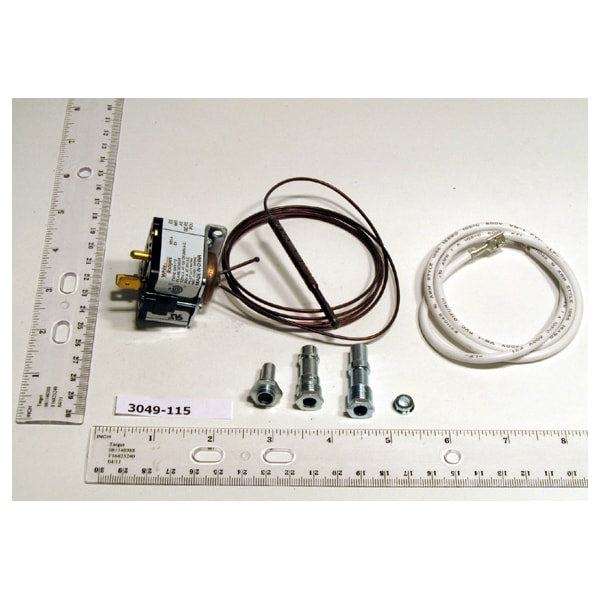

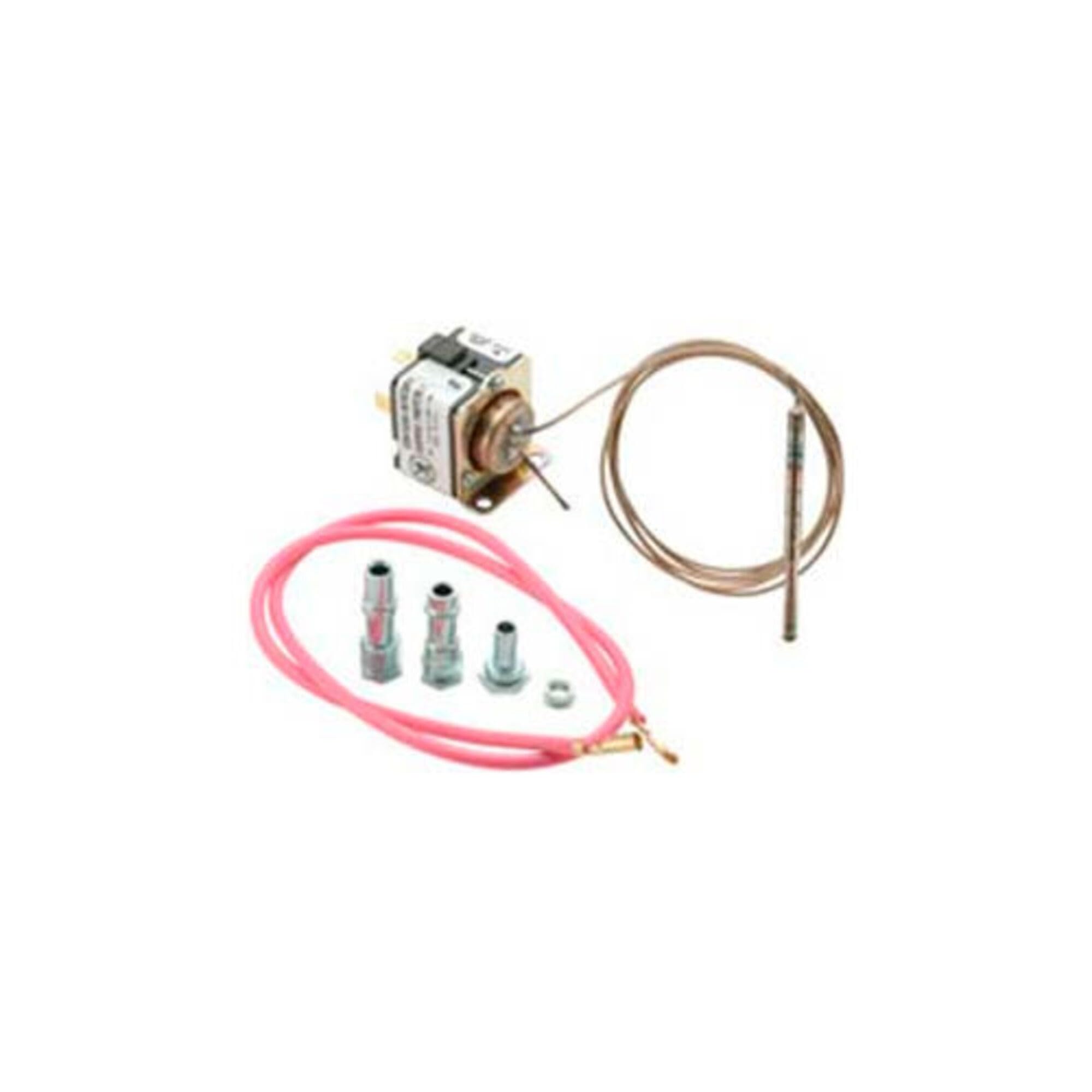

The White-Rodgers 3049-115 is a mercury flame sensor with a 48" element and bulb style #20. It features two 1/4" spade terminals and one pin terminal. This sensor is designed for proving pilot flame and controlling the main valve in cycle pilot applications. It ensures efficient and safe operation of industrial equipment.

• Features a 48" element.
• Includes two 1/4" spade terminals and one pin terminal.
• Designed with bulb style #20.

Product Highlights

This mercury flame sensor is suitable for use in heating systems, furnaces, and boilers, ensuring safe and efficient combustion processes.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3049-115
• Country of Origin: United States

Technical Specifications

• Connector Type: Spade, Pin
• Temperature Rating: 221 degree celsius
• Brand: White-Rodgers
• MPN: 3049-115
• Item Model Number: 3049-115
• Capillary Length: 48"
• Manufacturer: White-Rodgers
• Maximum Temperature: 1450 Deg F
• Type: Flame Sensor
• Used On: Proving Pilot Flame/Cycle Pilot/Gas Burner Control
