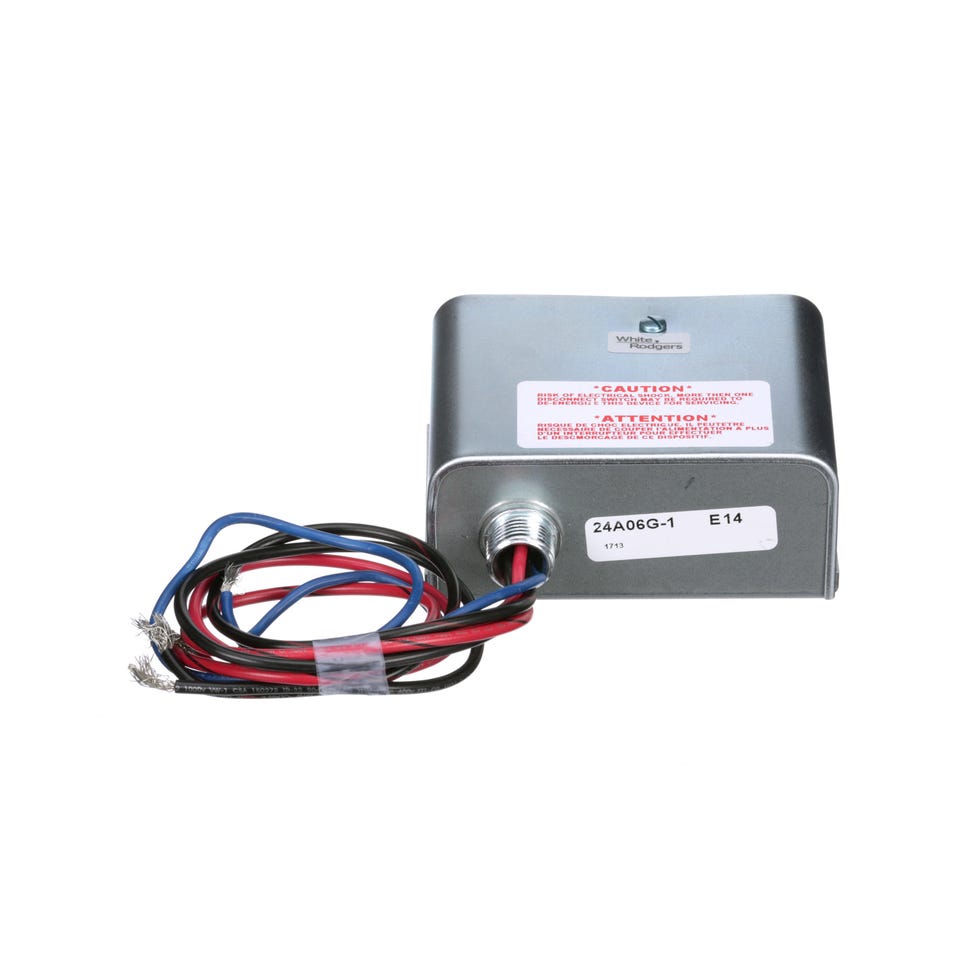

White-Rodgers 24A06G001S1 2 circuit level temp control 240 Vac

Product Description

The WHITE-RODGERS 24A06G001S1 is a 2 circuit level temperature control designed for electric heating or cooling installations. It provides silent operation and narrow differential control, making it suitable for various applications. This control operates at 240 Vac, 60 Hz, and has a resistive amperage of 25.0 A, with a power consumption of 6000 W. It is ideal for controlling line voltage loads such as baseboard heaters.

• Enables low voltage 2-wire thermostats to control line voltage loads like baseboard heaters.
• Optimized for use with all types of electrical heating systems.
• Features a non-critical mounting angle for versatile installation options.

Product Highlights

Silent operation and narrow differential control for heating or cooling, capable of managing two separate loads.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 24A06G001S1
• Country of Origin: Mexico

Technical Specifications

• Item Number: 38P927
• UNSPSC: 41112209
• Type: 2 Circuit Level Temp Control
• Category: Line-Voltage Thermostats
• California Prop 65 Warning: Yes, Cancer or Reproductive Harm
• Certifications: UL 873 T.I.R.E. standard, CSA Certified
• Electrical Rating: 240 Vac, 60 Hz
• Full Load Amperage (FLA): 12.0 A at 240 Vac
• Locked Rotor Amperage (LRA): 72.0 A at 240 Vac
• Resistive Amperage: 25.0 A at 240 Vac
• Product Family: 24A Series Level-Temp Control for Electric Heat
• Harmonized Tariff Schedule (HTS): 8536.49.0080
• Housing Material: Steel
• Lead Length: 18 inches
• Model Number: 24A06G-1
• MSDS Required: No
• Operating Temperature Range: -20 to 120 °F
• Power Consumption (Resistive): 6000 W at 240 Vac
• Switch Type: Normally Open, SPST (2) Independent Switches
