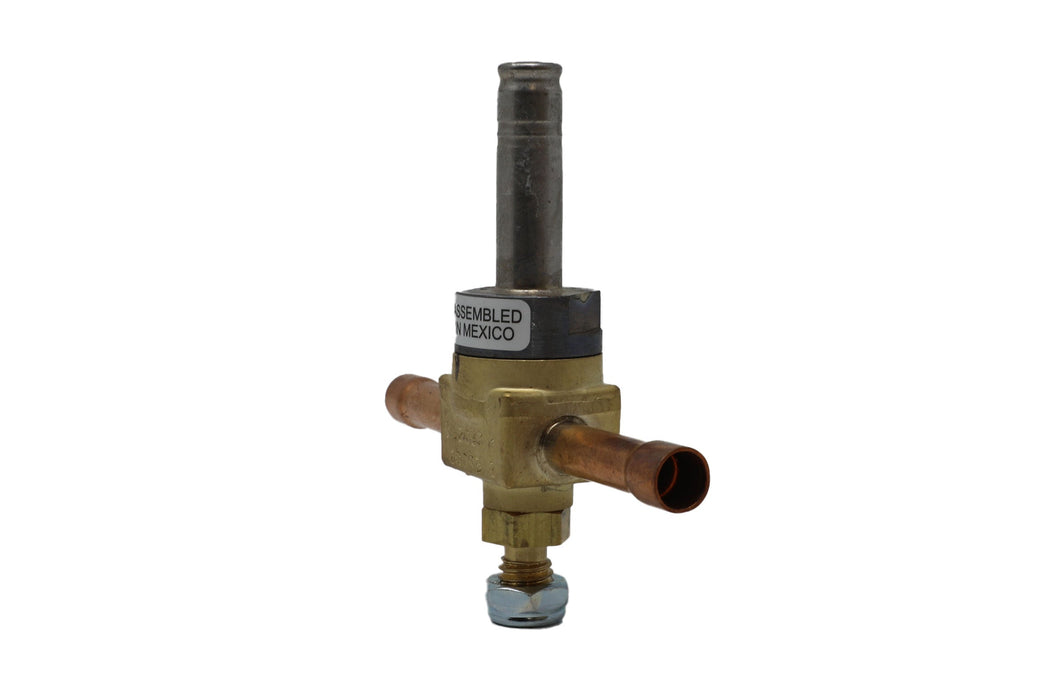

White-Rodgers 200RB 2-Way Pilot-Operated Refrigerant Solenoid Valve 3/8 inches ODF

Product Description

The White-Rodgers 200RB is a pilot-operated, two-way, normally closed valve suitable for refrigerant services, including liquid, discharge, and suction gas applications. This solenoid valve comes with extended ends that simplify installation and features long-life molded coils. The design includes a straight-through body style with a mounting stud and PTFE O-ring for improved sealing.

• One coil fits all valve sizes
• Extended ends for easy installation
• Long-life molded coils

Product Highlights

The White-Rodgers 200RB provides reliable performance in various refrigerant applications, ensuring effective operation across different conditions.

Product Information

Standard Information

• Brand: White-Rodgers
• Manufacturer Part Number: 200RB 4T4TVLC

Technical Specifications

• Valve Type: Pilot Operated, 2-Way, Normally Closed
• Inlet Connection Size: 3/8 inches ODF Extended End
• Outlet Connection Size: 3/8 inches ODF Extended End
• Special Feature: Mounting Stud
• Maximum Fluid Temperature: 250 °F
• Maximum Working Pressure: 680 psig
• Minimum Operating Pressure Drop: 2 psi
• MOPD: 300 psig
• Approvals: UL/CUL File Number MP604
• UPC: 681344656209
