Product Description

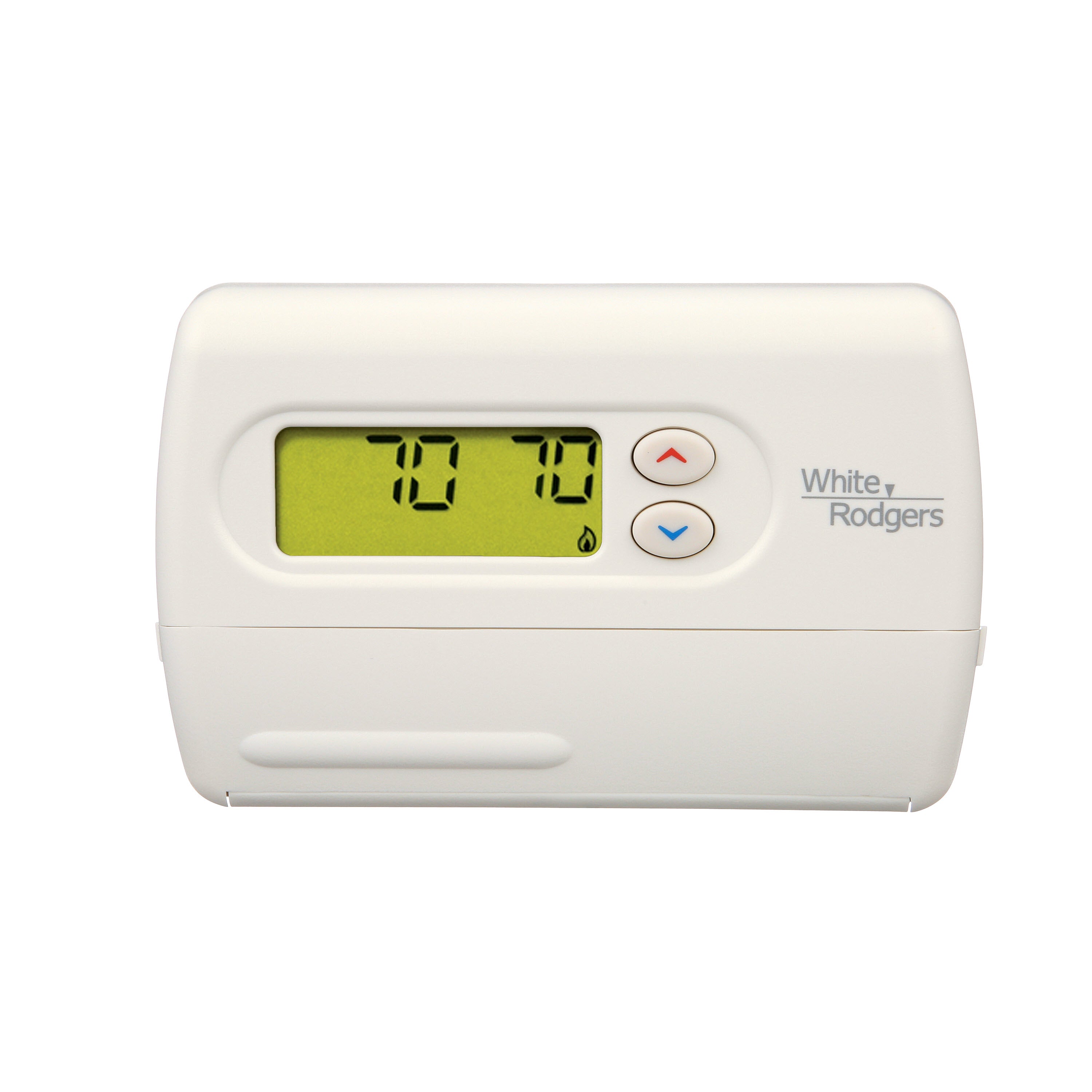

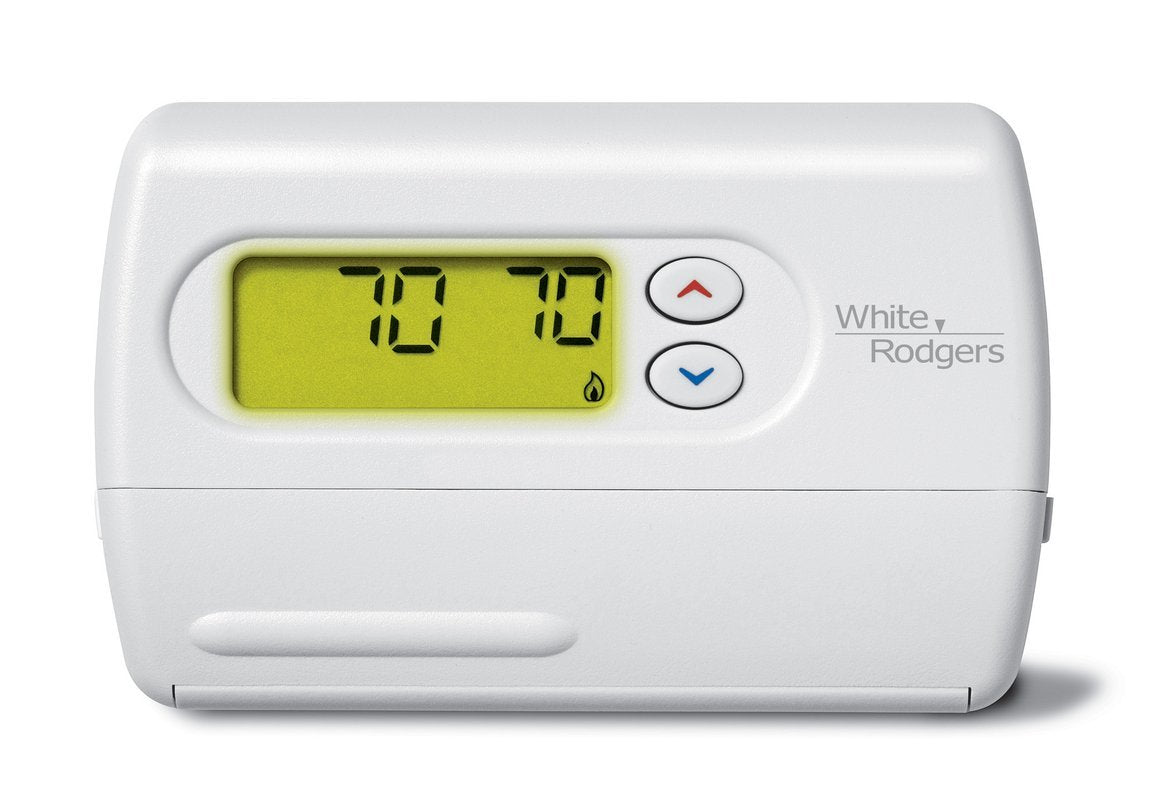

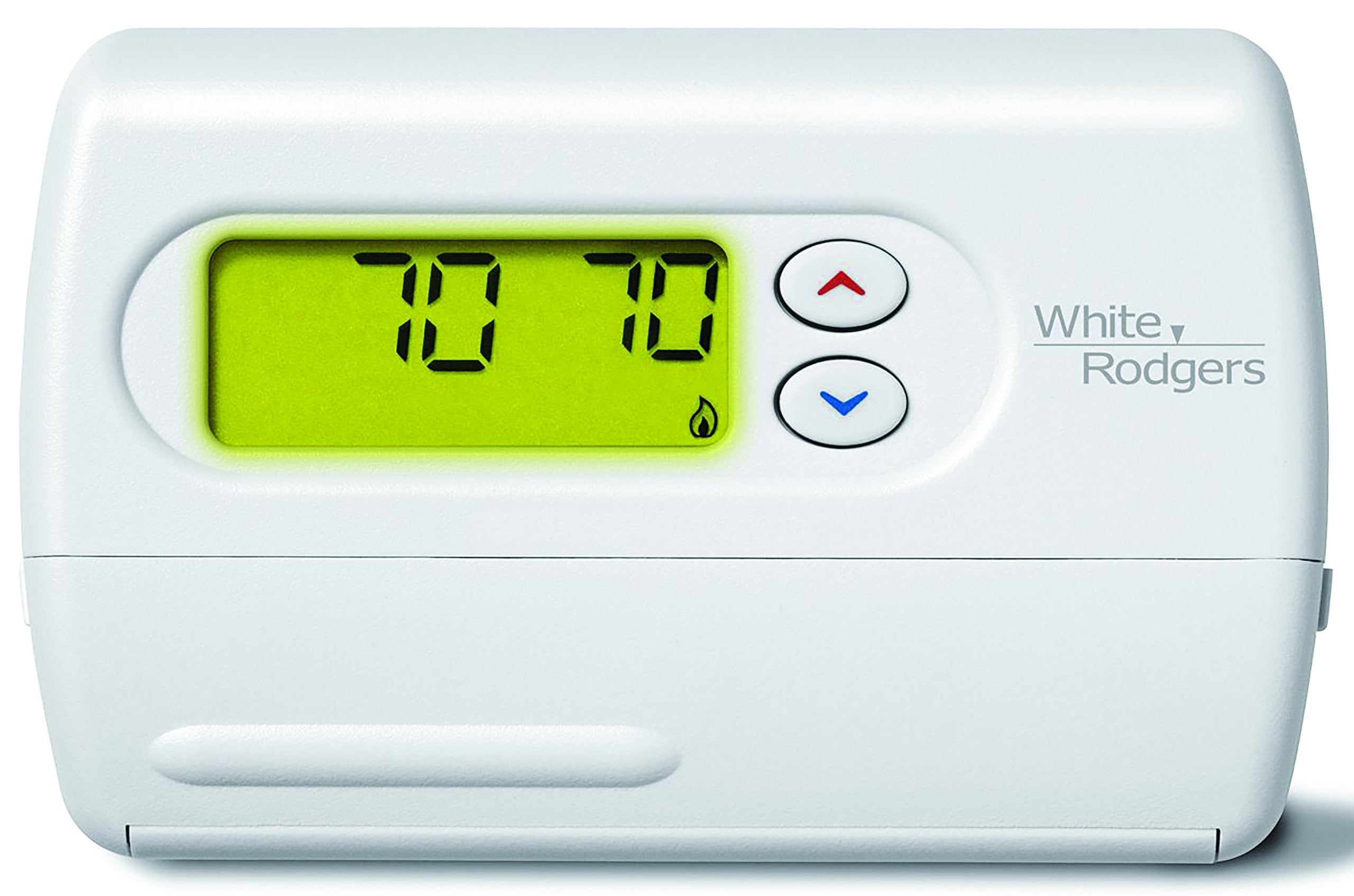

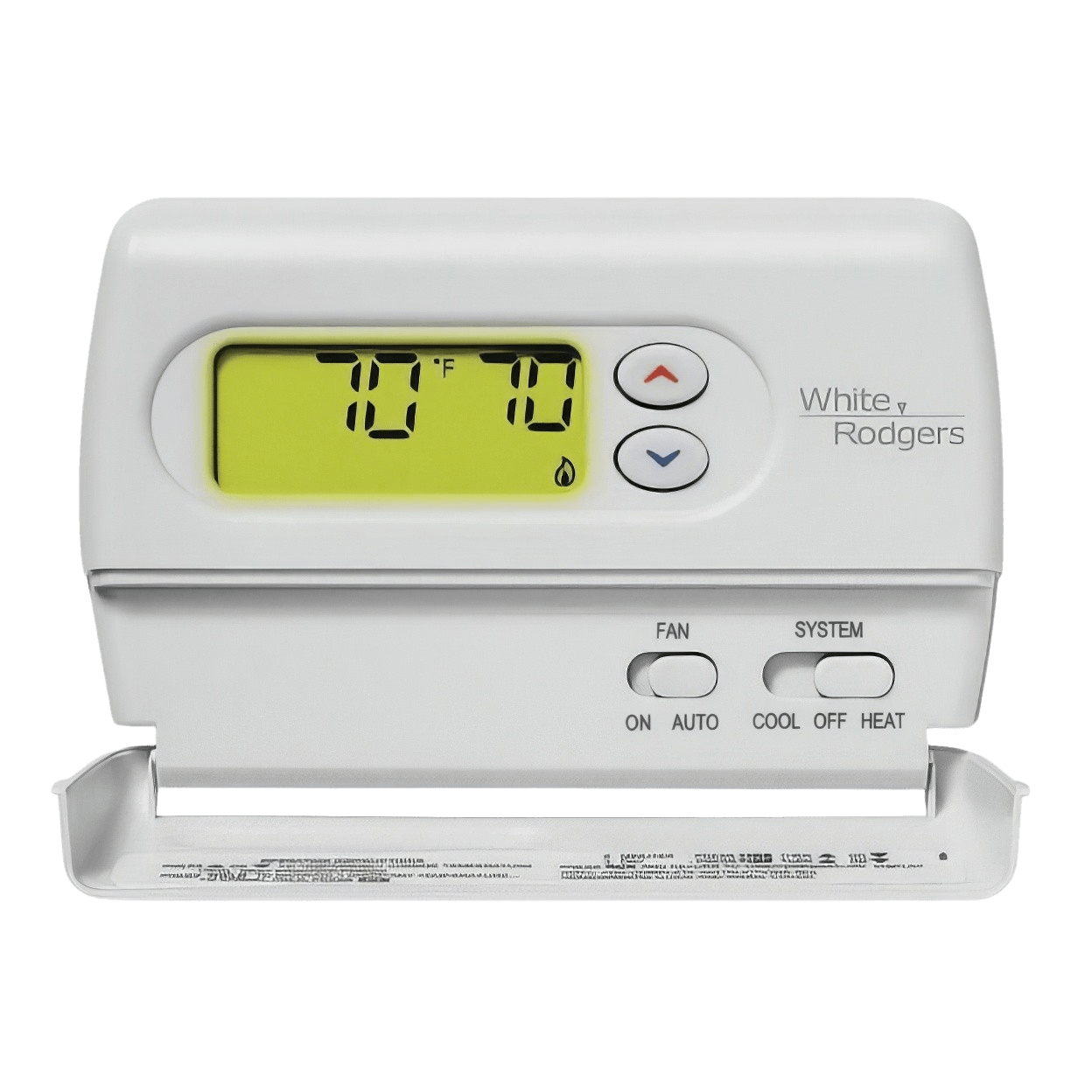

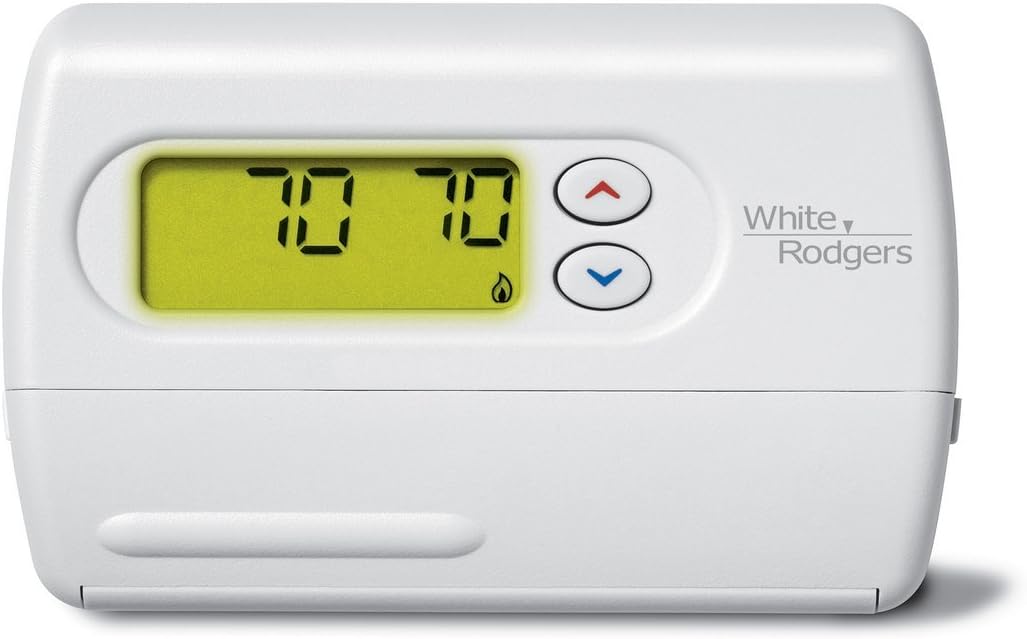

The White-Rodgers 1F86-344 80 Series Standard Single S thermostat features a digital display and button control. This non-programmable thermostat offers precise temperature control for both conventional and heat pump systems. It can be battery powered or hardwired for flexible installation. The thermostat has auto changeover capabilities.
- Digital display
- Button control
- Auto Changeover
Product Highlights
This thermostat provides dependable temperature control for conventional and heat pump systems. Its backlit LCD display allows for accurate temperature monitoring and adjustment.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 1F86-344
-
Country of Origin: Import
Technical Specifications
-
Color: White
-
Style: 80 Series
-
Voltage: 24 Volts
-
Backlight: Yes
-
Control Type: Button Control
-
Special Feature: Filter Indicator, Low Battery Indicator, Low Voltage, Temperature Display
-
Special Features: Auto Changeover
-
Series: Classic 80
-
Type: Digital, Non-Programmable Thermostat
-
Temperature Control Range: 45 to 90 deg F
-
Terminal Designations: RC, RH, C, W, Y, O/B
-
System Switching: Heat/Cool/Off
-
Fan Switching: Auto/On
-
Stages: 2 Stage, 1 Stages Heat, 1 Stages Cool
-
Humidity: 90% Non-Condensing
-
Display: 2.2 in Back-Lit
-
Power Source: Battery
-
Mounting: Horizontal
-
Application: Gas, Oil or Electric; Millivolt, Single Stage (Heat/Cool)
-
Programmability: Non-Programmable
-
User Interface: Soft Key, Push Button
-
Power Method: Battery or Hardwired
-
Temperature Range (F): 45°-90°F
-
Voltage Rating: Millivolt to 30 Volt AC (Battery), 20 to 30 Volt AC 50/60 Hertz (Hardwire)
-
Current Rating: 1.5 Amp
-
Temperature Rating: 32 to 105 Deg F
-
Approval: UL, CSA, AHRI, ACCA, ISO 9001, NEC Class 2
-
Brand: WHITE-RODGERS
-
Item Number: 1F86-344
-
MPN: 1F86-344
-
UPC: 786710520266
-
Model Name: 1F86-344, Classic 80 Series Thermostats
-
Specific Uses For Product: Air Conditioner, Heat Pump
-
Temperature Control Type: Manual
-
Included Components: 2 AA Batteries, Mounting Hardware, Owner's Manual, Thermostat
-
Material: Plastic
-
Shape: Rectangular
-
Display Type: LCD
-
Finish Type: White
-
Control Method: Touch
-
Mounting Type: Wall Mount
-
Number of Batteries: 2 AA batteries required. (included)
-
Part Number: 1F86-344
-
Item model number: 1F86-344
-
Batteries Included?: Yes
-
Batteries Required?: Yes
-
Battery Cell Type: Alkaline
-
Average Battery Life: 20000 Hours
-
Warranty Description: 5 years.
-
Changeover: Manual
-
Filter Monitor: No
-
Keypad Lockout: No
-
Terminal C or X: Yes
-
Terminal E: No
-
Terminal G: Yes
-
Terminal O or O/B: Yes
-
Terminal R, Rh, or Rc: Yes
-
Terminal W or W1: Yes
-
Terminal W2: No
-
Terminal Y or Y1: Yes
-
Terminal Y2: No
-
Touchscreen: No
-
Vacation Hold: No
-
Imprinting Available: Yes
