WHITE-RODGERS 1F85U-22NP Emerson 5 Display, Universal Single Stage, Multi-Stage (2H/2C) Or Heat Pump (3H/2C)

Product Description

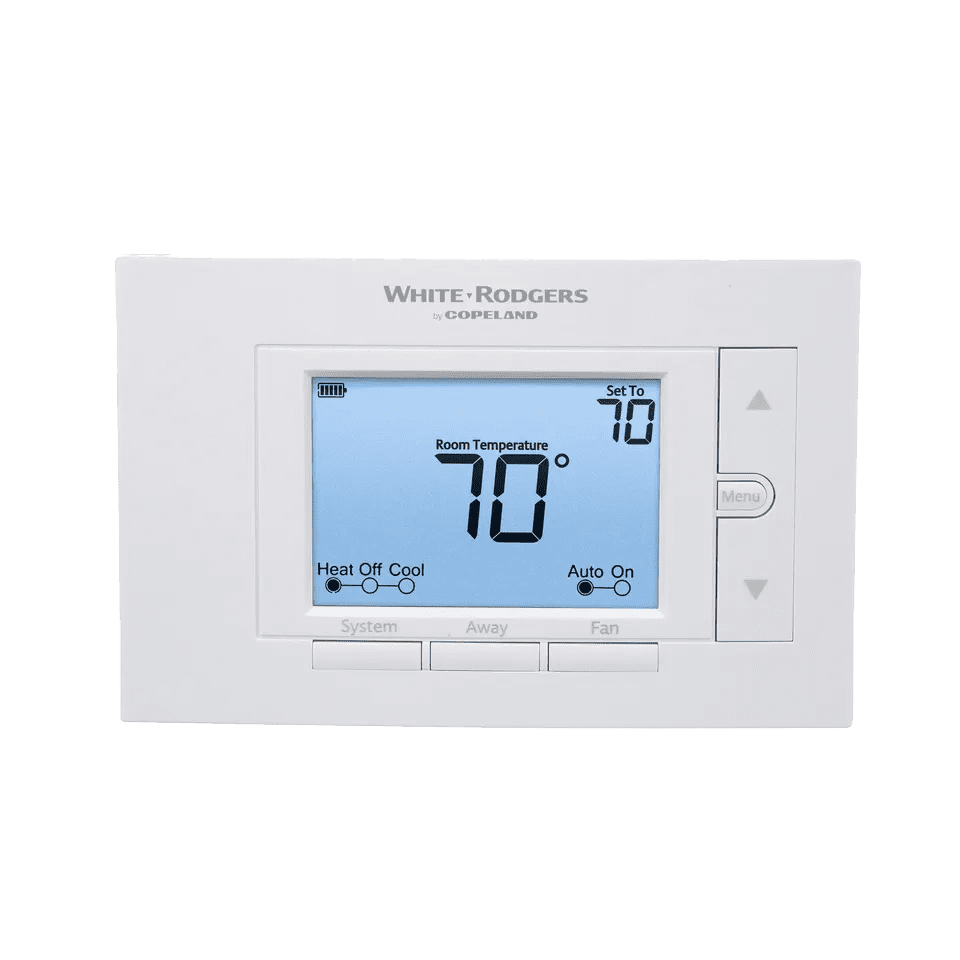

The WHITE-RODGERS 1F85U-22NP is a digital multistage non-programmable thermostat with a clear five-inch display. It is suitable for both residential and commercial settings. This thermostat manages temperature control efficiently, supporting up to two stages of heating and two stages of cooling. The design includes a bright backlight and high contrast for visibility in low light.

• Large, easy-to-read display with backlight.
• Compatible with multiple heating and cooling stages.
• Auto changeover feature for universal models.

Product Highlights

This thermostat is designed for easy installation and operation, making it ideal for trade professionals.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 1F85U-22NP

Technical Specifications

• Temperature Range: 32 to 105 F
• Type: Temperature Control Modules
• Controls Outputs: 2H/2C
• Display: LCD Backlit
• Set Point Range: 45 to 99 F
• Supply Voltage: 24 VAC
• Changeover: Auto changeover
• Stages: Single 1H/1C, Multi-Stage 2H/2C, Heat Pump 2H/1C
• Voltage Rating: mV to 30 VAC Battery, 20 to 30 VAC Hardwire
• Amperage Rating: 1.5 to 2.5 A
• Frequency Rating: 50/60 Hz
• Accuracy: +/-1 deg C
• Differential: 1°
• Mount: Horizontal
• Power Method: Hardwired, Battery
