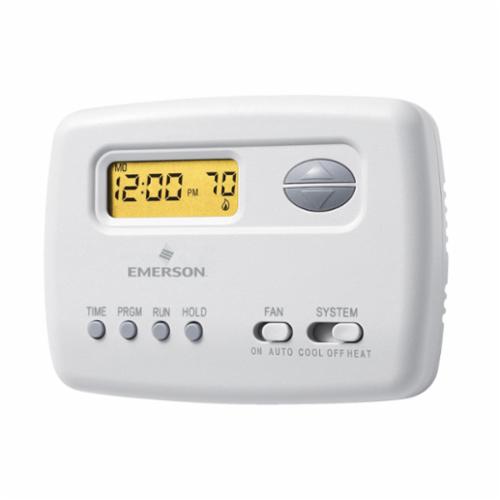

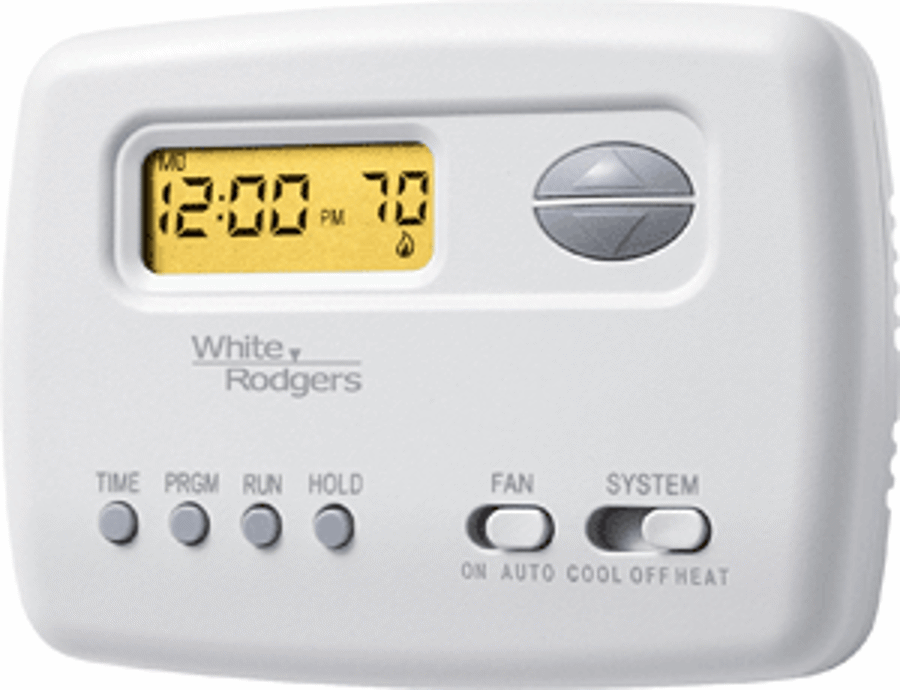

White-Rodgers 1F78-151 70 Series 1-Stage Thermostat, Programmable Thermostat, 45 to 90 deg F Control, 5+2 Days Programs per Week, RC, RH, W, Y, O/B, G Terminal

Product Description

The White-Rodgers 1F78-151 is a programmable thermostat designed for residential single-stage and heat pump applications. This energy-efficient thermostat operates within a temperature range of forty-five to ninety degrees Fahrenheit. It features a simple installation process, covering wall marks left by mechanical thermostats. The 5+2 days programmable weekly schedule allows for tailored temperature management, enhancing comfort and energy savings.

• Compatible with fossil fuel or electric heating systems
• Large LCD display with backlight for easy reading
• Includes various terminal designations: RC, RH, W, Y, O/B, G

Product Highlights

This thermostat incorporates auto fan switching and supports heating and cooling systems. The electronic accuracy ensures precise temperature control.

Product Information

Standard Information

• Brand: White-Rodgers
• Manufacturer: Emerson Electric

Technical Specifications

• MPN: 1F78-151
• Series: 70 Series
• Dimensions: 5-1/8 inches W x 1-1/8 inches D x 3-13/16 inches H
• Power Source: Battery/Hardwired
• Control Range: 45 to 90 degrees Fahrenheit
• Voltage Rating: 20 to 30 VAC
• Humidity Range: 90% Non-Condensing
• Number of Stages: 2
• Programs per Week: 5+2 Days
