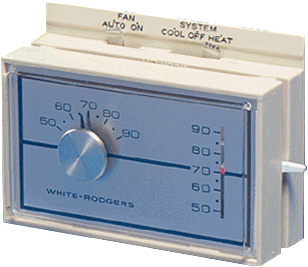

White-Rodgers 1F56-301 Single-Stage Low Voltage Vertical/Horizontal Thermostats

Product Description

The White-Rodgers 1F56-301 is a single-stage low voltage thermostat designed for both vertical and horizontal applications. This device features sealed mercury cells, which provide reliable temperature control in heating and cooling systems. It is a non-programmable mechanical thermostat that adjusts based on room temperature.

• Single-stage, non-programmable design
• Compatible with heating and cooling systems
• Temperature range from fifty to ninety degrees Fahrenheit

Product Highlights

This thermostat includes a selector switch for easy operation between heating and cooling modes. Its adjustable anticipators allow users to fine-tune the device for precise temperature control.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 1F56-301

Technical Specifications

• Temperature Range: 50°F to 90°F (10°C to 32°C)
• Heating Anticipator: Adjustable 0.15A to 1.2A
• Cooling Anticipator: Fixed 0 to 1.5A
• Construction: Dustproof sealed mercury cells
• Switch Type: Positive contact snap-switches
• Thermometer: Bimetal thermometer
• Fan Control: Auto/on fan setting
