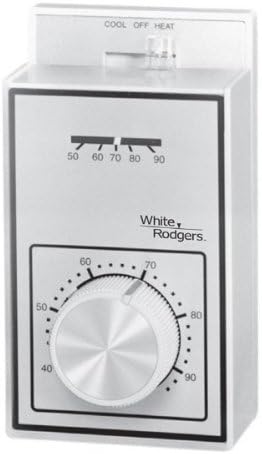

White-Rodgers 1A10-651 Light Duty Line Voltage Thermostat

Product Description

The White-Rodgers 1A10-651 is a light duty line voltage thermostat designed for controlling fan coils, fans, motor starters, and circulator motors. It operates at 120, 240, and 277 volts AC. This thermostat features an adjustable temperature range from thirty-six degrees Fahrenheit to ninety degrees Fahrenheit with an optional setpoint locking feature.

• SPDT control type for versatile applications
• Temperature range adjustment and setpoint locking
• Compatible with S29-21 or S29-22 subbases

Product Highlights

This thermostat is suitable for heating, cooling, and SPDT applications. It mounts easily on a two by four electrical box and is available for both horizontal and vertical installation.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 1A10-651

Technical Specifications

• Voltage: 120/240/277 VAC
• Control Type: SPDT
• Temperature Differential: 1.5 Degrees F
• Temperature Range: 36 to 90 Degrees F
• Electrical Ratings: 8 AMP at 120 VAC, 4 AMP at 240/277 VAC
• Mounting: Vertical or Horizontal
• Setpoint Lock: Yes
• Subbase Compatibility: S29-21 or S29-22
