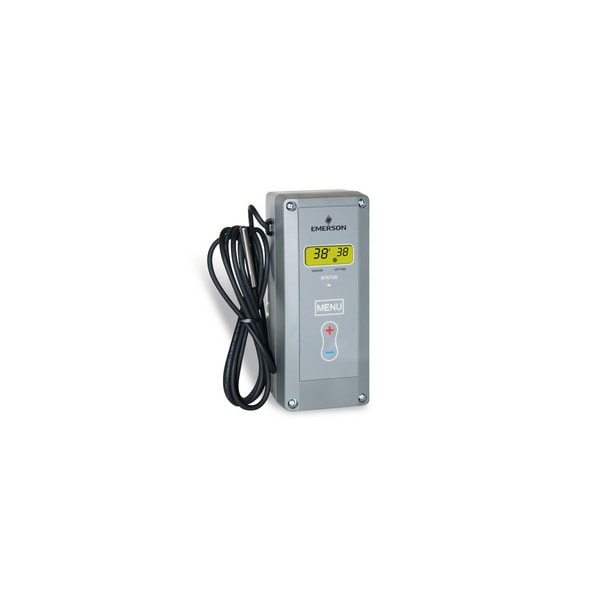

White Rodgers 16E09-101 Electronic Temperature Control -40 to 220 Degrees Fahrenheit

Product Description

The White-Rodgers 16E09-101 is an electronic temperature control designed for refrigeration and hydronic heating systems. It has a control range from -40 to 220 degrees Fahrenheit and operates with a SPDT switch. This model supports multiple voltage inputs of 24, 120, 208, and 240 VAC.

• Temperature range: -40 to 220 degrees Fahrenheit
• Multiple voltage options: 24/120/208/240 VAC
• Up to 16 A load capacity

Product Highlights

This control offers precise temperature management and includes alarm outputs with selectable delay. It features an adjustable anti-short cycle delay and is designed for easy installation and programming in various HVAC applications.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 16E09-101
• Country of Origin: China
• Domestic/Import: Import
• Application: Temperature Control

Technical Specifications

• Control Range: -40 to 220 degrees Fahrenheit
• Switch Action: SPDT
• Voltage Rating: 24/120/208/240 VAC
• Amperage Rating: 16 to 8 A
• Dimensions: 6-3/4 inches H x 3 inches W x 2-9/16 inches D
• Humidity Range: 0 to 95% relative humidity
• Storage Temperature: -40 to 185 degrees Fahrenheit
• Operating Temperature: -29 to 140 degrees Fahrenheit
