White-Rodgers 081068 bvss-058t refrigeration ball valve w/ access valve, brass locking seal cap, thread holes 5/8 inches odf

Product Description

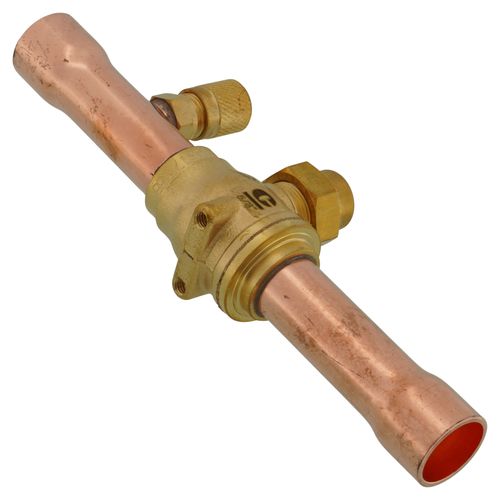

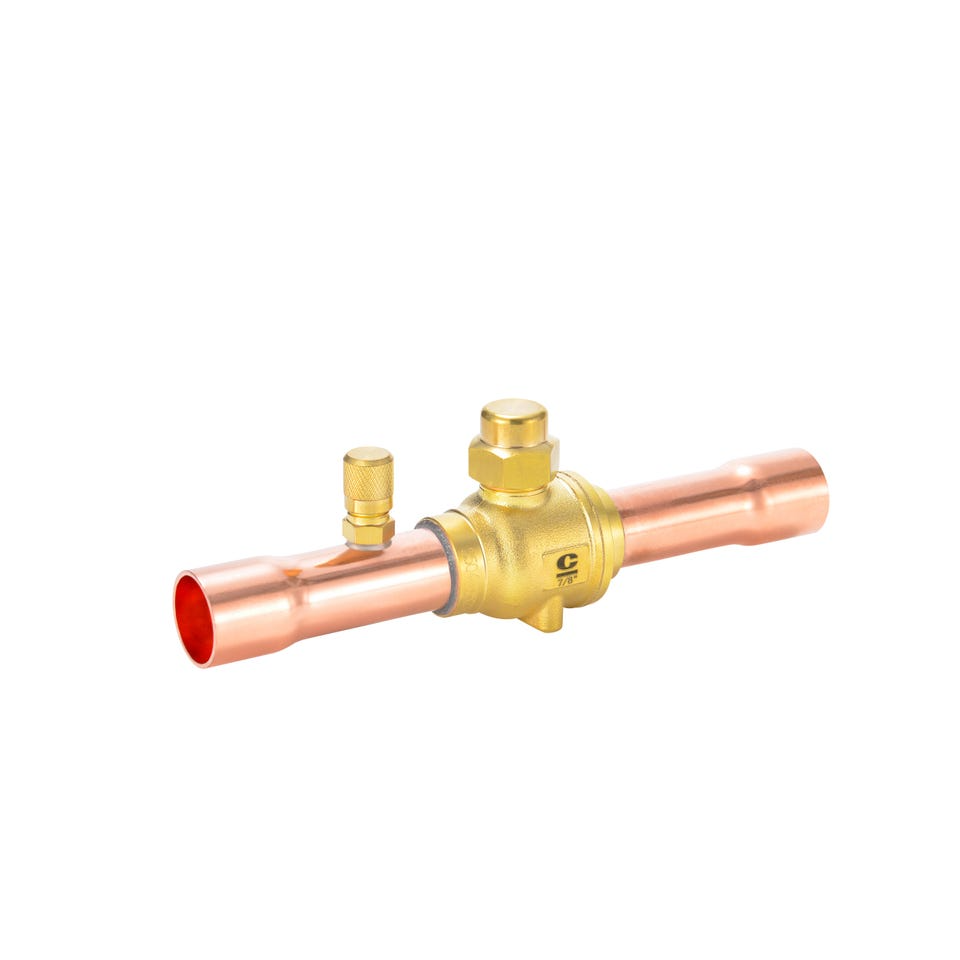

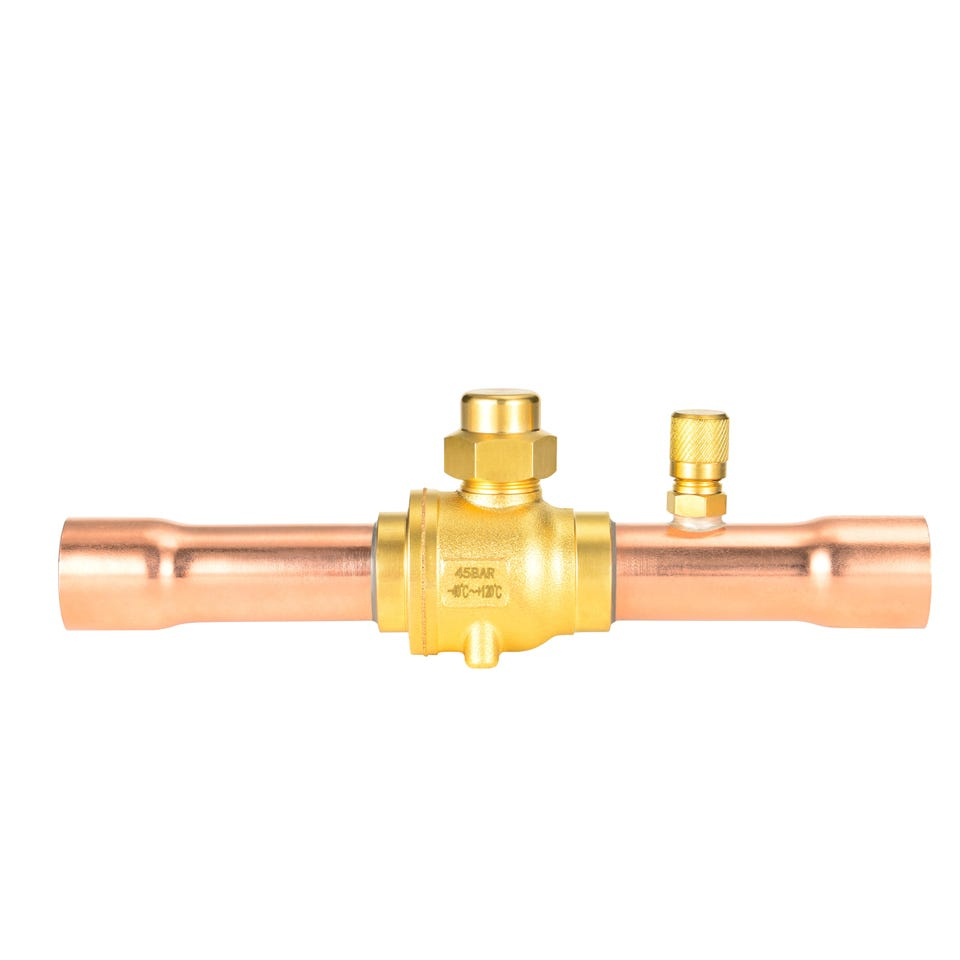

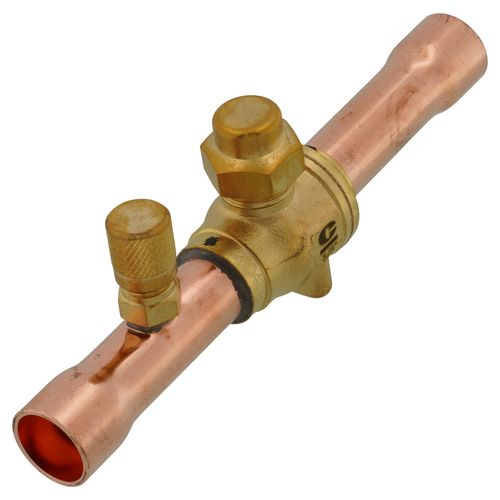

The WHITE-RODGERS 081068 is a 5/8" ODF BVSS-058T Refrigeration Ball Valve designed for isolating suction, discharge, and liquid lines during maintenance. This welded refrigeration ball valve features an integrated access valve and a brass locking seal cap. It is equipped with 5/8" ODF connections and threaded mounting holes for secure installation, supporting bi-directional flow. The valve is compatible with HCFC, HFC, A1, A2L, and A3 refrigerants.

• 5/8" ODF connections for welded refrigeration systems.
• Integrated access valve with a pre-installed core.
• Brass locking seal cap for secure operation.

Product Highlights

Welded refrigeration ball valve with access valve, brass locking seal cap, and 5/8" ODF connections for line isolation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081068

Technical Specifications

• Product Type: Ball Valve
• Connection Type: ODF
• Size: 5/8"
• Maximum Working Pressure: 650 psig (45 bar)
• Fluid Temperature Range: -40°F/-40°C to 248°F (120°C)
• Ambient Temperature Range: -22°F (-30°C) to 140°F (60°C)
• UL File Number: SA45472
• Overall Length: 5.91 inches
