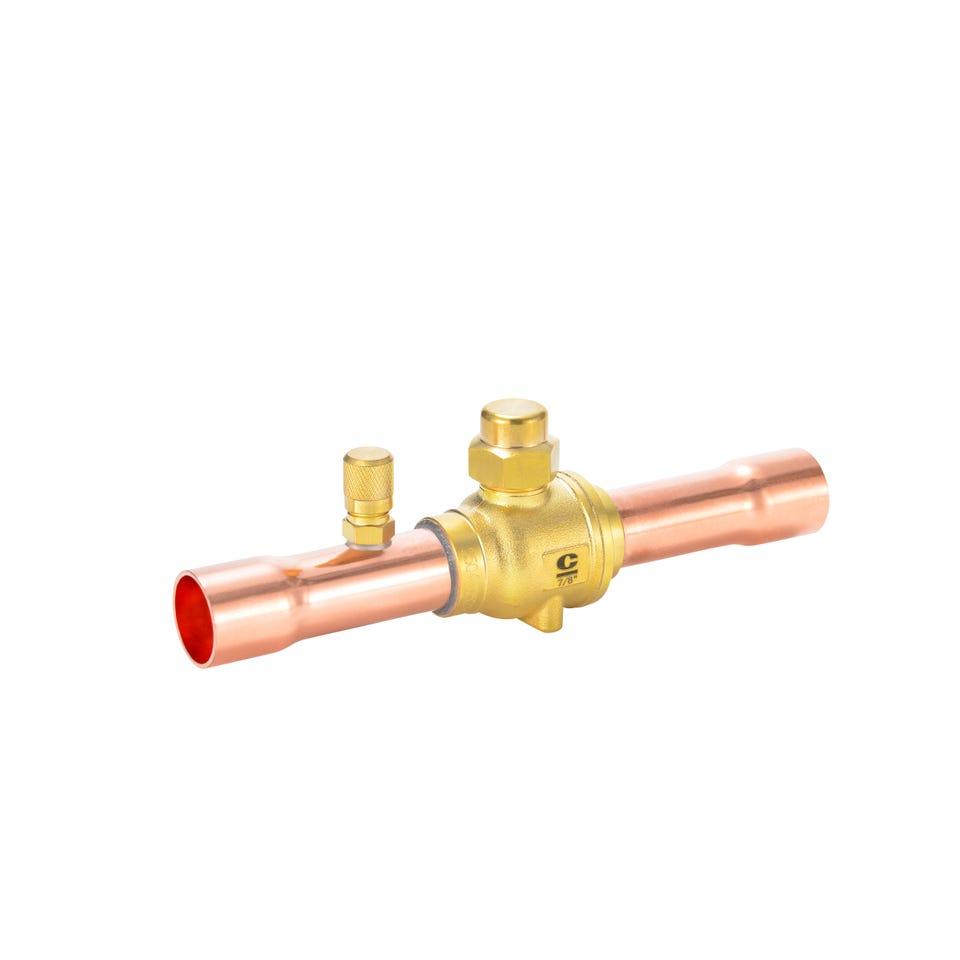

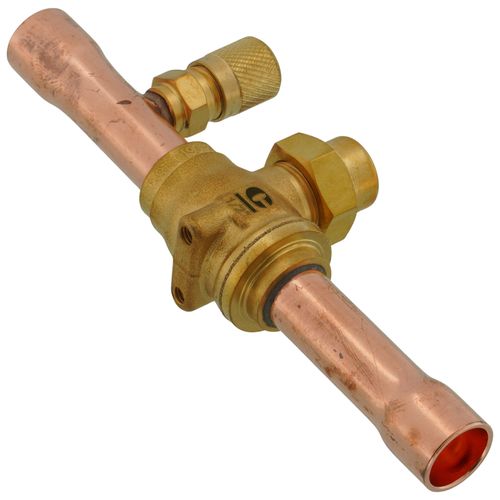

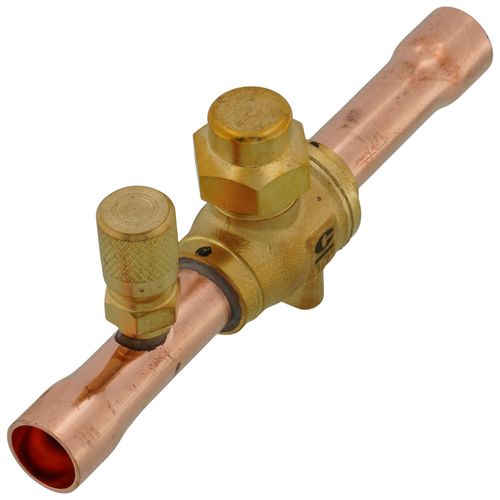

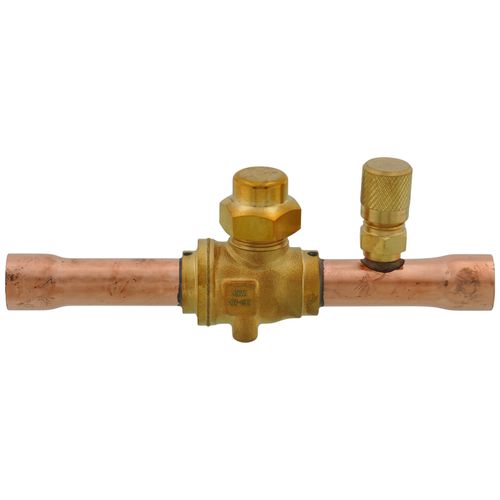

White-Rodgers 081067 BVSS-012T Refrigeration Ball Valve with Access Valve 1/2 inches ODF

Product Description

The WHITE-RODGERS 081067 BVSS-012T is a refrigeration ball valve designed to isolate suction, discharge, and liquid lines during maintenance shutdowns. This 1/2" ODF ball valve features an integrated access valve and a brass locking seal cap, ensuring secure operation. It is engineered with a low operating friction design and a full port for efficient flow, compatible with various refrigerants.

• Low operating friction design
• Integrated access valve
• Full port design

Product Highlights

Features low operating friction, an integrated access valve, and a full port design for efficient refrigeration system isolation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081067

Technical Specifications

• Product Type: Ball Valve
• Connection Type: ODF
• Size: 1/2"
• Maximum Working Pressure: 650 psig (45 bar)
• Fluid Temperature Range: -40°F to 248°F (-40°C to 120°C)
• Ambient Temperature Range: -22°F to 140°F (-30°C to 60°C)
• UL File Number: SA45472
