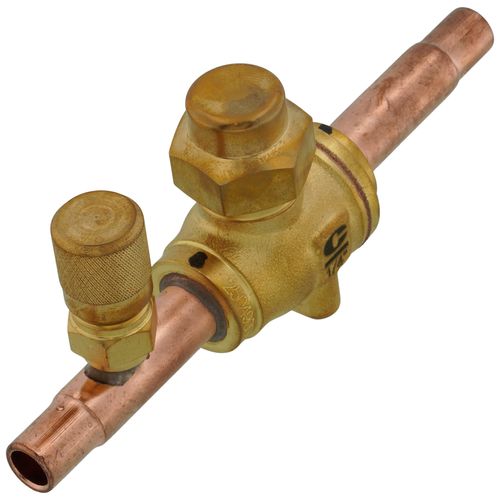

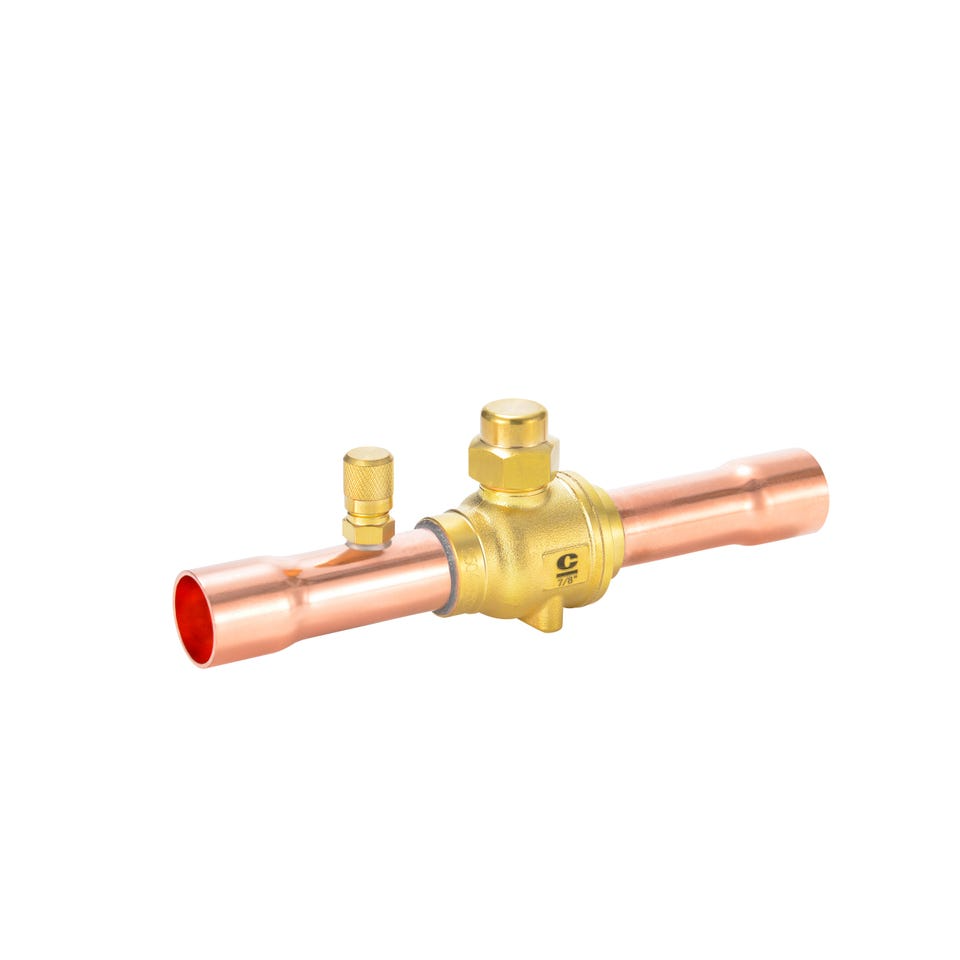

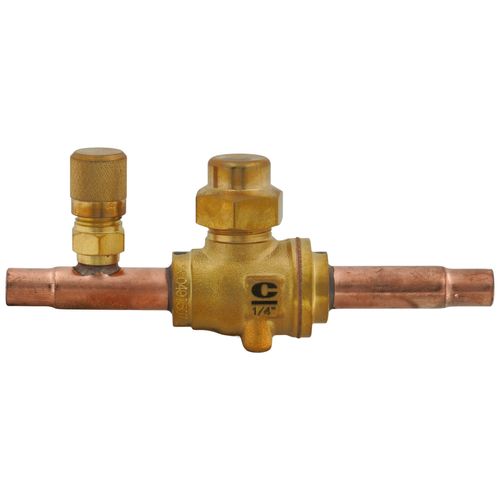

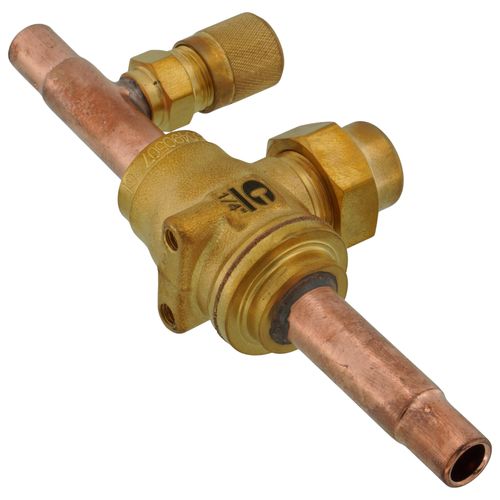

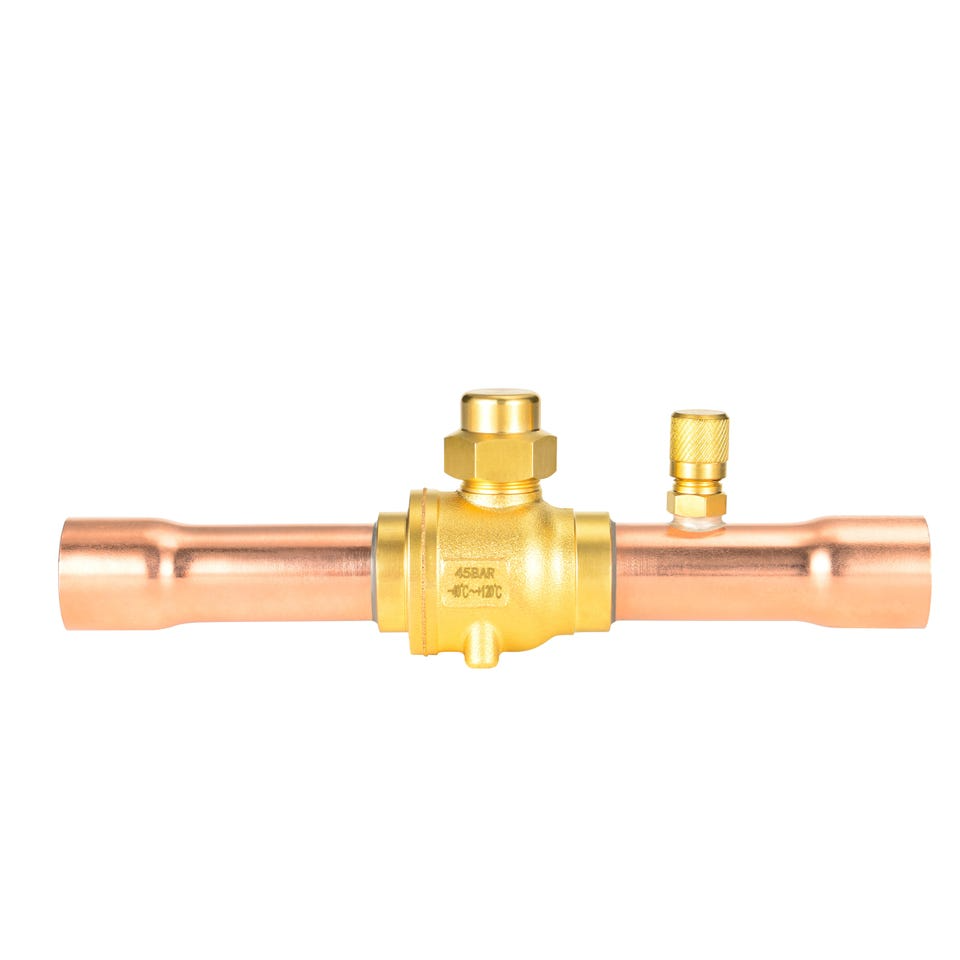

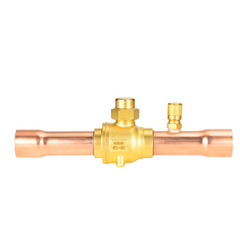

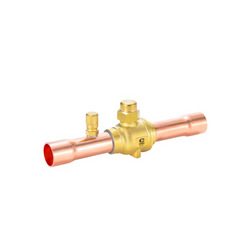

White-Rodgers 081065 BVSS-014T 1/4 inches ODF Refrigeration Ball Valve with Access Valve, Brass Locking Seal Cap, Thread Holes

Product Description

The WHITE-RODGERS 081065 BVSS-014T is a 1/4" ODF refrigeration ball valve designed for isolating suction, discharge, and liquid lines during maintenance. This ball valve features bi-directional flow characteristics and a compact, lightweight, hermetic welded design. It is compatible with all A1 class refrigerants and R32, operating within a fluid temperature range of -40°F (-40°C) to 248°F (120°C). The valve includes an access valve and a brass locking seal cap for secure operation.

• Bi-directional flow characteristics
• Compact, lightweight, hermetic welded design
• Compatible with all A1 class refrigerants and R32

Product Highlights

Bi-directional flow and hermetic welded design for reliable refrigeration system isolation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081065

Technical Specifications

• Connection Type: ODF
• Product Type: Ball Valve
• Size: 1/4"
• Maximum Working Pressure: 650 psig (45 bar)
• Fluid Temperature Range: -40°F (-40°C) to 248°F (120°C)
• Ambient Temperature Range: -22°F (-30°C) to 140°F (60°C)
• UL File Number: SA45472
