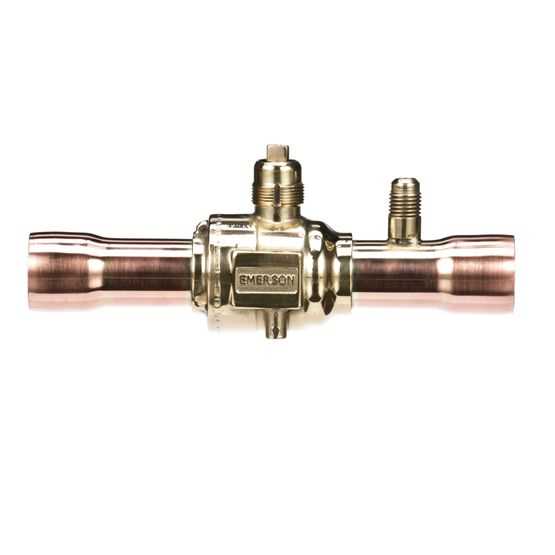

White-Rodgers 081022 BVSS Series Refrigeration Ball Valve w/ Access Valve 2-1/8 inches ODF

Product Description

The WHITE-RODGERS 081022 is a BVSS Series welded refrigeration ball valve designed for efficient fluid control. It features 2-1/8" ODF connections and a brass locking seal cap, suitable for various refrigeration applications. Constructed with a forged brass body, this valve ensures durability and reliable performance in demanding environments, handling a maximum working pressure of 650 psig.

• Forged brass body with hermetic weld design
• Copper ODF connections
• Brass locking seal caps

Product Highlights

This ball valve offers full port design and an integrated access valve for enhanced functionality in refrigeration systems.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081022

Technical Specifications

• Product Type: Ball Valve
• Size: 2-1/8"
• Connection Type: ODF
• Body Material: Forged Brass
• Connection Material: 100% Copper
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Certifications: UL/CUL SA 5312
