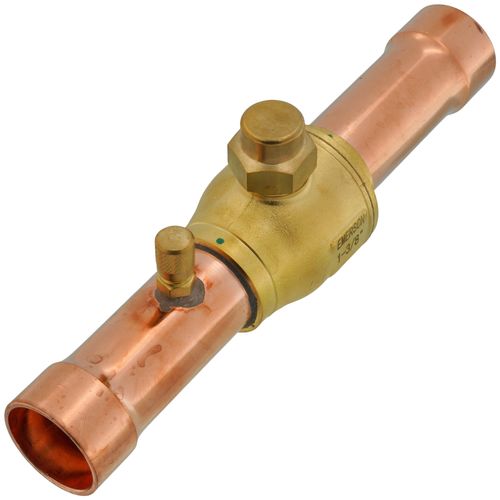

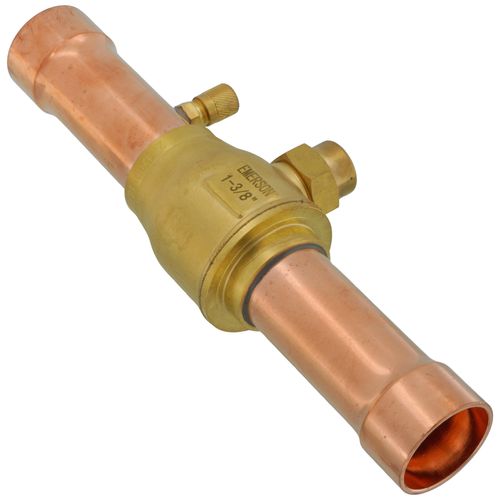

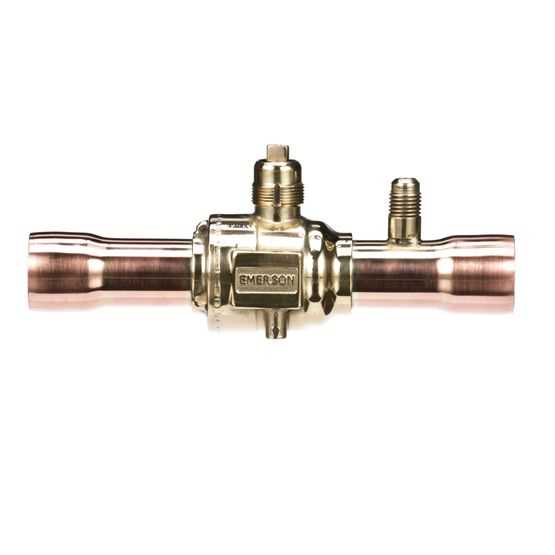

White-Rodgers 081020 BVSS Series Refrigeration Ball Valve with Access Valve 1-3/8 inches ODF

Product Description

The WHITE-RODGERS 081020 BVSS Series Refrigeration Ball Valve is a welded valve designed with an access valve and 1-3/8" ODF connections. Constructed from forged brass, it features 100% copper connections and brass locking seal caps. This ball valve is suitable for refrigeration systems, offering a maximum working pressure of 650 psig and a fluid temperature range from -40°F to 250°F.

• 1-3/8" ODF Connection
• Forged brass body with hermetic weld design
• Full port design on all sizes

Product Highlights

This BVSS Series ball valve ensures reliable flow control in refrigeration applications with its robust forged brass construction and integrated access valve.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081020

Technical Specifications

• Body Material: Forged Brass
• Extended Tube Material: 100% Copper
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• UL/CUL File Number: SA 5312
• Product Type: Ball Valve
• Size: 1-3/8"
• Connection Type: ODF
