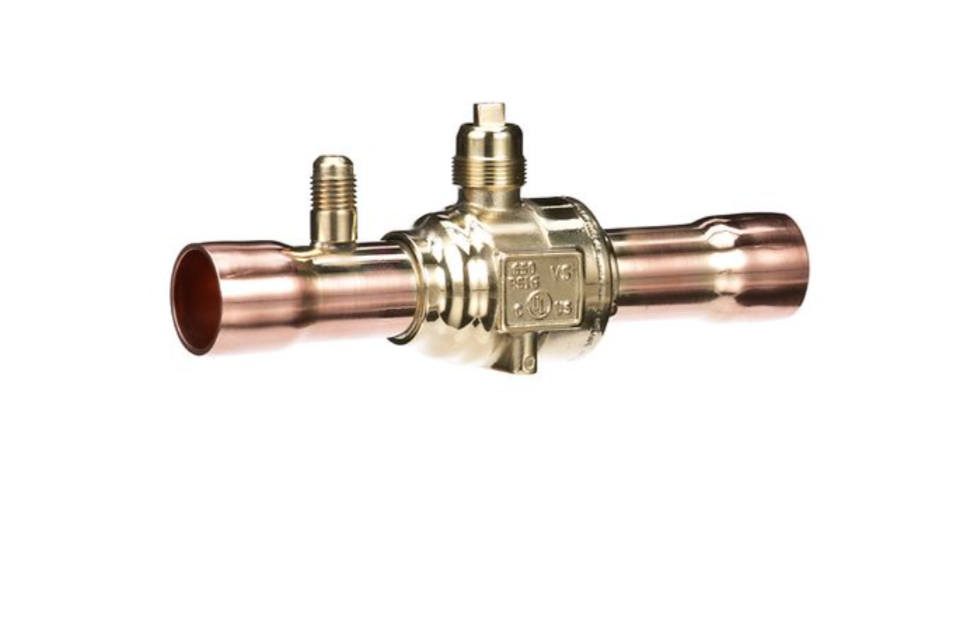

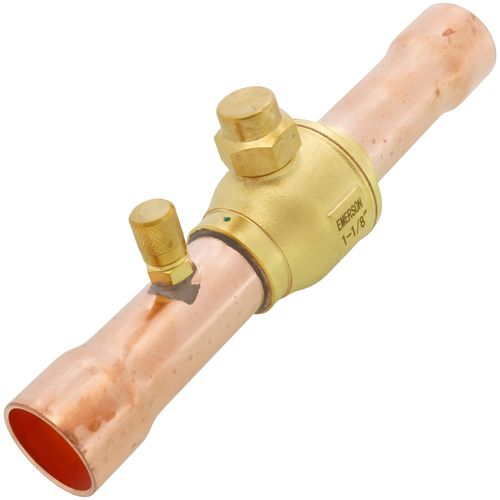

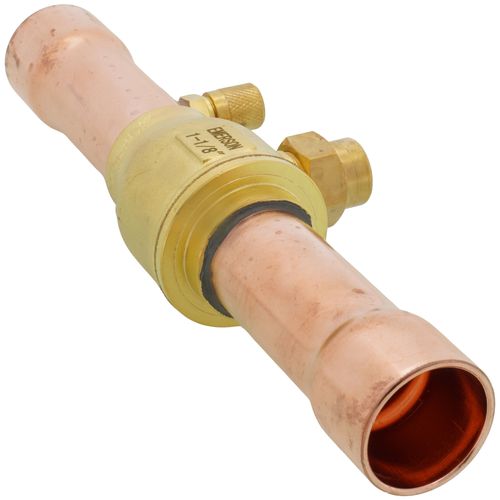

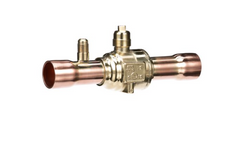

White-Rodgers 081019 BVSS series refrigeration ball valve with access valve 1-1/8 inches ODF brass locking seal cap

Product Description

The WHITE-RODGERS 081019 BVSS Series Refrigeration Ball Valve is a welded refrigeration ball valve designed with an access valve, 1-1/8" ODF connections, and a brass locking seal cap. This valve isolates suction, discharge, and liquid lines during maintenance shutdown periods. Constructed with a forged brass body and 100% copper ODF connections, it ensures reliable performance in refrigeration systems.

• Forged brass body with hermetic weld design
• Copper ODF connections
• Brass locking seal caps

Product Highlights

Designed for refrigeration systems, featuring a forged brass body, 1-1/8" ODF connections, and an integrated access valve for maintenance.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081019
• Country of Origin: China

Technical Specifications

• Body Material: Forged Brass
• Construction: Extended Tubes, 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Certifications: UL/CUL File Number SA5312 (BVE/BVS); UL/CUL File Number SA32723(BVSS)
• Product Type: Ball Valve
• Size: 1-1/8"
• Connection Type: ODF
• Model: BVSS 118
