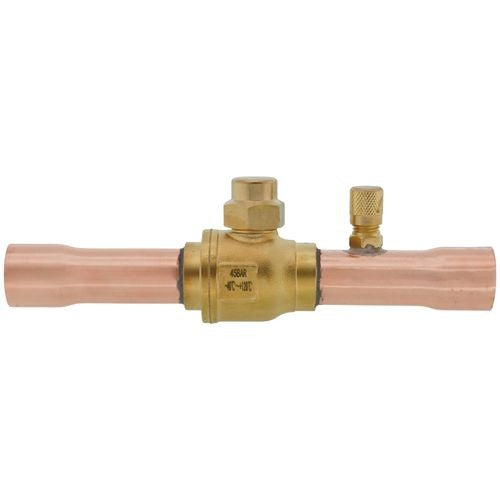

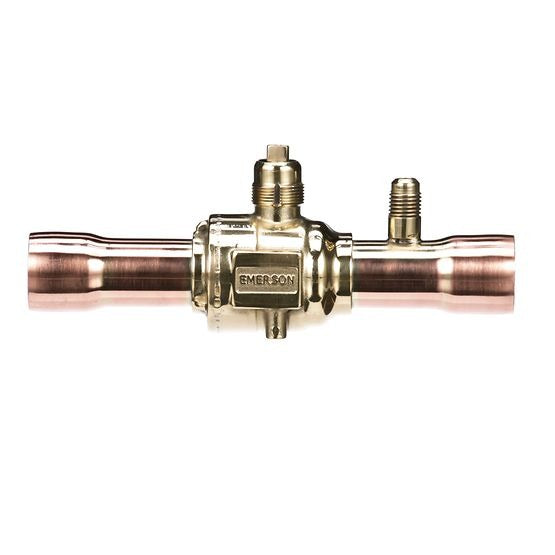

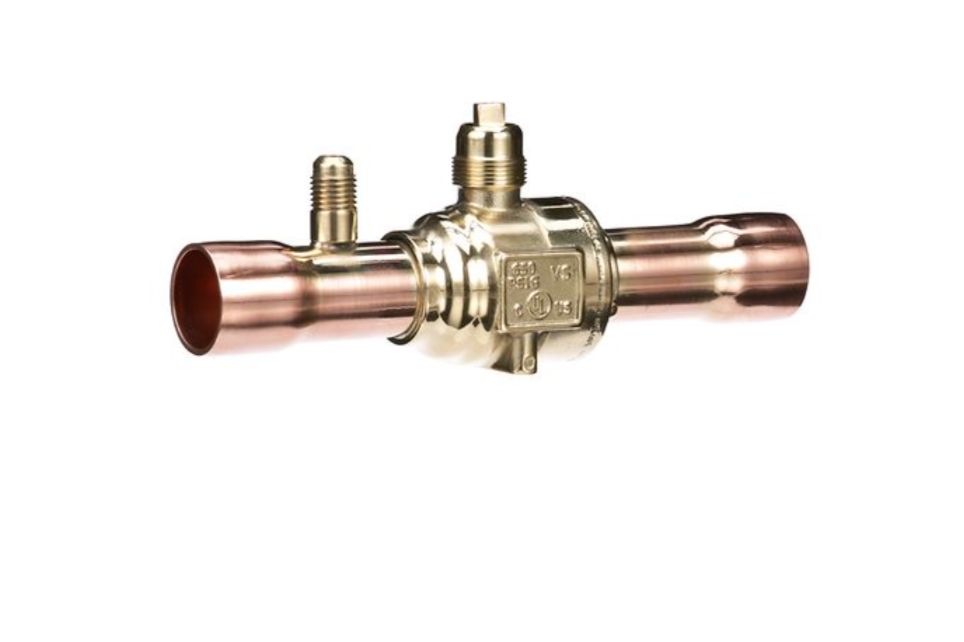

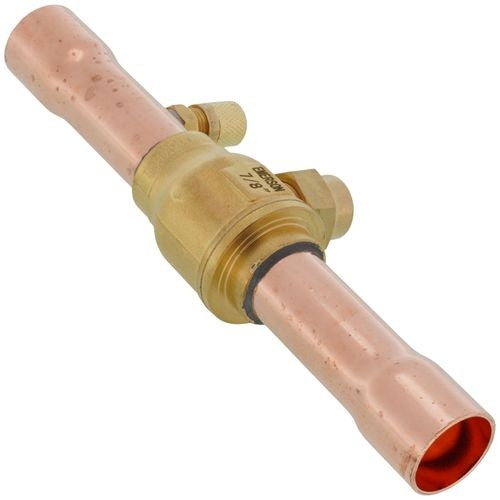

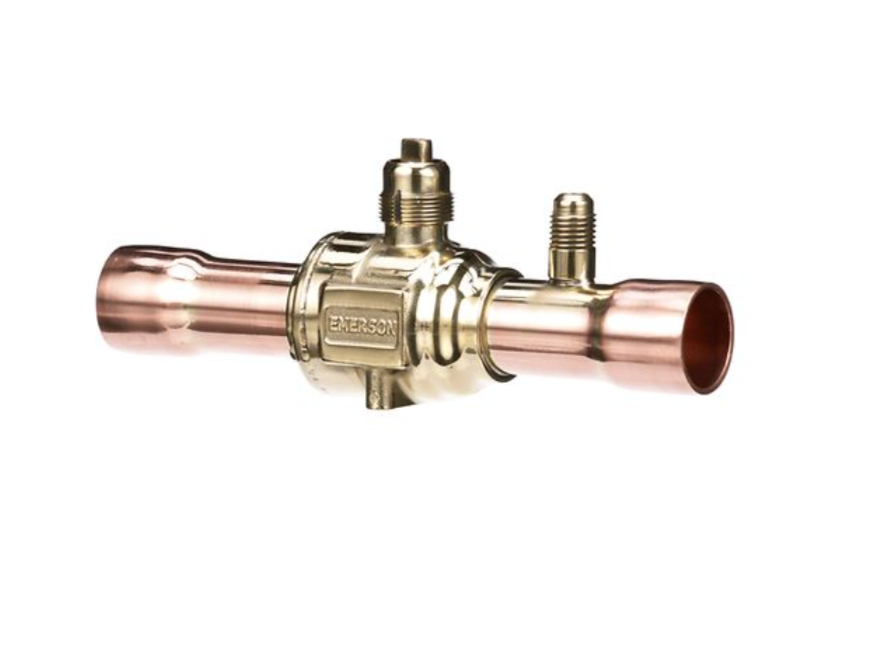

White-Rodgers 081018 Bvss series refrigeration ball valve 7/8 inches ODF

Product Description

White-Rodgers 081018 is a BVSS series welded refrigeration ball valve with an integrated access valve and brass locking seal cap, designed to isolate suction, discharge, and liquid lines during maintenance. It features a forged brass hermetic welded body with 100% copper 7/8" ODF connections, full port bi-directional flow, and low operating friction. The valve is rated to 650 psig, operates from -40°F to 250°F (302°F short term), and is compatible with A1 class refrigerants including R-410A and R32.

• Forged brass hermetic welded body with 100% copper 7/8" ODF connections
• Full port design with bi-directional flow and low operating friction
• Integrated access valve and brass locking seal cap; maximum working pressure 650 psig; fluid temperature range -40°F to 250°F (302°F short term)

Product Highlights

BVSS series welded refrigeration ball valve; 7/8" ODF full port; forged brass body; rated 650 psig; compatible with A1 refrigerants including R-410A and R32.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081018
• Country of Origin: China
