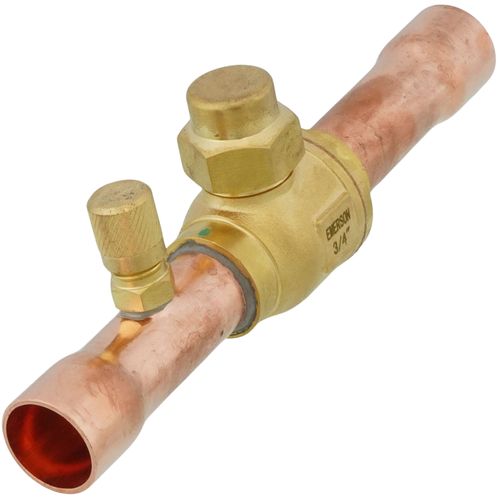

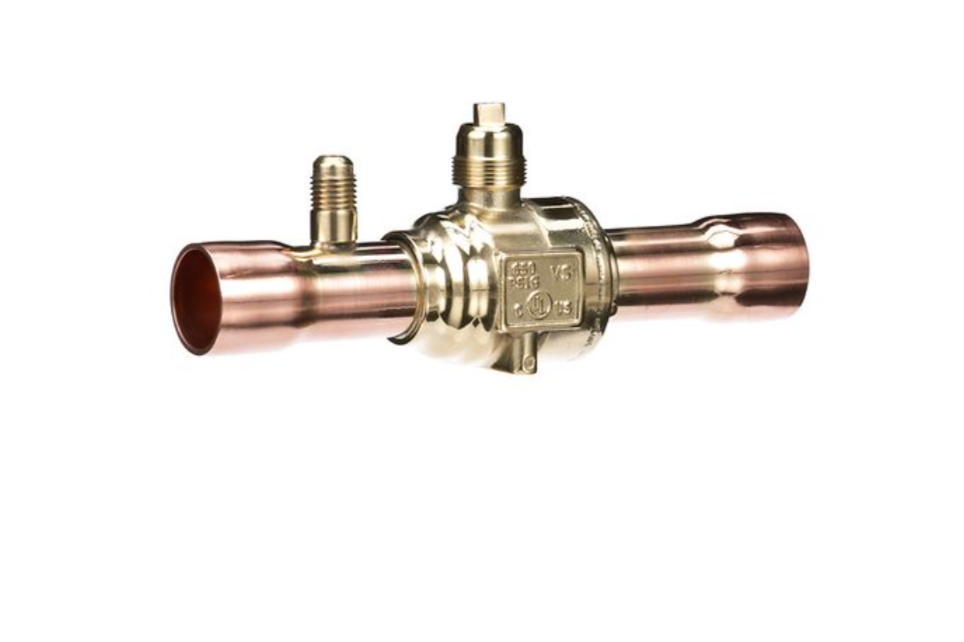

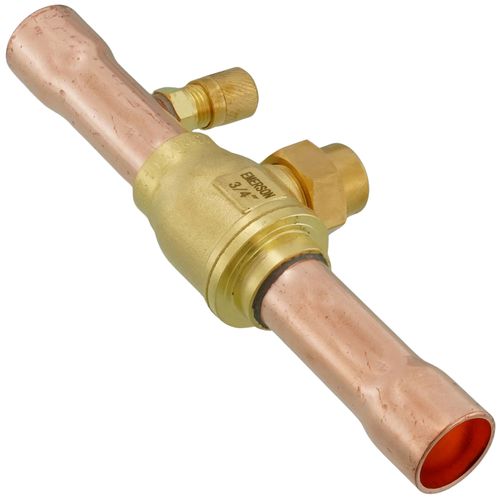

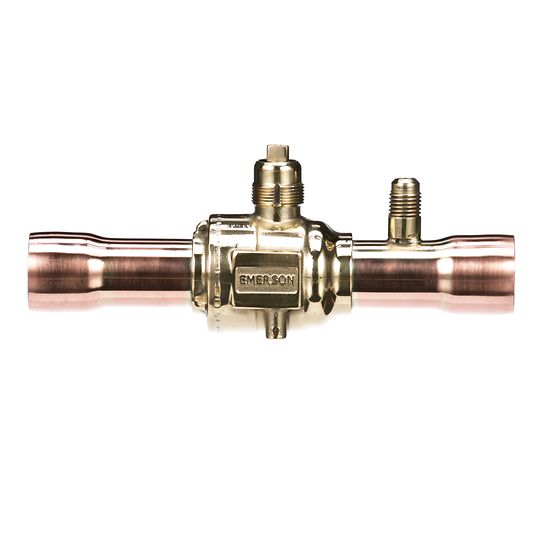

White-Rodgers 081017 3/4 inches odf bvss series refrigeration ball valve w/ access valve, brass locking seal cap

Product Description

The WHITE-RODGERS 081017 BVSS Series Refrigeration Ball Valve is a welded ball valve designed with a 3/4" ODF connection and an integrated access valve. Constructed from forged brass with 100% copper connections, it is suitable for isolating suction, discharge, and liquid lines during maintenance. It features a full port design and a brass locking seal cap, operating effectively within a fluid temperature range of -40°F to 250°F.

• 3/4" ODF Connection for secure installation.
• Forged brass body with hermetic weld design ensures durability.
• Integrated access valve and brass locking seal cap for convenience.

Product Highlights

Welded refrigeration ball valve with 3/4" ODF connections, forged brass body, and integrated access valve.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081017
• Country of Origin: China

Technical Specifications

• Body: Forged Brass
• Construction: Extended Tubes, 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Certifications: UL/CUL File Number SA5312 (BVE/BVS); UL/CUL File Number SA32723(BVSS)
• Product Type: Ball Valve
• Size: 3/4"
• Connection Type: ODF
• Model: BVSS 034
