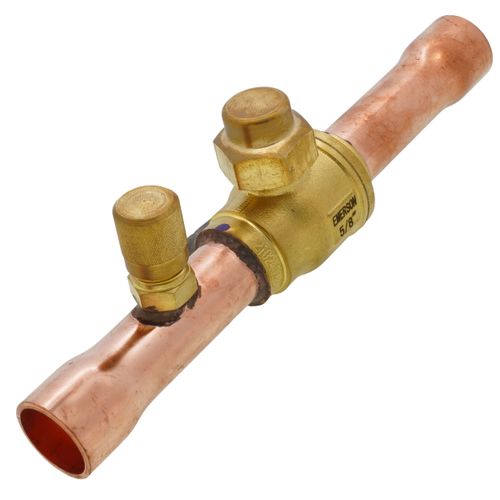

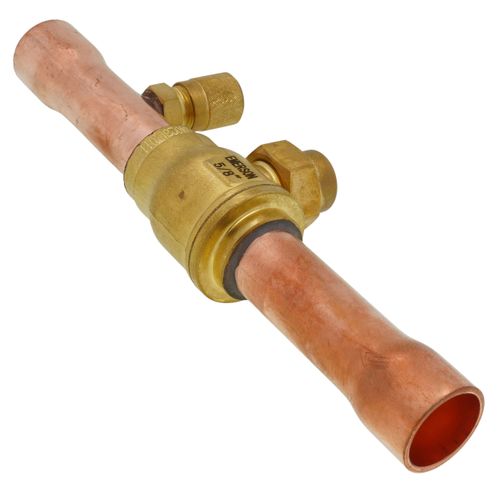

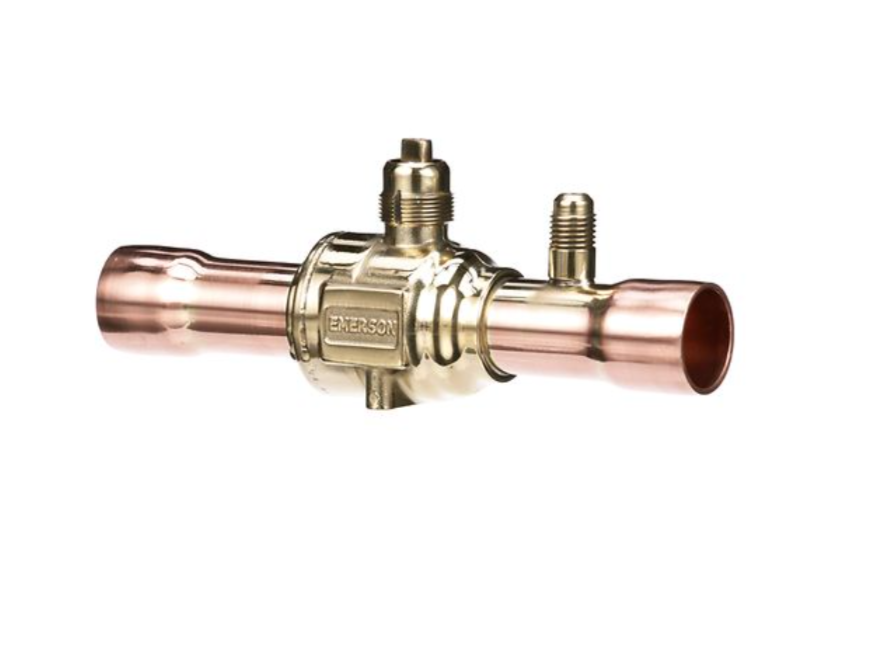

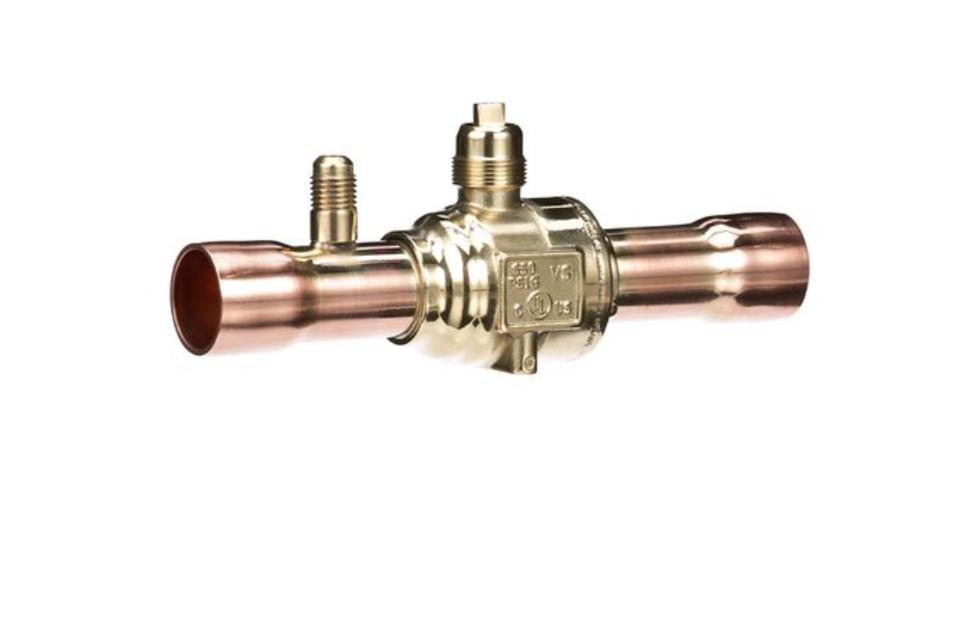

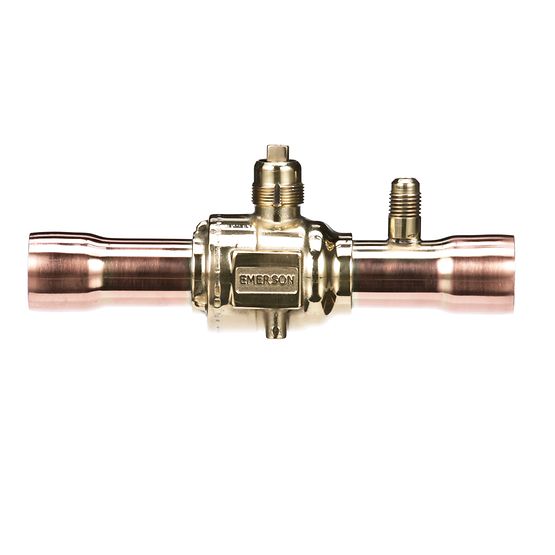

White-Rodgers 081016 5/8 inches ODF BVSS Series Refrigeration Ball Valve With Access Valve, Brass Locking Seal Cap

Product Description

The WHITE-RODGERS 081016 is a 5/8" ODF BVSS Series Refrigeration Ball Valve designed for isolating suction, discharge, and liquid lines during maintenance. This welded refrigeration ball valve features 5/8" ODF connections and a brass locking seal cap, ensuring secure operation in refrigeration systems. Its robust forged brass body and copper connections provide durability for demanding applications.

• Forged brass body with hermetic weld design
• Copper ODF connections
• Brass locking seal caps

Product Highlights

This BVSS Series refrigeration ball valve features a forged brass body, 5/8" ODF connections, and an integrated access valve with a brass locking seal cap for system isolation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081016

Technical Specifications

• Body: Forged Brass
• Construction: Extended Tubes, 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Certifications: UL/CUL File Number SA5312 (BVE/BVS); UL/CUL File Number SA32723(BVSS)
• Product Type: Ball Valve
• Size: 5/8"
• Connection Type: ODF
