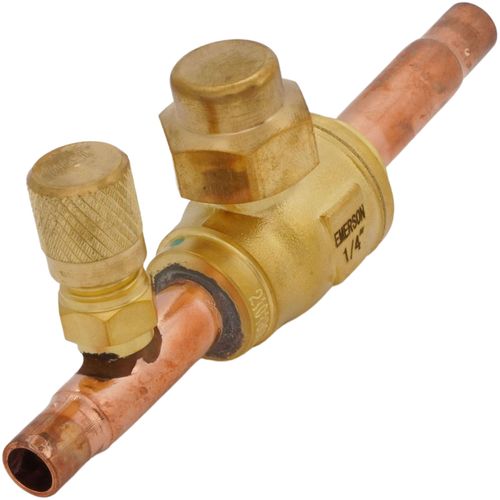

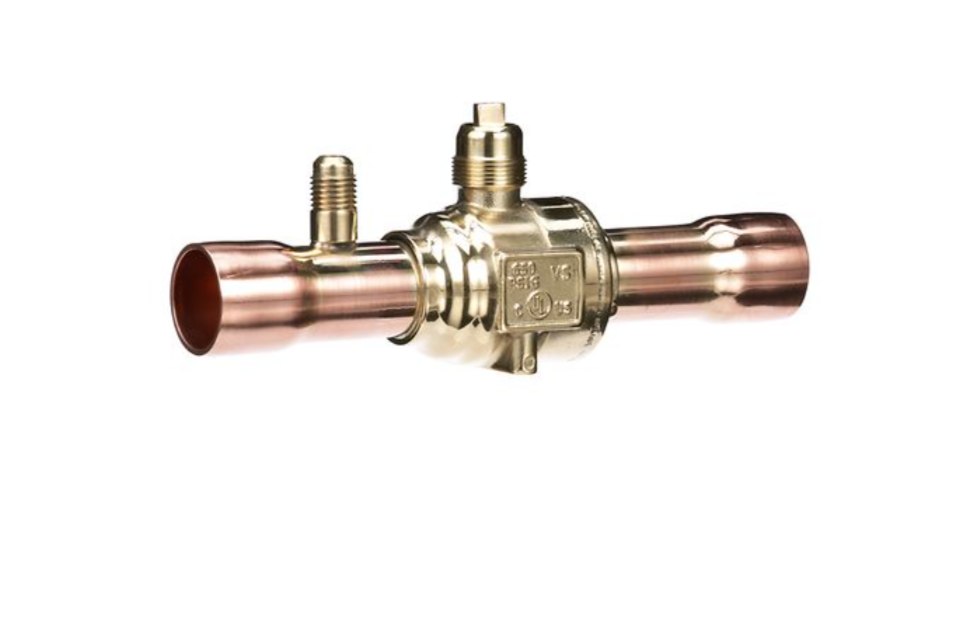

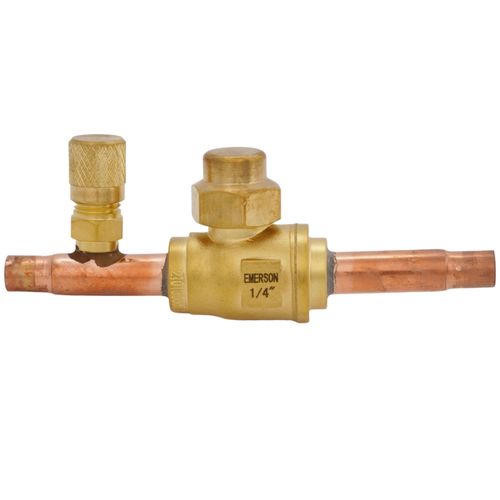

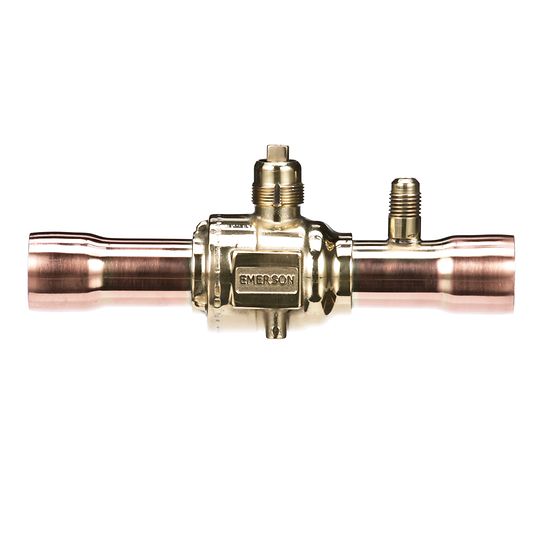

White-Rodgers 081013 BVSS series refrigeration ball valve w/ access valve, brass locking seal cap 1/4 inches ODF

Product Description

The WHITE-RODGERS 081013 BVSS Series Refrigeration Ball Valve is designed for isolating suction, discharge, and liquid lines during maintenance. This welded ball valve features 1/4" ODF connections and a brass locking seal cap, ensuring secure operation in refrigeration systems. Constructed from forged brass, it offers a maximum working pressure of 650 psig and a fluid temperature range of -40°F to 250°F.

• Forged brass body with hermetic weld design for durability
• Copper ODF connections ensure reliable system integration
• Compatible with all A1 class refrigerants and R32

Product Highlights

This BVSS Series ball valve provides reliable isolation and flow control for refrigeration systems, featuring a durable forged brass body and integrated access valve.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 081013
• Country of Origin: China

Technical Specifications

• Product Type: Ball Valve
• Size: 1/4" ODF
• Body Material: Forged Brass
• Extended Tubes Material: 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Certifications: UL/CUL File Number SA5312 (BVE/BVS); UL/CUL File Number SA32723(BVSS)
• Model: BVSS 014
