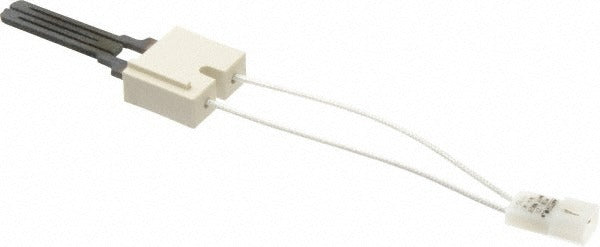

White-rodgers 07 67A361S1 Hot Surface Ignitor 120V

Product Description

The WHITE-RODGERS 07 67A361S1 is a silicon carbide hot surface ignitor designed for gas burner applications in residential and light commercial heating systems. Rated at 120 volts AC and 5 amps, this ignitor uses a silicon carbide element to generate the heat needed to ignite the gas burner without a standing pilot flame. The two-terminal receptacle uses 0.093-inch male pins for the electrical connection. Lead length is 9 inches, providing adequate reach for standard furnace ignitor mounting locations. Ceramic wire nuts are included for a complete installation. Licensed HVAC technicians install this part as a direct replacement during routine furnace service or no-heat calls.

This ignitor is suited for gas-fired forced-air furnaces and heating appliances that use hot surface ignition control systems operating at 120 volts AC. It is commonly installed in residential gas furnaces during ignitor failure diagnosis. The 9-inch lead length and 0.093-inch male pin receptacle connection make it compatible with ignitor harness configurations found in many hot surface ignition setups. Always verify the voltage rating and connector style against the existing ignitor before installation.

Key Features

• Silicon carbide ignition element for reliable gas burner ignition
• 120 volts AC, 5-amp rating for hot surface ignition control systems
• Two-terminal receptacle with 0.093-inch male pins
• 9-inch lead length for standard furnace mounting reach
• Ceramic wire nuts included for a complete field installation

Compatibility

Designed as an OEM-style replacement hot surface ignitor for gas-fired heating appliances using 120-volt hot surface ignition control systems.

Installation Notes

Installation should be performed by a licensed HVAC technician following local codes and the appliance manufacturer's service documentation. Disconnect all electrical power and shut off the gas supply to the appliance before removing or installing the ignitor. Silicon carbide elements are brittle — handle the ignitor body only and avoid touching the element with bare hands, as skin oils can reduce service life. Confirm the terminal connection style and lead length match the existing ignitor harness before completing the installation.
