White Mountain VFSV24N Hearth VFSV-24N 24 inches Variable Flame Valve

Product Description

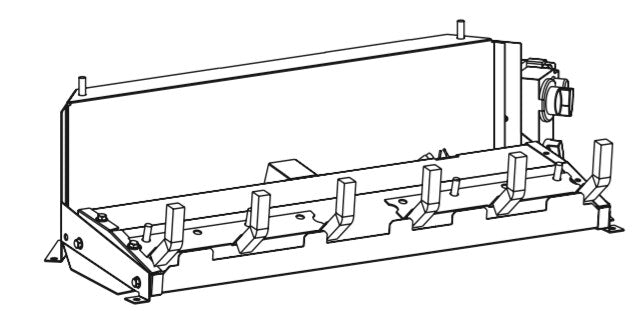

The WHITE MOUNTAIN VFSV24N vented/vent-free burner system functions in both traditional flue vented fireplaces and those without a flue. It features an Oxygen Depletion System for safety and includes a standing pilot for instant starts. The Slope Glaze Burner has concealed controls and variable flame height control, operable manually or with the included remote.

• Suitable for vented and vent-free fireplace applications.
• Equipped with an Oxygen Depletion System for enhanced safety.
• Features variable flame height control and remote operation.

Product Highlights

This burner system offers versatile installation options and user-friendly controls for a convenient and safe fireplace experience.

Product Information

Standard Information

• Brand: WHITE MOUNTAIN
• Manufacturer Part Number: VFSV24N

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented/Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 36000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): 4.0" w.c.
• Inlet Gas Pressure (Min.): 7.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 23"
• Req. Min. Depth (in.): 14"
• Req. Min. Height (in.): 18"
