White Mountain VFSUR30P Vista Millivolt Valve Vented/Vent Free Slope Glaze Multi-Side Burner - Liquid Propane

Product Description

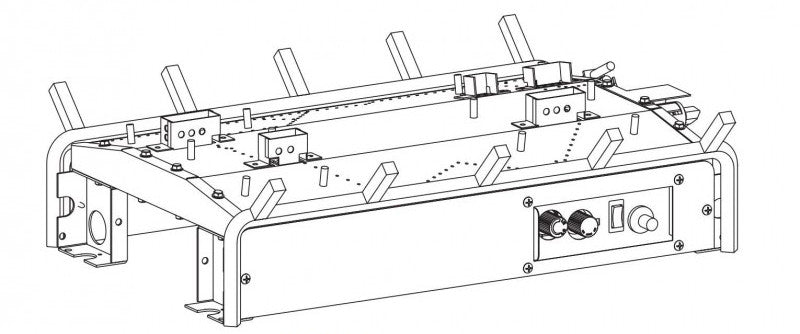

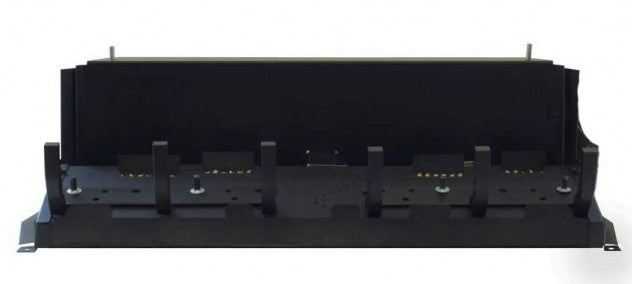

The White Mountain Hearth VFSUR30P is a multi-sided burner suitable for use in peninsula or see-thru fireplaces and fireboxes. This burner operates on liquid propane and is designed for both vented and vent-free applications. It features concealed controls and includes a standing pilot for quick ignition. ON/OFF operation is available, and it can be controlled manually, with a remote, or via a wall switch, which need to be purchased separately.

• Approved for use in any certified vent-free firebox.
• Can be used in existing wood-burning fireplaces with the damper closed for vent-free functionality.
• Requires a licensed gas technician for installation.

Product Highlights

This burner is ideal for use in mobile homes where local codes permit. It includes a special flue-damper clamp for vented setups and a main burner orifice for adjustable input.

Product Information

Standard Information

• Type of Fuel: Liquid Propane
• Installation Location: Indoor

Technical Specifications

• BTUs (Max.): 40000
• Ignition Type: Millivolt (Remote Ready)
• Gas Connection Size: 1/2 inch
• Manifold Pressure: 10.0 inch w.c.
• Inlet Gas Pressure (Min.): 11.0 inch w.c.
• Inlet Gas Pressure (Max.): 13.0 inch w.c.
• Allowable Log Set Sizes: 30 inches
• Certified for Mobile Home Usage: Yes
