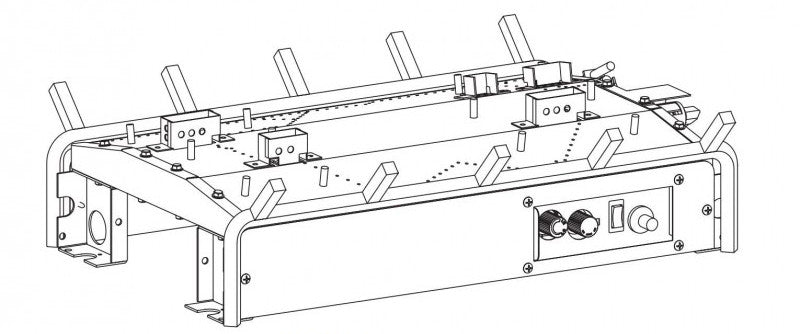

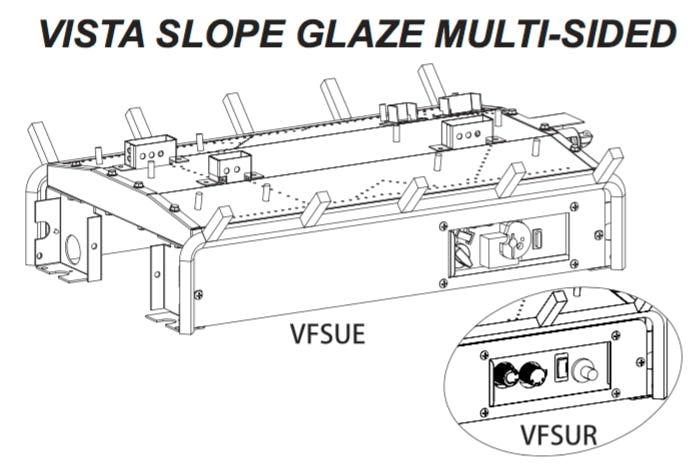

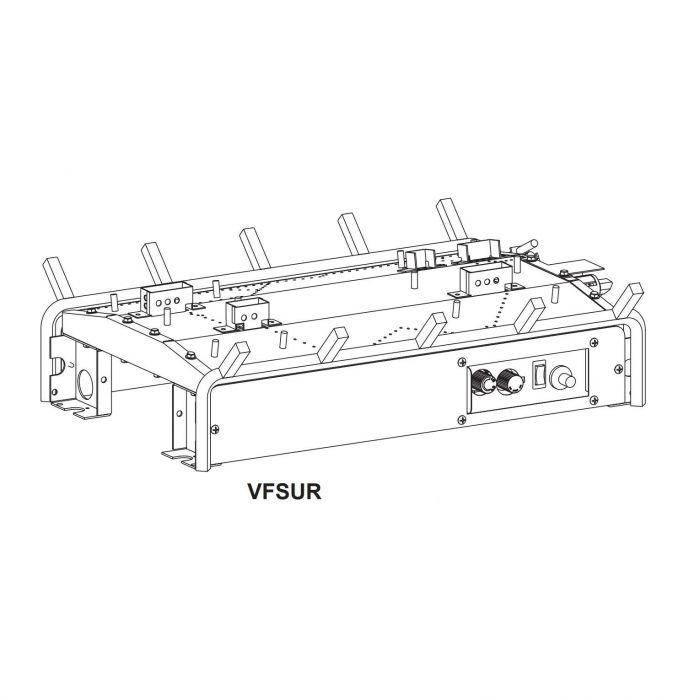

White Mountain VFSUR18N Vista Millivolt Valve Vented/Vent Free Slope Glaze Multi-Side Burner - Natural Gas 18 inches

Product Description

The White Mountain VFSUR18N Vista Slope Glaze Burner is designed for use in multi-sided, peninsula, or see-thru fireplaces. It features concealed controls and a standing pilot for instant starts. The burner includes a millivolt valve with ON/OFF operation and can be controlled manually, by remote, or wall switch. Approved for vent-free fireboxes and certified for vented log set installation.

• Designed for multi-sided, peninsula or see-thru fireplaces
• Concealed controls and standing pilot for instant starts
• Millivolt valve with ON/OFF operation

Product Highlights

The Vista Slope Glaze Burner offers versatile installation options and easy control, enhancing the ambiance of any multi-sided fireplace.

Product Information

Standard Information

• Brand: WHITE MOUNTAIN
• Manufacturer Part Number: VFSUR18N

Technical Specifications

• Fireplace Style Installation: Multi-Sided/See-Thru
• Location of Use: Indoor
• Type of Venting: Vented/Vent Free
• Media Style: Traditional Log Set (See-Through)
• Type of Grate: Standard
• Fuel Type: Natural Gas
• Allowable Log Set Sizes (in.): 18"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 36000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Optional
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 3.5" w.c.
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 22"
• Req. Min. Rear Width (in.): 22"
• Req. Min. Depth (in.): 17"
• Req. Min. Height (in.): 17"
• For Use with: Empire “LS” log sets of the same size
• Valve Style: Remote Ready - Remote Excluded
• Embers: Glowing - Adjustable
