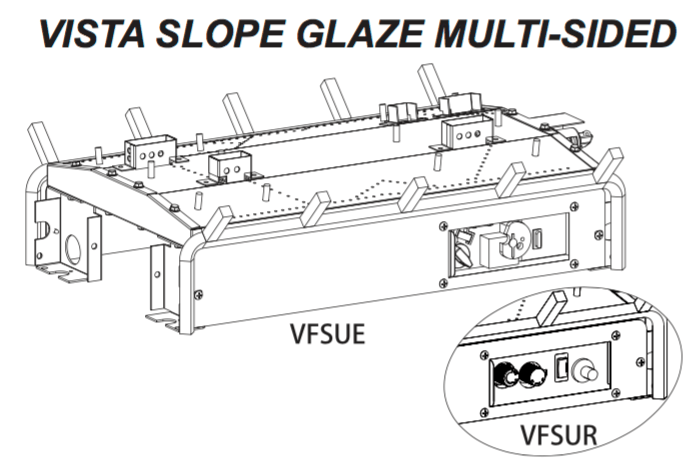

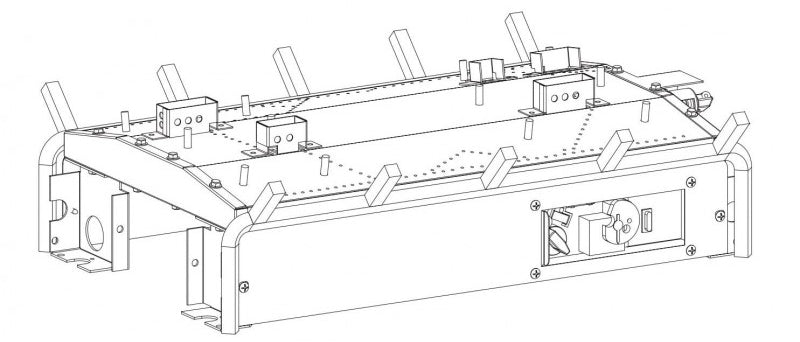

White Mountain VFSUE24N Vista Slope Glaze Burner 24 inches Natural Gas

Product Description

The White Mountain VFSUE24N Vista Slope Glaze Burner is designed for multi-sided, peninsula, or see-thru fireplaces. Approved for vent-free fireboxes, it can also be installed in existing wood-burning fireplaces with the damper closed. Certified for vented log set installation with a flue-damper clamp included. Features concealed controls, intermittent pilot, and thermostat remote control.

• Designed for use in a multi-sided, peninsula or see-thru fireplace or firebox.
• Features concealed controls
• Includes an intermittent pilot and thermostat remote control (remote included).

Product Highlights

The Vista Slope Glaze Burner offers versatile installation options and convenient remote control operation for natural gas fireplaces.

Product Information

Standard Information

• Brand: WHITE MOUNTAIN
• Manufacturer Part Number: VFSUE24N

Technical Specifications

• Fireplace Style Installation: Multi-Sided/See-Thru
• Location of Use: Indoor
• Type of Venting: Vented/Vent Free
• Media Style: Traditional Log Set (See-Through)
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 38000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 3.5" w.c.
• Inlet Gas Pressure (Min.): 7.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 28"
• Req. Min. Rear Width (in.): 28"
• Req. Min. Depth (in.): 17"
• Req. Min. Height (in.): 17"
