White Mountain VFSR16N Hearth 16 inches Millivolt Valve Vented/Vent Free Slope Glaze Burner - Natural Gas

Product Description

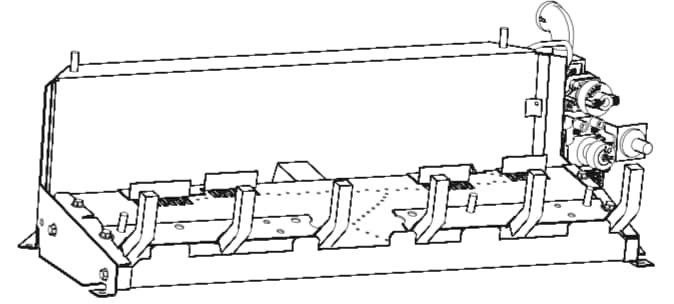

The WHITE MOUNTAIN VFSR16N vented/vent-free burner system works in traditional flue vented fireplaces or ones without a flue. It includes an Oxygen Depletion System for safety. The Slope Glaze Burner features concealed controls and a standing pilot for instant starts. It includes a millivolt valve with ON/OFF operation, controllable manually or by remote/wall switch (sold separately).

• Vented/Vent Free
• Approved for use in any certified vent-free firebox
• May be installed in an existing wood-burning fireplace, with the damper closed, to operate as a vent-free heating system

Product Highlights

This burner system is certified for mobile homes and includes a flue-damper clamp for vented log set installation. A licensed gas technician is required for installation.

Product Information

Standard Information

• Brand: WHITE MOUNTAIN
• Manufacturer Part Number: VFSR16N

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented/Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 16"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 25000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Optional
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): 3.5" w.c.
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 24"
• Req. Min. Rear Width (in.): 18"
• Req. Min. Depth (in.): 11.5"
• Req. Min. Height (in.): 18"
