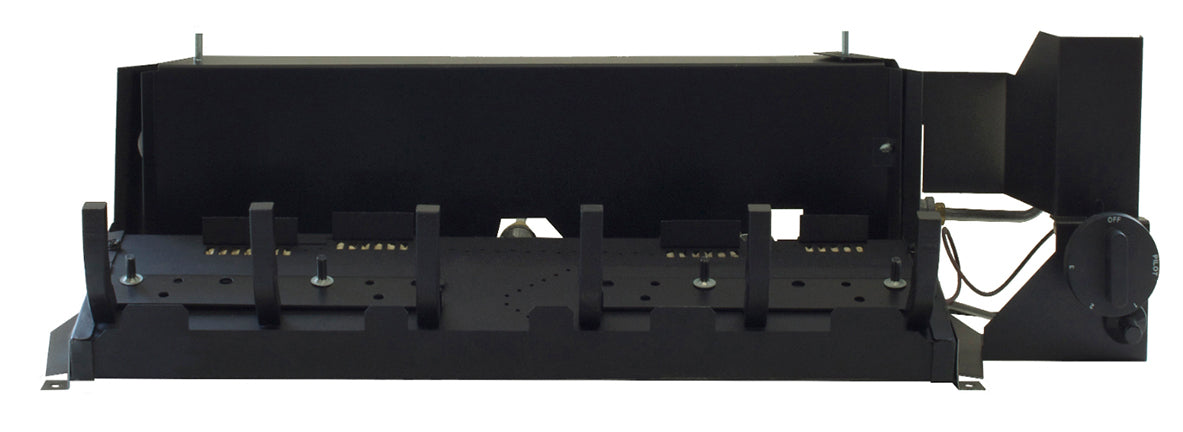

White Mountain VFSM24N Hearth VFSM-24N 24 inches Manual Valve Burner - Natural Gas

Product Description

The White Mountain Hearth VFSM-24N is a 24" vented/vent-free burner system suitable for traditional flue vented fireplaces or those without a flue. It features an Oxygen Depletion System for safety and a standing pilot for instant starts. This Slope Glaze burner includes concealed controls and a manual control knob. It is approved for vent-free fireboxes and can be installed in existing wood-burning fireplaces.

• Vented/vent-free burner system works in both traditional flue vented fireplaces or those without a flue.
• Includes an Oxygen Depletion System to quickly shut off the gas if room oxygen levels drop to unsafe levels.
• Slope Glaze Vented/Vent-Free burner can be used in a vented application by clamping open the fireplace damper.

Product Highlights

This White Mountain Hearth burner features concealed controls and includes a standing pilot for instant starts. It is approved for use in any certified vent-free firebox.

Product Information

Standard Information

• Brand: WHITE MOUNTAIN
• Manufacturer Part Number: VFSM24N

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented/Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 36000
• Ignition Type: Manual (No Remote)
• Remote: Not Available
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): 6.0" w.c.
• Inlet Gas Pressure (Min.): 7.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 34"
• Req. Min. Rear Width (in.): 27"
• Req. Min. Depth (in.): 14"
• Req. Min. Height (in.): 18"
