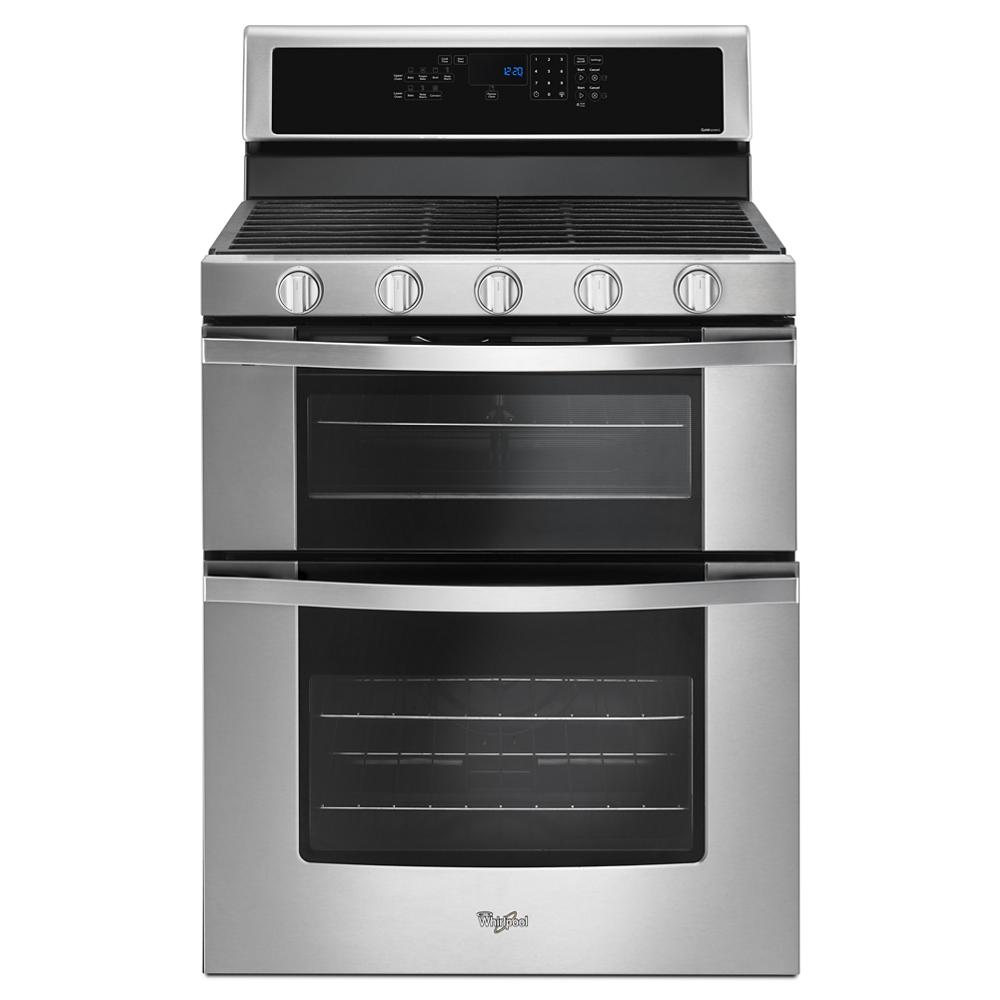

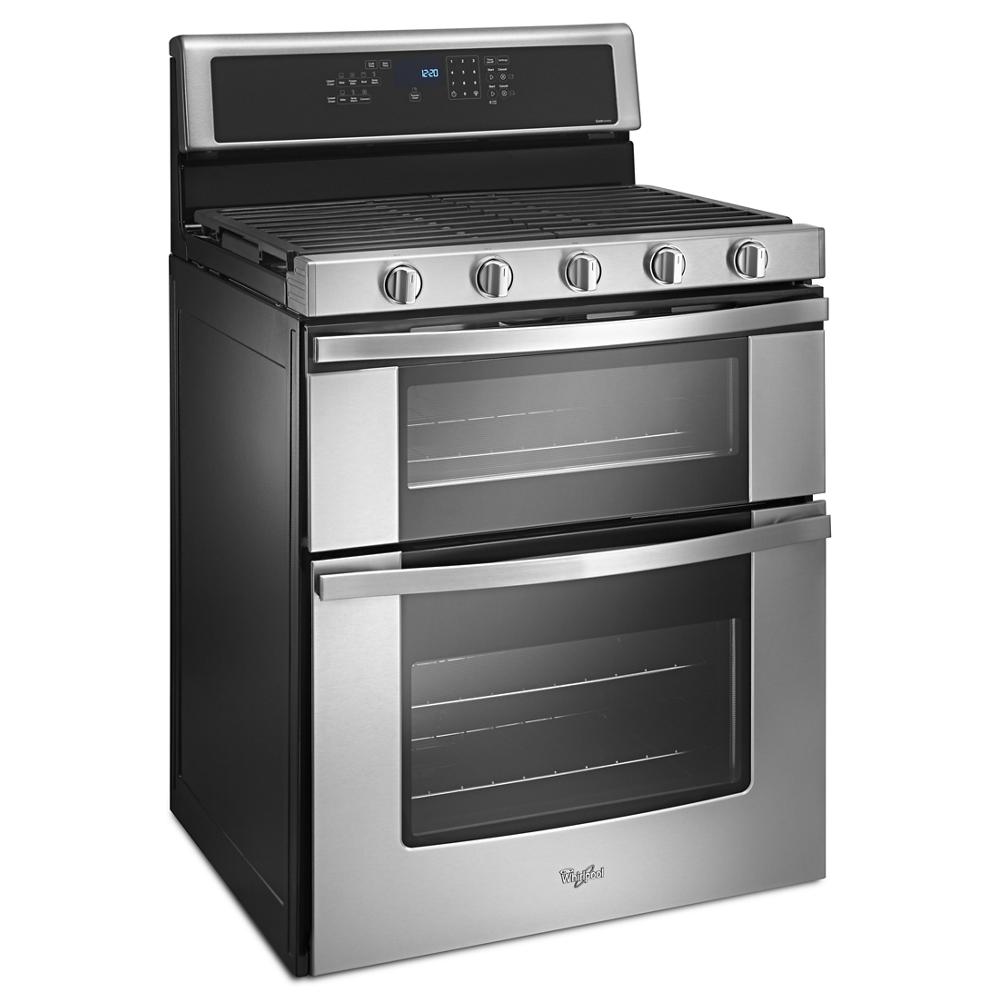

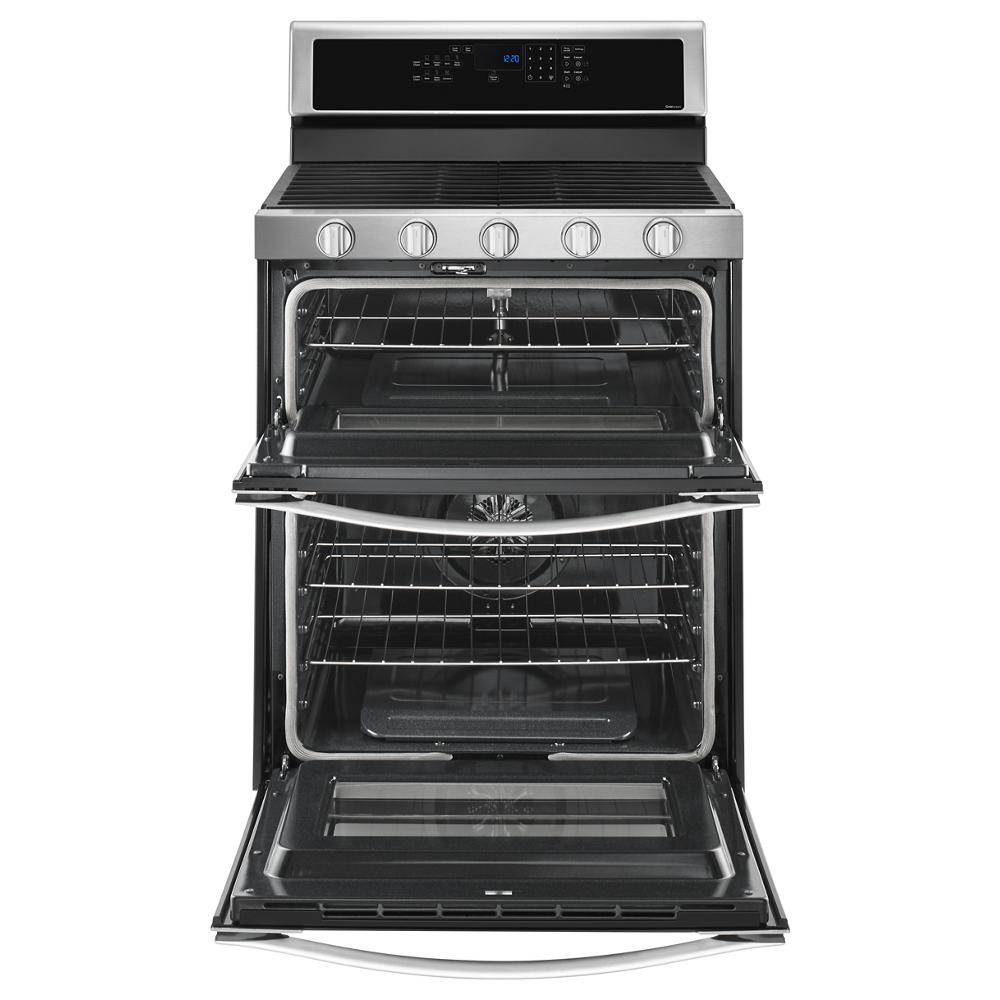

Whirlpool WGG745S0FS 6.0 Cu. Ft. Gas Double Oven Range with EZ-2-Lift™ Hinged Grates

Product Description

The WHIRLPOOL WGG745S0FS is a gas double oven kitchen range with true convection cooking. It features convection conversion to adjust cooking times and temperatures. Frozen Bake™ technology eliminates preheating for frozen foods. The center oval burner evenly heats large griddles, and EZ-2-Lift™ hinged cast-iron grates allow for easy cooktop cleaning.

• Features Frozen Bake™ Technology
• Equipped with EZ-2-Lift™ Hinged Cast-Iron Grates
• Offers True Convection with a Third Heating Element

Product Highlights

This gas range features true convection, frozen bake technology, a center oval burner, and EZ-2-Lift hinged cast-iron grates for ease of use.

Product Information

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: WGG745S0FS

Technical Specifications

• Certifications: ADA Compliant: No, UL: Yes
• Exterior Details: Door Type: Metal & Glass, Handle Color: Stainless Steel, Handle Material: Metal, Knob Color: Color Coordinated, Knob Type: Weighted, Oven Control Location: Backguard, Oven Control Type: Electronic Touch, Oven Window Size: Extra Large
• Cooktop Details: Cooktop Control Location: Front, Cooktop Control Type: Knobs, Cooktop Surface Color: Black on Stainless, Cooktop Surface Material: Porcelain Coated Steel, Griddle Included: N/A, Heating Element On Indicator Light: No, Hot Surface Indicator Light: No, Ignition Type: Electronic
• Oven Cavity Details: Automatic Convection Conversion Temperature Adjust: Yes, Bake Element Power: 16,000 BTU, Broiler Element Power: 10,000 BTU-Upper, Broiler Location: Top of Oven, Convection Element Type: True, Door Removable: Yes, Hidden Bake Element: Yes, Interior Color: Grey, Lower Oven Capacity: 3.9 cu. ft., Number of Oven Lights: 1, Number of Oven Racks: 2, Number of Rack Guides: 5, Oven Cleaning Type: Self-Cleaning, Oven Cooking System: Thermal Upper-Convection Lower, Oven Light Type: Incandescent, Oven Rack Type: Standard, Upper Oven Capacity: 2.1 cu. ft.
• Dimensions: Common Size: 30 in, Cutout Depth: 24 in, Cutout Height: 36 in, Cutout Width: 30.125 in, Depth: 26.125 in, Depth Closed Excluding Handles: 27.25 in, Depth With Door Open 90 Degree: 46 in, Gross Weight: 263 lbs, Height: 47.125 in, Lower Oven Interior Width: 25 in, Net Weight: 0 lbs, Upper Oven Interior Depth: 18.625 in, Upper Oven Interior Width: 25 in, Width: 29.9375 in
• Details: Fuel Type: Gas, LP Convertible: Yes, Oven Automatic Shut-Off: No, Oven Configuration: Double Oven, Oven Selections: Audible Signal, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Frozen Bake, Keep Warm Setting, Language Conversion, Melt, Rapid Preheat, Sabbath Mode, Timer, Warm Hold, Power On Indicator Light: No, Power Outage Compatible: No, Range Configuration: Double Oven, Range Type: Freestanding Double Oven
• Element/Burner Details: Center Rear Element-Burner Power: 7,350 BTU, Center Rear Element-Burner Type: Oval Burner, Cooktop Element Style: Sealed Burner, Left Front Element-Burner Power: 16,000 BTU, Left Rear Element-Burner Power: 5,000 BTU, Number of Cooking Element-Burners: 5, Number of Grates: 2, Right Front Element-Burner Power: 10,000 BTU, Right Rear Element-Burner Power: 5,000 BTU, Right Rear Element-Burner Type: Simmer
• Controls: Display Color: Blue, Red, Electronic Display Type: Digital
• Grate Details: Grate Details: Dishwasher Safe, Hinged, Matte Finish, Porcelain Coated Cast Grates, Number of Grates: 2
• Electrical: Amps: 15, Hz: 60, Power Cord Included: No, Volts: 120
• Refinements: Features: EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle, Range Features: Bladed Knob, EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Self-Cleaning, True Convection, Whirlpool Handle
• Appliance Color/Finish: Stainless steel
• Manufacturer Color/Finish: Stainless Steel
• Installation Type: Freestanding
• Type: Freestanding
• Number of Racks: 2
• Power Source: Gas
• Burner Grate Material: Porcelain-coated steel
• Bulb Type: Incandescent
• Appliance Type: Double oven gas range
• Adjustable Height: Yes
• Maximum Assembled Height (Inches): 48.125
• Capacity (Primary Oven) (Cu. Feet): 3.9
• Minimum Assembled Height (Inches): 47.125
• Capacity (Secondary Oven) (Cu. Feet): 2.1
• Popular Widths: 30-in
• Usable Primary Interior (H x W x D): 14.68 x 25 x 18.125
• Usable Secondary Interior (H x W x D): 7.93 x 25 x 18.63
• Depth (Inches): 28.5
• Width (Inches): 29.938
• Adjustable Cleaning Levels: No
• Half/Split Rack: No
• Air Fry: No
• Hub Required: No
• Auto Re-Ignition: No
• Integrated Griddle: No
• Automatic Shut-Off: Yes
• Light(s) Control: Oven light touch pad
• Burner #1 Max BTU: 16000
• Lowe's Exclusive: No
• Burner #2 Max BTU: 5000
• LP Conversion Kit Included: Yes
• Burner #3 Max BTU: 10000
• Modular Design: No
• Burner #5 Max BTU: 7350
• Number of Cooking Zones: 5 burners
• Burner #6 Max BTU: 0
• Oval Burner: Yes
• Burner #7 Max BTU: 0
• Power Burner (15,000 BTU+): Yes
• Burner #8 Max BTU: 0
• Continuous Grates: Yes
• Professional: No
• Proofing: No
• Control Lockout: Yes
• Convection Oven: Yes
• Rapid Preheat: Yes
• Customizable: No
• Removable Washable Trays: No
• Dehydrator Oven: No
• Sealed Burners: Yes
• Delay Bake: No
• Digital Display: Yes
• Self-Cleaning Oven Racks: No
• Simmer Burner: Yes
• Door Lock: Yes
• Steam Cook: Yes
• Downdraft Exhaust: No
• Temperature-Sensor Baking: Yes
• Time Bake: Yes
• Drip Pans: No
• Dual/Tri-Ring Burner(s): No
• Favorite Setting: No
• Voice Controlled: No
• Fingerprint-Resistant: No
• Wok Grate Included: No
• Food Temperature Probe: No
• Drawer Type: None
• Glide/Rollout Racks: No
• App Compatibility: No
• Works with Apple HomeKit: No
• Bluetooth Compatibility: No
• Works with iOS: No
• Smart Compatible: No
• Works with SmartThings: No
• Wi-Fi Compatibility: No
• Works with Sonos: No
• Works with Amazon Alexa: No
• Works with the Google Assistant: No
• Works with Android: No
• Style of range: freestanding gas
• Burners Btu/hr: 17000, 10000, 7350 (oval), 5000, 5000
• Grates: Cast iron, continuous
• Oven rack positions: 5 lower, 2 upper
• Claimed oven capacity (cu. ft.): 6.0
• High-power burners: 1
• Medium-power burners: 2
• Low-power burners: 2
• Number of cooktop burners: 5
• Convection mode: Yes
• Double oven: Yes
• Warming drawer: No
• Cooking drawer: No
• Slide-in: No
• Stainless steel available: Yes
• WiFi: No
• Hot Surface Indicator Lights: No
• Air Sous Vide: No
• Keep Warm Setting: Yes
• Dishwasher-Safe Grates: Yes
• True Convection: Yes
