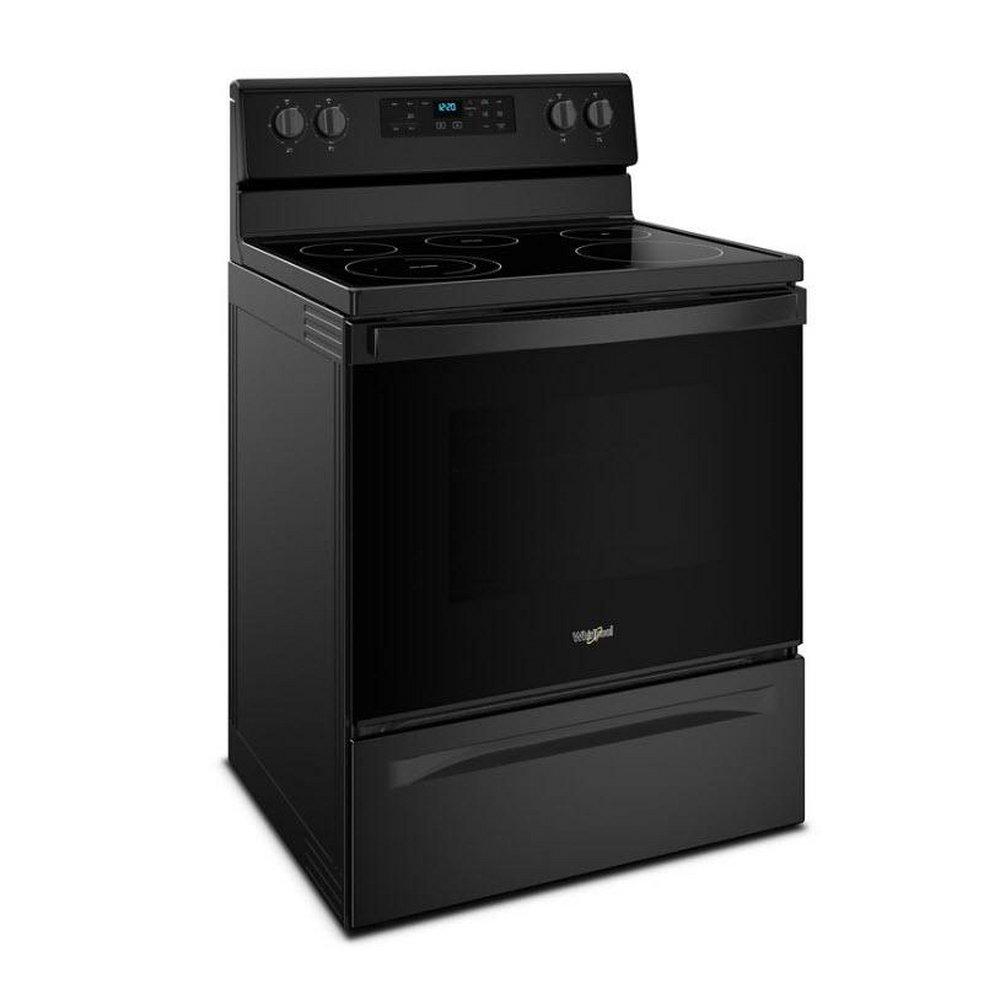

Whirlpool WFE505W0HB electric 5-burner smoothtop freestanding range 29-7/8 in.

Product Description

The Whirlpool WFE505W0HB is a 29-7/8 inch electric 5-burner smoothtop freestanding range with a 5.3 cu. ft. oven capacity. This appliance features Frozen Bake technology, allowing for faster cooking of frozen foods by skipping preheating. It includes FlexHeat dual radiant elements, providing two elements in one for cooking flexibility. The ceramic glass cooktop is designed for quick cleanup, and the range offers a steam cleaning oven function.

• Frozen Bake Technology allows skipping preheating for faster cooking of frozen foods.
• FlexHeat Dual Radiant Element provides two elements in one for versatile cooking.
• Easy-wipe ceramic glass cooktop simplifies cleanup after use.

Product Highlights

Features Frozen Bake Technology, FlexHeat Dual Radiant Elements, and an easy-wipe ceramic glass cooktop for efficient and convenient cooking.

Product Information

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: WFE505W0HB

Technical Specifications

• Brand: Whirlpool
• MPN: WFE505W0HB
• Part Number: WWFE505W0HB
• Item Number: 7314955
• Manufacturer Number: WFE505W0HB
• Type: Electric 5-Burner Smoothtop Freestanding Range
• Capacity: 5.3 cu. ft.
• Number of Cooktop Elements: 5
• Convection Element Type: None
• Single/Double Oven: Single

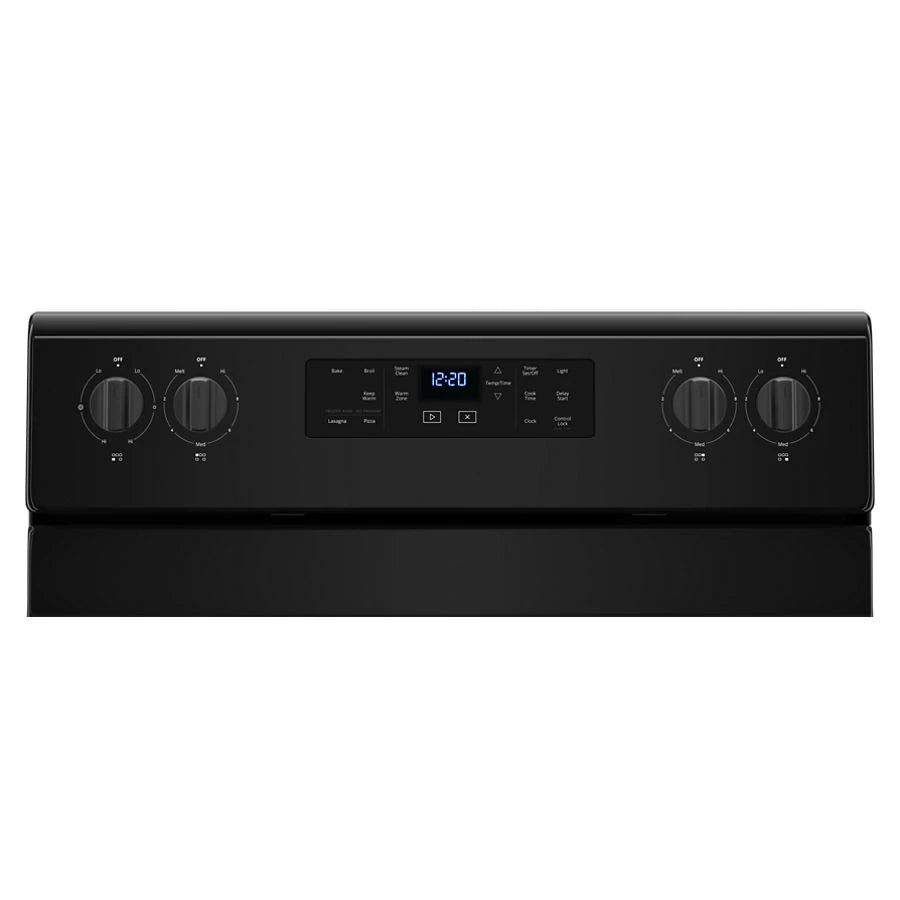

• Cooktop Control Type: Digital and Knobs
• Oven Control Type: Electronic
• Cooking Surface Type: Smooth surface
• Power Source: Electric
• Number of Oven Rack Positions: 5
• Oven Light Bulb Type: Incandescent
• Oven Cleaning Method: Steam cleaning
• Fuel Type: Electric
• Oven Interior Light Type: Standard (incandescent)
• Installation Type: Freestanding
• Appliance Type: Single oven electric range
• Number of Oven Racks: 2
• Adjustable Height: Yes
• Element #4 Size: 6-in
• Element #5 Size: 6-in
• Maximum Assembled Height: 47.875 inches
• Minimum Assembled Height: 46.875 inches
• Depth: 27.75 inches
• Range Size: 30 inches
• Element #1 Size: 6-in/9-in
• Usable Oven Interior (H x W x D): 18.125 x 24.5 x 18.5 inches
• Element #2 Size: 6-in
• Width: 29.875 inches
• Element #3 Size: 9-in
• Adjustable Cleaning Levels: No
• Food Temperature Probe: No
• Air Fry: No
• Glide/Rollout Racks: No
• Automatic Convection Conversion: No
• Half/Split Rack: No
• Oven Automatic Shut-Off: Yes
• Hidden Bake Element: No
• Bridge Element: No
• Hot Surface Indicator Lights: Yes
• Control Location: Behind elements
• Hub Required: No
• Control Lock: No
• Induction Cooking: No
• Convection Oven: No
• Keep Warm Setting: Yes
• Customizable: No
• Light(s) Control: Oven light touch pad
• Dehydrator Oven: No
• Delay Bake: Yes
• Power Cord Included: No (sold separately)
• Power Element: No
• Professional: No
• Proof Mode: No
• Dual/Triple Element: Yes
• Element #1 Wattage: 3000
• Sabbath Mode: Yes
• Element #2 Wattage: 1200
• Self-Cleaning Oven Racks: No
• Element #3 Wattage: 2500
• Simmer Element: No
• Element #4 Wattage: 1200
• Temperature-Sensor Baking: Yes
• Element #5 Wattage: 100
• Time Bake: Yes
• Element #6 Wattage: 0
• True Convection: No
• Favorite Setting: No
• Voice Controlled: No
• Fingerprint-Resistant: No
• App Compatibility: No
• Works with Android: No
• Bluetooth Compatibility: No
• Works with Apple HomeKit: No
• Works with iOS: No
• Smart Compatible: No
• Works with SmartThings: No
• Wi-Fi Compatibility: No
• Works with Sonos: No
• Works with Amazon Alexa: No
• Works with the Google Assistant: No
• Certifications: UL safety listing
• ENERGY STAR Certified: No
• ADA Compliant: No
• Volts: 250 Volts
• Amps: 40A
• Frozen Bake Technology: Yes
• Closed Door Broiling: Yes
• Warm Zone Element: Yes
• SteamClean: Yes
• Easy-Wipe Cooktop: Yes
• Large Oven Window: Yes
• Dishwasher-Safe Knobs: Yes
• FlexHeat Dual Radiant Element: Yes
• Upswept SpillGuard Cooktop: Yes

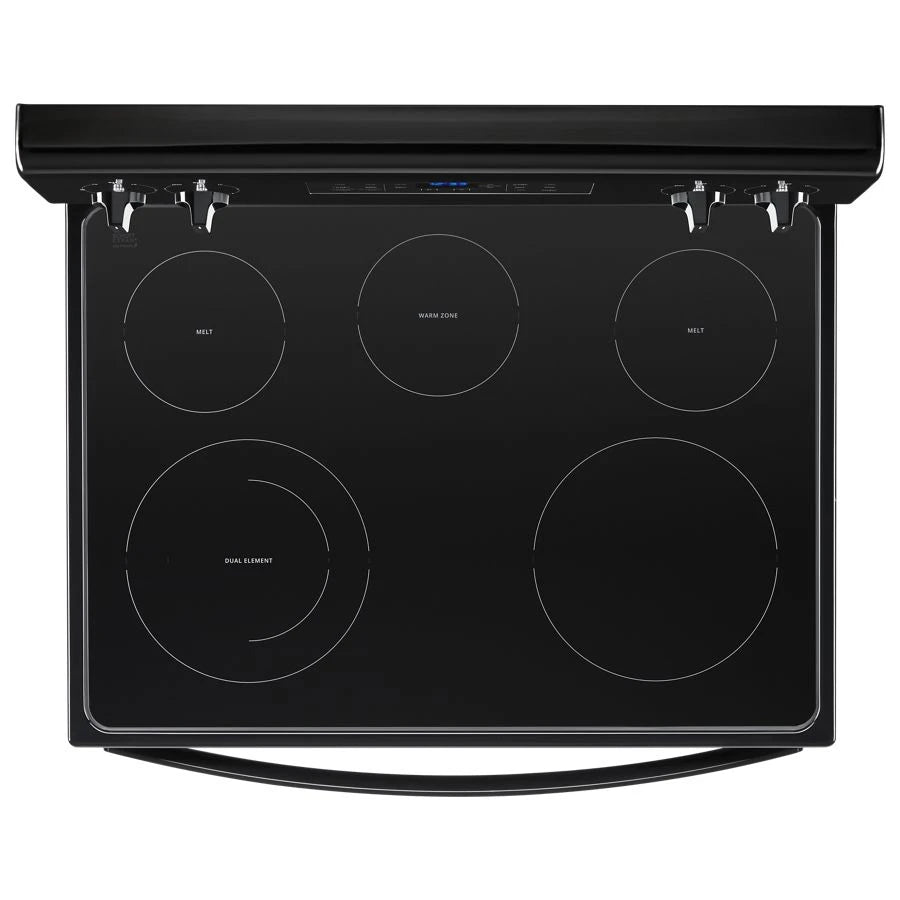

• Cooktop Surface Material: Ceramic Glass
• Center Rear Element-Burner Power: 100W
• Center Rear Element-Burner Size: 6"
• Center Rear Element-Burner Type: Warming
• Left Front Element-Burner Power: 3000W
• Left Front Element-Burner Size: 9"/6"
• Left Front Element-Burner Type: Dual
• Left Rear Element-Burner Power: 1200W
• Left Rear Element-Burner Size: 6"
• Left Rear Element-Burner Type: Radiant
• Right Front Element-Burner Power: 2500W
• Right Front Element-Burner Size: 9"
• Right Front Element-Burner Type: Radiant
• Right Rear Element-Burner Power: 1200W
• Right Rear Element-Burner Size: 6"
• Right Rear Element-Burner Type: Radiant
• Bake Element Power: 2400W
• Broiler Element Power: 3400W
• Broiler Location: Top of Oven
• Drawer Type: Storage Drawer
• Handle Material: Metal
• Handle Type: Reach Through Handle
• Selections: Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook and Hold; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm Setting; Language Conversion; Sabbath Mode; Start Time; Stop Time; Timer
• Star-K Compliant: Yes
• Viewing Window: Yes
• Clock: Yes
• Downdraft Ventilation: No
• Modules Required: No
• Oven Wattage: 3400
• Shabbos Compliance Certification: STAR-K
• Digital Temperature Display: Yes
• Broiler Pan Included: No
• Cooktop Control Knob Type: Plastic
• Cooktop Control Location: Backguard
• Griddle Included: N/A
• Heating Element On Indicator Light: Yes
• Door Type: Glass Window
• Oven Control Location: Backguard
• Oven Window Size: Large
• Automatic Convection Conversion Temperature Adjust: No
• Convection Functions: No
• Door Removable: Yes
• Natural Gas Convertible (Oven Cavity Details): No
• Oven Light Switch Location: Oven Control
• LP Convertible: No
• Natural Gas Convertible (Details): No
• Power Outage Compatible: No
• Electronic Display Type: LED
• Depth Closed Excluding Handles: 25-313/1000 in
• Depth Closed Including Handles: 27-3/4 in
• Depth With Door Open 90 Degree: 46-86/125 in
• Minimum Height: 46-7/8 in
• Oven Interior Depth: 18-1/2 in
• Oven Interior Height: 18-1/8 in
• Oven Interior Width: 24-1/2 in
