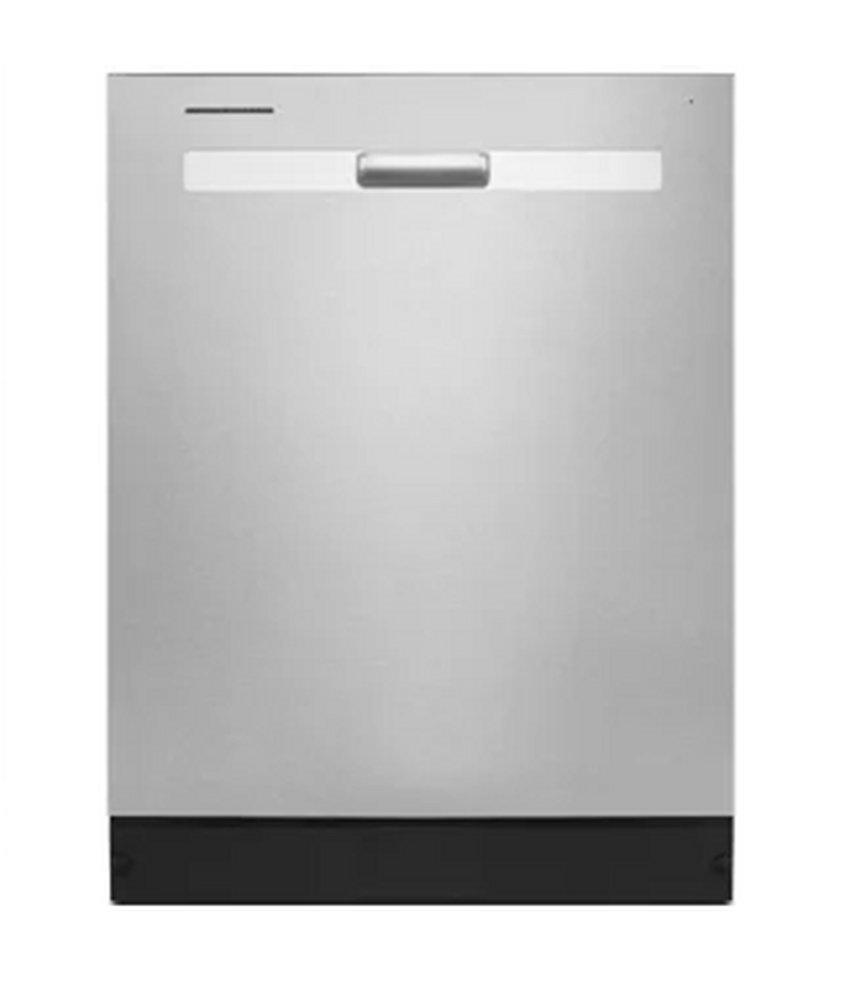

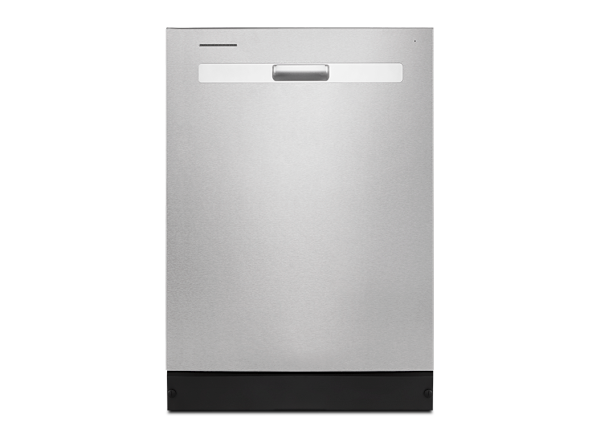

Whirlpool WDP540HAMZ 24 in. Built-In Dishwasher

Product Description

The Whirlpool WDP540HAMZ 24 in. Built-In Dishwasher features an AnyWare™ plus silverware basket and remembers the last cycle. It utilizes an AccuSense® soil sensor and is ENERGY STAR® qualified. The dishwasher offers heated air dry and a soak and clean cycle, along with a sani-rinse option. Includes 1-hour wash, normal, heavy and high temperature wash cycles.

• Features AnyWare™ plus silverware basket
• Remembers the last cycle
• Equipped with AccuSense® soil sensor

Product Highlights

This Whirlpool dishwasher offers multiple wash cycles and options, ensuring efficient and thorough cleaning while being energy efficient.

Product Information

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: WDP540HAMZ
• Country of Origin: US

Technical Specifications

• ADA Compliant: No
• CEE Tier Rating: Tier I
• Eco Series: Yes
• Energy Star® Qualified: No
• NSF Certified: Yes
• Automatic Temperature Controls: Yes
• Control Location: Top
• Control Type: Electronic Touch
• Status Light: Blue
• Built-In Water Softener: No
• Dishwasher Cycle Selection: Boost, Extended Soak, Heavy, Normal, Quick Wash
• Dishwasher Option Selections: Extended Dry, Heated Dry, Hi Temp Wash, Sani Rinse
• Dispensers: Detergent and Rinse Aid
• Drying System Type: Heating Element
• Last Cycle Recall: Yes
• Leak Detect: Yes
• Motor Horsepower: .075
• Number of Place Settings: 12
• Number of Racks: 2
• Number of Wash Levels: 4
• Number of Washarms: 2
• Rinse Aid Dispenser Level Indicator: Optical Level Indicator
• Sensor: No
• Sound Package: Quiet Pack™, Yes
• True Hold Door: No
• Tub Material: Plastic with Stainless Steel Door
• Tub Style: Built-in Tall Tub 24in.
• Wash System Type: Removable Filter
• Water Filtration: Yes
• Dishwasher Features: Boost Cycle
• Door Style: Flat
• Handle Type: Long Pocket
• Window: No
• Lower Rack Cushion-Tip Tines: No
• Lower Rack Fold-Down Tines: No
• Lower Rack Glides: Wheels
• Lower Rack Style: Straight
• Second Level Rack Adjustable: No
• Second Level Rack Cushion-Tip Tines: No
• Second Level Rack Fold-Down Tines: No
• Silverware Basket Covers: Yes
• Silverware Basket Location: Lower Rack - Right Side
• Silverware Basket Type: Full Length Non Splittable
• Depth: 24.5 in
• Depth With Door Open 90 Degree: 49.5 in
• Height: 33.5 in
• Maximum Height: 34.5 in
• Minimum Height: 33.5 in
• Width: 23.875 in
• Amps: 8.1
• Hz: 60
• Power Cord Included: No
• Volts: 120
• Number of Wash Cycles: 5
• Interior Light: No
• Appliance Color/Finish: Stainless steel
• Sub-Brand: Eco Series
• Manufacturer Color/Finish: Fingerprint Resistant Stainless Steel
• Tub Height: Tall
• Hose Length (Feet): 3
• Adjustable Height: No
• Custom Door Panel Included: No
• Junction Box Included: No
• Drain Hose Included: Yes
• Fill Hose Included: No
• Third Rack: No
• Removable Silverware Basket: Yes
• Removable Top Rack: Yes
• Automatic Temperature Control: Yes
• Self-Cleaning Filter: No
• Child Safety Locks: No
• Customizable: No
• Stemware Holder: No
• Direct Feed: Yes
• Voice Controlled: No
• Fingerprint-Resistant: Yes
• Fold-Down Tines: None
• Hard Food Disposer: No
• Removable Filter: Yes
• Hard Food Filtration: Yes
• Automatic Open: No
• Hub Required: No
• Panel Ready: No
• Lowe's Exclusive: No
• Enhanced Drying Cycle: Yes
• Pet Bowl Safe: No
• Enhanced Cleaning Cycle: Yes
• Cycle Status Lights: No
• Rinse Aid Dispenser Indicator: Yes
• 1/2-Rack Wash Option: No
• Rinse and Hold Cycle: No
• Advanced Sensor Wash Cycle: No
• Sensor Wash Cycle: No
• Bottle Wash Feature: No
• Steam Option: No
• Delay Wash: No
• Targeted Scouring Module: No
• Delay Wash Time (Hours): 0
• Targeted Silverware Wash Module: No
• Gentle Wash Cycle: No
• Unique/Exclusive Cycle(s): Boost Cycle, Sani Rinse
• Heavy/Pots and Pans Cycle: Yes
• Wash System: Triple Filtration Wash System
• Hi-Temp Wash Option: Yes
• Air Dry: Yes
• Normal Cycle: Yes
• Condensation Dry: Yes
• NSF Certified Sanitization Option: Yes
• Fan Assisted Dry: No
• Pre-Soak Cycle: Yes
• Heated/Hi-Temp Dry: Yes
• Quick Rinse Cycle: No
• Mineral Assisted Dry: No
• Safety Listing: UL safety listing
• App Compatibility: No
• Works with Android: No
• Bluetooth Compatibility: No
• Works with Apple HomeKit: No
• Matching Previous (Model #): WDF520PADM
• Works with iOS: No
• Smart Compatible: No
• Works with SmartThings: No
• Wi-Fi Compatibility: No
• Works with Sonos: No
• Works with Amazon Alexa: No
• Works with the Google Assistant: No
• Ample flatware slots: Yes
• Adjustable upper rack: No
• Adjustable tines: No
• Displays remaining time: No
• Interior material: Stainless steel and plastic
• Requires custom door panel: No
