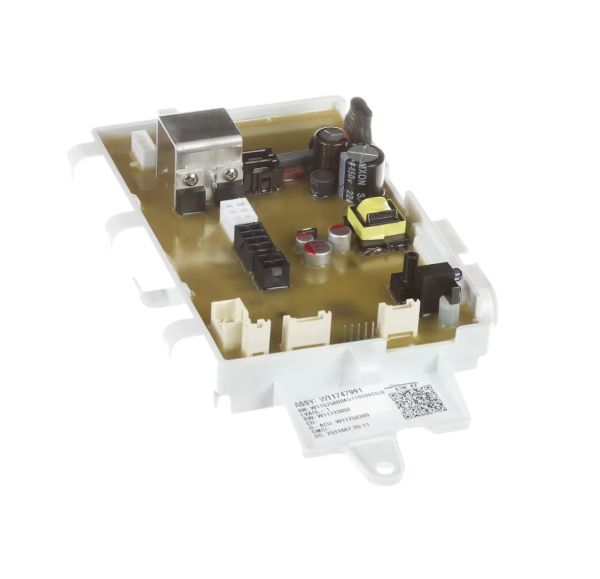

Whirlpool w11771769 Programmed Acu Control Assembly

Product Description

The WHIRLPOOL w11771769 is a programmed ACU (Appliance Control Unit) assembly designed as a direct OEM replacement control board for Whirlpool top-load washing machines. This assembly serves as the central electronic controller, managing wash cycles, motor operation, water level sensing, and user interface communication throughout the machine's operation. Installation is typically performed by appliance technicians or experienced trade professionals when the original control unit has failed, causing cycle errors, unresponsive controls, or complete loss of machine function.

This programmed ACU assembly is intended for use in residential top-load washing machines. The part number references the MVW6500 D1 platform, indicating fitment within that specific Whirlpool washer model series. Because this unit is factory-programmed, it is a plug-and-play replacement that does not require field programming after installation.

Key Features

• Factory-programmed for direct installation without additional configuration
• OEM replacement assembly maintaining original cycle logic and performance
• Controls wash cycle sequencing, motor functions, and water level management
• Designed for the MVW6500 D1 washer platform

Compatibility

Referenced in the input data for the MVW6500 D1 washer platform. Confirm full model and serial number compatibility against the original part number before installation.

Installation Notes

Disconnect power to the washing machine at the circuit breaker or by unplugging the unit before beginning any control board service. This type of replacement is typically performed by a qualified appliance technician familiar with electronic control assemblies. Retain all wiring harness connectors and mounting hardware from the original unit. Verify the replacement assembly matches the original part number exactly before installation to avoid compatibility issues.

Technical Specifications

• Part Type: Programmed ACU Control Assembly
• Application: Top-Load Washing Machine
• Platform: MVW6500 D1

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w11771769
