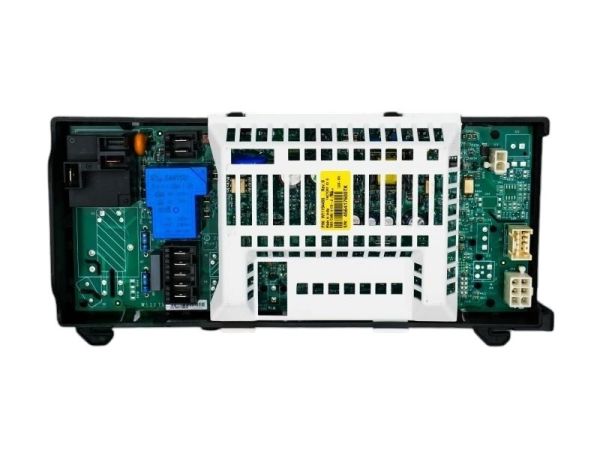

Whirlpool w11759050 Electronic Control Board

Product Description

The Whirlpool w11759050 is an electronic control board designed to serve as the central processing unit for compatible Whirlpool appliances. This board manages operational logic, input signals, and output commands that coordinate the functions of the appliance it governs. It is a direct OEM-style replacement part intended for installation by qualified appliance service technicians. The w11759050 is a solid-state assembly that interprets user input and sensor feedback to regulate cycles, timing, and component activation throughout normal appliance operation.

This electronic control board is suited for residential appliance applications where the original control board has failed, exhibits erratic behavior, or has been damaged. It is installed in the appliance control housing and interfaces with the wiring harness and user interface components. Service technicians performing diagnostics on cycle failures, unresponsive controls, or error-code faults will typically identify the control board as a replacement candidate after ruling out individual component failures.

Key Features

• OEM-style electronic control board for direct replacement
• Manages appliance cycle logic, timing, and component output signals
• Interfaces with existing wiring harness for simplified installation
• Solid-state construction for reliable operational control

Compatibility

Designed as an OEM-style replacement electronic control board for compatible Whirlpool appliances. Verify fitment against the appliance model number before ordering, as control boards are model-specific.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the appliance at the breaker or by unplugging the unit before removing any panels or handling the control board. Discharge any residual stored energy and handle the board carefully to avoid damage to solder joints or connector tabs. Consult the appliance service manual for panel removal sequence and wiring harness routing specific to the model being serviced.

Technical Specifications

• Component Type: Electronic Control Board

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w11759050
