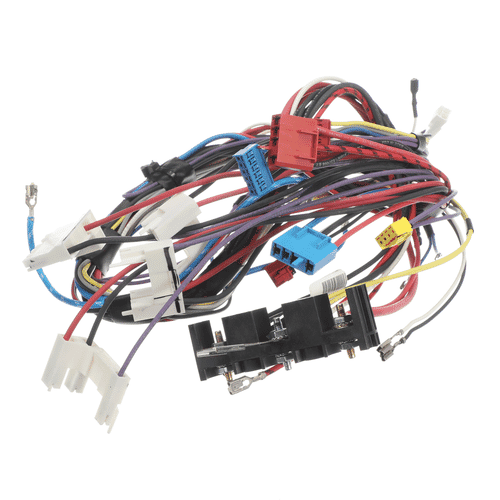

Whirlpool W11750773 Wire Harness

Product Description

The WHIRLPOOL W11750773 is a wire harness designed to restore electrical continuity within Whirlpool home appliances. A wire harness bundles and routes multiple conductors between components, ensuring reliable signal and power transmission throughout the unit. This part is a direct OEM replacement that maintains the original routing, connector types, and conductor gauges specified for the application. Licensed appliance technicians and qualified service professionals are the typical installers of this component.

This wire harness is suited for residential Whirlpool appliance service and repair. It is used when the original harness shows signs of heat damage, connector failure, chafing, or broken conductors that interrupt normal appliance operation. Replacing the harness restores proper communication and power flow between internal components.

Key Features

• OEM replacement wire harness maintaining original connector and conductor specifications
• Restores electrical continuity between appliance components
• Designed to match factory routing and fit for straightforward installation
• Suitable for residential Whirlpool appliance repair applications

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential home appliances. Consult the appliance model and service documentation to confirm fitment before ordering.

Installation Notes

Installation should be performed by a licensed appliance technician. Disconnect power to the appliance at the breaker or by unplugging the unit before beginning any service work. Route the new harness following the original factory path and secure all connectors fully before restoring power. Refer to the appliance service manual for connector locations and harness routing diagrams.

Technical Specifications

• Part Type: Wire Harness

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W11750773
