Whirlpool w11515049 Ui Jumper 48 Inch

Product Description

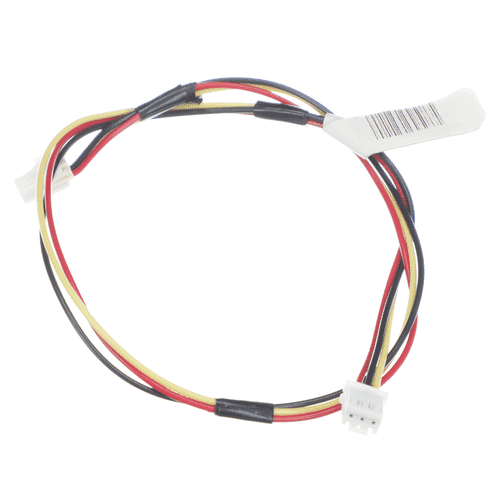

The Whirlpool w11515049 is a user interface jumper harness measuring 48 inches in length. It serves as an electrical interconnect between the main control board and the user interface panel in compatible Whirlpool appliances. This type of jumper harness carries low-voltage communication and control signals, allowing the control board and display panel to exchange data and commands. Installation is typically performed by appliance service technicians during control board or UI panel replacement procedures.

This jumper harness is suited for residential appliance service where the original wiring harness has failed, been damaged, or requires replacement as part of a broader control system repair. At 48 inches, the harness length accommodates standard routing paths within the appliance cabinet without requiring splicing or extension.

Key Features

• 48-inch harness length allows routing within standard appliance cabinet configurations
• OEM-replacement design maintains original connector fit and signal integrity
• Carries low-voltage UI communication signals between control board and display panel
• Direct plug-in connectors eliminate the need for splicing or soldering during installation

Compatibility

Designed as an OEM-style replacement UI jumper harness for compatible Whirlpool appliances requiring a 48-inch interface connector harness.

Installation Notes

Disconnect power to the appliance at the circuit breaker or by unplugging the unit before beginning any harness replacement work. A licensed appliance technician should perform this repair to ensure connectors are fully seated and routed away from heat sources or moving parts. Refer to the appliance service manual for correct harness routing and connector orientation. Do not force connectors — misaligned pins can damage the control board or UI panel.

Technical Specifications

• Harness Length: 48 inches

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w11515049
