Whirlpool W11476624 Control Box Wire Assembly

Product Description

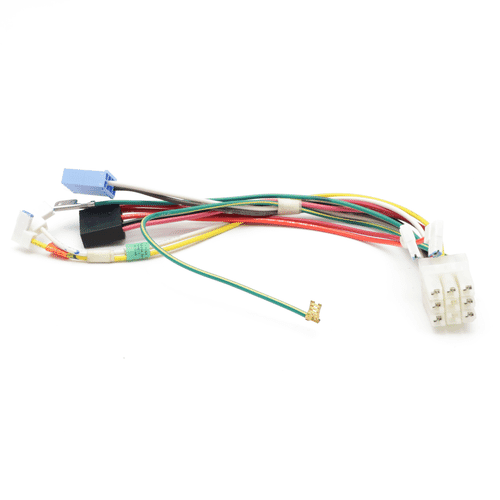

The WHIRLPOOL W11476624 is a control box wire assembly designed for use in refrigeration appliances. This wiring harness connects the control box to the unit's knob and internal components, providing the electrical pathway needed for proper operation of the refrigerator's controls. It is identified for use in systems operating with R-600a refrigerant, a common isobutane-based refrigerant found in modern household refrigerators. Installation is typically performed by a qualified appliance technician during a control system repair or component replacement service.

This wire assembly is suited for residential refrigerator applications, particularly units in the Pirah XL product family that use R-600a refrigerant. It serves as the electrical connection between the control box and the user-interface knob assembly. Technicians typically encounter this part during electrical fault diagnosis or when replacing a damaged or failed wiring harness in the control section of the appliance.

Key Features

• OEM-specified wire assembly for control box and knob interface connection
• Designed for R-600a refrigerant-compatible refrigerator platforms
• Direct factory replacement for original wiring harness
• Maintains original electrical routing and connection integrity

Compatibility

Designed as an OEM-style replacement wire assembly for Whirlpool residential refrigerators in the Pirah XL platform using R-600a refrigerant systems.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the refrigerator at the wall outlet or circuit breaker before handling any wiring components. When working on R-600a systems, be aware that R-600a is a flammable refrigerant and all relevant safety precautions for flammable refrigerant handling should be followed per applicable codes. Ensure all connectors are fully seated and no wiring is pinched during reassembly.

Technical Specifications

• Refrigerant Compatibility: R-600a
• Component Type: Wire Assembly
• Application: Control Box and Knob Interface

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W11476624
