Whirlpool w11466697 Console Wiring Harness Gas Range

Product Description

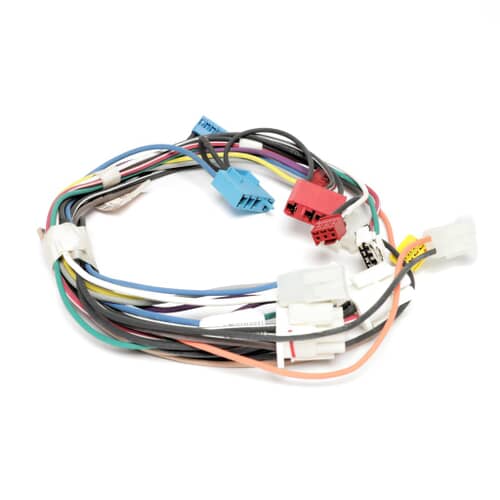

The WHIRLPOOL w11466697 is a console wiring harness designed for gas ranges equipped with pyrolytic self-clean and convection (FCQ) functionality. This harness connects the control console to the range's electrical system, routing low-voltage signals and power between the user interface, control board, and associated components. It is an OEM replacement part intended for installation by qualified appliance service technicians familiar with gas range electrical systems.

This harness is specific to gas range console assemblies that include pyrolytic self-clean capability. The LCX designation identifies the harness variant for the applicable console platform. It is typically found in residential freestanding or slide-in gas ranges where the control console houses the main user interface and is wired directly to the range control board.

Key Features

• OEM replacement console wiring harness for applicable WHIRLPOOL gas ranges
• Designed for pyrolytic self-clean range configurations
• Compatible with FCQ (convection) console platform variants
• LCX harness designation ensures correct connector and routing match for the console assembly
• Direct plug-in replacement minimizes installation time and reduces wiring errors

Compatibility

Designed as an OEM-style replacement console wiring harness for WHIRLPOOL gas ranges with pyrolytic self-clean and convection console configurations. Refer to your appliance model number and service documentation to confirm fitment before ordering.

Installation Notes

Installation should be performed by a licensed appliance technician or qualified service professional. Disconnect power to the range at the circuit breaker and shut off the gas supply before beginning any disassembly. Handle wiring connectors carefully to avoid damage to locking tabs, and route the replacement harness to match the original routing to prevent pinching or contact with heat sources. Refer to the manufacturer service manual for console disassembly procedures specific to the model being serviced.

Technical Specifications

• Part Type: Console Wiring Harness
• Fuel Type: Gas
• Self-Clean Type: Pyrolytic
• Console Platform: LCX FCQ

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w11466697
