Whirlpool w11353962 Door Hinge Acu Wiring Harness

Product Description

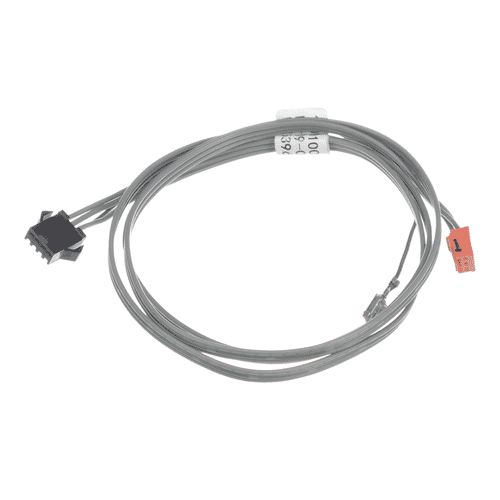

The WHIRLPOOL w11353962 is a factory-replacement wiring harness that routes electrical signals from the door hinge assembly to the appliance control unit (ACU). This harness carries the low-voltage communication and sensor signals that allow the control board to monitor door position and status. It is a direct OEM-specification component intended for appliance technicians and qualified service professionals performing electrical harness replacement on Whirlpool appliances.

This wiring harness is used in residential Whirlpool appliances where the door hinge assembly communicates with the main ACU. It is typically encountered during service calls involving door-related fault codes, intermittent control errors, or visible harness damage such as frayed insulation, broken connectors, or pinched wires at the hinge point. Replacing this harness restores proper signal continuity between the door assembly and the control unit.

Key Features

• OEM-specification replacement harness for precise fit and signal integrity
• Connects door hinge assembly directly to the appliance control unit
• Designed to carry low-voltage communication and sensor signals
• Factory-matched connector ends for direct plug-in replacement
• Restores door status monitoring and control board communication

Compatibility

Designed as an OEM-style replacement wiring harness for Whirlpool appliances requiring a door hinge to ACU harness connection.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the appliance at the wall outlet or circuit breaker before beginning any harness replacement. Route the new harness along the original path, taking care to avoid pinch points at the hinge area. Secure all connectors fully before restoring power and testing door status functions.

Technical Specifications

• Component Type: Wiring Harness
• Function: Door Hinge to ACU Signal Routing

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w11353962
